Description

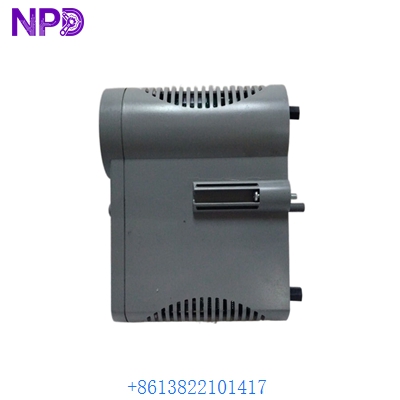

The HONEYWELL CC-IP0101 (Part Number 51410056-175) is a high-density Input/Output Termination Assembly (IOTA) designed for the Experion PKS Series C system. It facilitates the physical connection between field wiring and the C300 controller’s I/O modules, providing a stable and organized interface for industrial process signals.
Technical Parameters
- Model: CC-IP0101
- Part Number: 51410056-175
- Module Type: 16-Channel Differential Analog Input (AI) IOTA
- Series: Series C I/O
- Coating: G3 Conformal Coating (Standard for harsh environments)
Product Specifications
- Mounting: Vertical or Horizontal Carrier
- Weight: 0.65 kg
- Terminals: Compression or Screw-type field terminals
- Redundancy: Supports non-redundant and redundant configurations
- Voltage: 24V DC Field Power distribution
Application Fields
- Experion PKS (Process Knowledge System) C300 Control
- Oil and Gas Refinery Automation
- Chemical Batch Processing
- Power Plant Data Acquisition
Origin & Operating Requirements
- Origin: USA / Global Honeywell Facilities
- Temperature: 0°C to 60°C (Operating)
- Humidity: 5% to 95% RH (Non-condensing)
- Installation: Must be mounted on a Series C I/O carrier with proper grounding
Q&A
- Q: Does this IOTA support HART communication?
- A: Yes, it is designed to work with HART-capable Analog Input modules for smart instrument integration.
- Q: What is the difference between the -175 and older versions?
- A: The -175 suffix typically denotes a specific hardware revision or the presence of conformal coating for corrosion resistance.
- Q: Can field wires be connected while the system is live?
- A: While the IOTA is passive, field wiring should be handled according to site safety protocols to avoid signal interference.
