Description

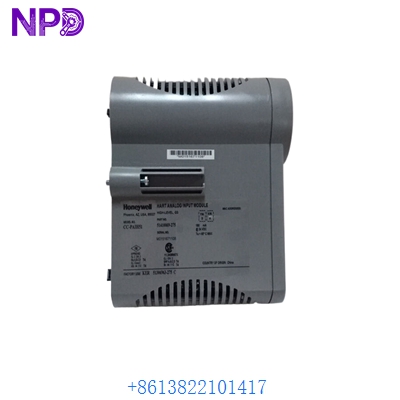

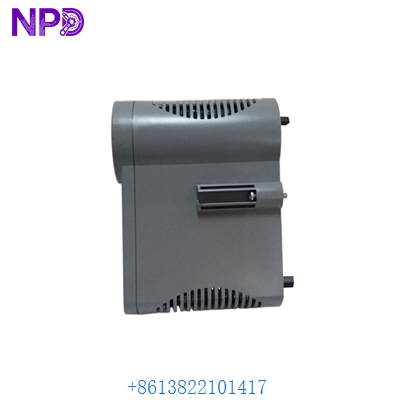

The HONEYWELL CC-PAIH51 51410069-275 is a high-performance 16-channel Analog Input (AI) module designed for the Experion Process Knowledge System (PKS) C300 controller environment. It provides precision signal conditioning and digital conversion for standard industrial process sensors, ensuring accurate data integration into the distributed control system.
Product Parameters
- Model: CC-PAIH51
- Part Number: 51410069-275
- Input Channels: 16 Differential Channels
- Signal Range: 4-20 mA / 1-5 V DC
- A/D Resolution: 16-bit
- Power Supply: 24V DC via IOTA
Product Specifications
- Module Type: High Level Analog Input (HLAI)
- HART Support: Integrated HART protocol communication on all channels
- Mounting: Requires Series C I/O Termination Assembly (IOTA)
- Isolation: Channel-to-channel and channel-to-common isolation
- Operating Temp: -40°C to +70°C (standard industrial rating)
- Weight: 0.45 kg
CC-PAIH51
Application Fields
- Oil and gas refinery process monitoring
- Chemical plant temperature and pressure loops
- Power generation boiler control systems
- Pharmaceutical batch processing
- Water and wastewater telemetry integration
Q&A
Q: Does this module support HART instrument diagnostics? A: Yes, it allows for the pass-through of HART digital data, enabling remote configuration and health monitoring of field devices.
Q: Can it be used in redundant configurations? A: Yes, it supports fully redundant I/O operation when paired with the appropriate redundant IOTA and a secondary module.
Q: Is there a difference between CC-PAIH51 and CC-PAIH01? A: The PAIH51 is a newer revision often featuring improved components or firmware for higher reliability and better HART performance compared to earlier versions.
Enhance your C300 system with the HONEYWELL CC-PAIH51 analog input module for reliable process data.
