Description
Product Description

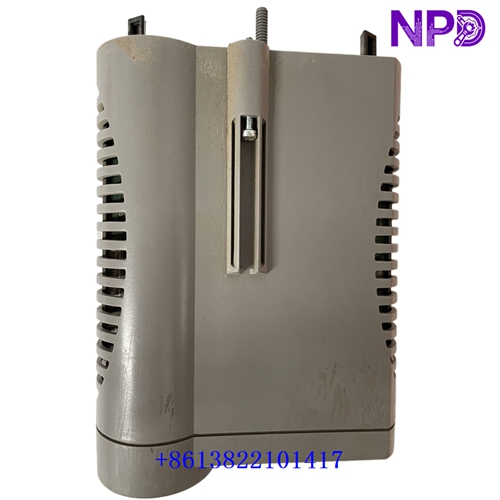

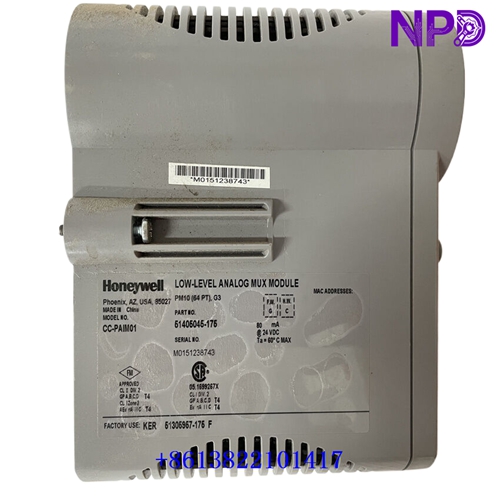

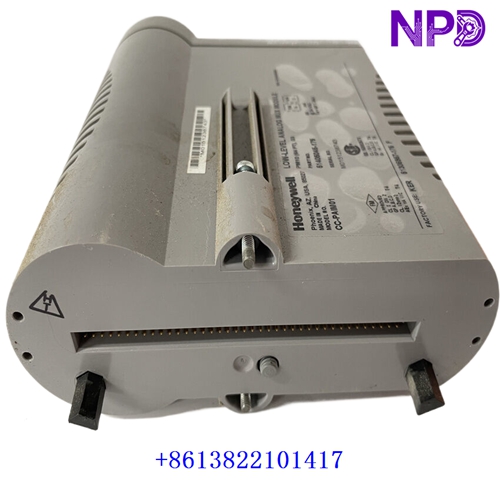

The Honeywell CC-PAIM01 (51405045-175) is a Low-Level Analog Input Multiplexer (LLMUX) module for the Experion PKS Series C distributed control system. It is designed to acquire low-level process measurements from thermocouples (TC) and resistance temperature detectors (RTDs). Using compatible Honeywell Process Manager I/O termination and field termination assemblies, the module supports multiplexed temperature inputs and provides isolation between input channels and system circuits. Features include cold-junction compensation for thermocouple measurements, open-thermocouple detection, configurable input monitoring, and diagnostic functions. It is suitable for industrial temperature monitoring and process measurement applications.
CC-PAIM01
Product Parameters and Datasheet
Brand: Honeywell
Model: CC-PAIM01
Part Number: 51405045-175
Series: Experion PKS Series C I/O
Product Name: Low-Level Analog Input Multiplexer (LLMUX)
Product Type: Temperature Input Module
Input Types: Thermocouples, RTDs, and supported millivolt signals
Input Capacity: Up to 64 channels in compatible multiplexed configurations
Channel Configuration: 16-channel increments through compatible field termination assemblies
Thermocouple Input Range: -20 to +100 mV nominal
Thermocouple Input Impedance: 1 MΩ at DC
Input Scan Rate: 1 second, fixed by the I/O module
Channel Bandwidth: 0 to 4.7 Hz (-3 dB)
Maximum Thermocouple Normal-Mode Input: -10 to +10 V
RTD Normal-Mode Input Limit: -1 to +2 V at 100 mA, as specified in the technical documentation
Temperature Stability: ±20 ppm/°C maximum for thermocouple/mV and RTD inputs
Long-Term Drift: 500 ppm
Cold-Junction Reference Accuracy: ±1.0°C from 0°C to +50°C; ±1.5°C from -20°C to +60°C
Operating Temperature: 0°C to +60°C for the CC-PAIM01
Compatible Field Termination Assemblies: MU-TAMR04, MU-TAMT04, MU-TAMT14, subject to configuration
Place of Manufacture: Not confirmed for the individual unit
Product Status: Confirm availability and condition with supplier
Dimensions: Verify using the applicable Series C hardware documentation
Weight: Not confirmed
Country of Origin: Verify the product label and shipping documents
Power Requirements: Refer to the Series C I/O installation specifications
Discontinued: Confirm current lifecycle status with Honeywell
Recommended Honeywell Models
1. CC-PAIL51 – Low-level analog input module for temperature measurement.
2. CC-PAIN01 – High-level analog input module without HART.
3. CC-PAIX01 – High-level analog input module for compatible Series C systems.
4. CC-PAIX02 – Updated high-level analog input module.
5. CC-PAIH01 – Analog input module with HART support.
6. CC-PAIH02 – HART analog input module for supported configurations.
7. CC-PAIH51 – Series C HART analog input module.
8. CC-PAON01 – 16-channel non-HART analog output module.
9. CC-PAOX01 – Analog output module without HART.
10. CC-PAOH01 – Analog output module with HART.
11. CC-PAOH51 – Series C HART analog output module.
12. CC-TAIM01 – Compatible termination assembly option; confirm the required configuration.
13. CC-TAIL51 – Termination assembly for the CC-PAIL51 module.
14. CC-PCNT01 – C300 controller module for Experion PKS.
15. CC-PDIL01 – 32-channel digital input module.
Compatibility Note: The CC-PAIM01 is a low-level temperature input multiplexer, not a conventional 4–20 mA high-level analog input module. Confirm the intended sensor type, channel capacity, field termination assembly, and Series C system configuration before ordering or replacing the module.
