Description

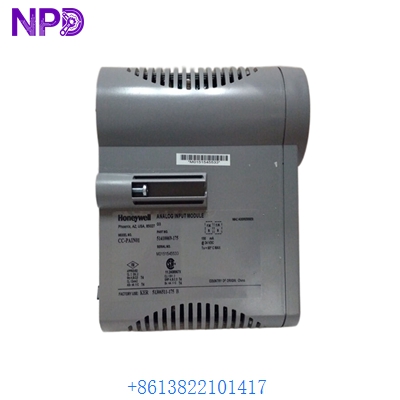

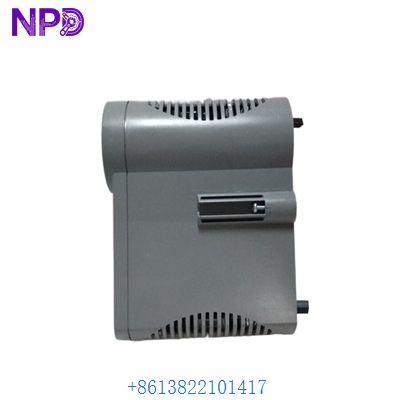

The HONEYWELL CC-PAIN01 (Part Number 51410069-175) is a high-performance Analog Input module designed for the Experion PKS Series C system. This module provides 16 channels of high-level analog input, typically used to interface with field transmitters for pressure, flow, and level monitoring in a C300 controller environment.
Technical Parameters
- Model: CC-PAIN01
- Part Number: 51410069-175
- Input Channels: 16 Channels
- Input Type: 4-20 mA or 1-5 VDC
- Resolution: 16-bit A/D conversion
- Isolation: Galvanic isolation between field and system logic
Product Specifications
- Module Color: Blue (Standard Series C identification)
- Weight: 0.45 kg
- Coating: G3 Conformal Coating for harsh environment protection
- Power Supply: 24V DC via IOTA
- Communication: High-speed Series C I/O link
Application Fields
- Refinery and Petrochemical Process Control
- Advanced Thermal Power Plant Monitoring
- Pharmaceutical Batch Control
- Water and Wastewater Management
Origin & Operating Requirements
- Origin: USA / Global Honeywell Facilities
- Temperature: 0°C to 60°C (Operating)
- Humidity: 5% to 95% Non-condensing
- Installation: Must be seated on a compatible IOTA (e.g., CC-TAIN01 or CC-TAIN11)
Q&A
- Q: Does this module support HART communication?
- A: The CC-PAIN01 is a non-HART analog input module; for HART functionality, the CC-PAIH01 is required.
- Q: Can this module be hot-swapped?
- A: Yes, Series C modules support hot-plugging into the IOTA while the system is powered.
- Q: What is the significance of the -175 suffix?
- A: It indicates a specific hardware revision level, often including improved component longevity or G3 coating.
