1. Product Description
The Honeywell CC-PAIX02 is a Series C high-level analog input module for the Experion PKS distributed control system. It acquires voltage and current signals from field transmitters and sensors for industrial process monitoring and control. The module provides 16-bit analog-to-digital conversion, self-diagnostics, fast scanning, and optional system redundancy when used with compatible hardware. Typical applications include pressure, flow, level, and other process measurements.
CC-PAIX02
2. Product Parameters and Datasheet
• Brand: Honeywell
• Model: CC-PAIX02
• Part Number: 51405038-475 (verify against the module label)
• Series: Experion PKS Series C I/O
• Product Name: High-Level Analog Input Module
• Input Channels: 16 (12 single-ended and 4 differential, subject to configuration)
• Input Types: Voltage and current from compatible 2-wire or self-powered transmitters
• Input Ranges: 0–5 V, 1–5 V, 0.4–2 V, and 4–20 mA through a 250 Ω resistor
• A/D Resolution: 16 bit
• Input Scan Rate: 50 ms
• Common-Mode Rejection: 70 dB (DC to 60 Hz, specified test conditions)
• Typical Hardware Accuracy: ±0.075% of full scale near 23.5°C; refer to the manufacturer specification for operating-temperature limits
• Compatible IOTA Options: CC-TAIX01 / CC-TAIX11, CC-GAIX21 / CC-GAIX11, CC-TAID01 / CC-TAID11; confirm wiring and redundancy requirements
• Place of Manufacture: Not confirmed; check product label
• Product Status: Confirm with seller; new, open-box, or used condition may vary
• Dimensions: Verify by hardware revision and packaging
• Weight: Verify by hardware revision and packaging
• Country of Origin: Check nameplate or shipping documentation
• Power Requirements: Supplied through the compatible Series C I/O assembly; confirm system configuration in the installation documentation
• Discontinued: Current lifecycle status not confirmed
3. Recommended Honeywell Models
• CC-PAIH02 — Differential/Single-Ended Analog Input Module with HART
• CC-PAIN01 — Analog Input Module
• CC-PAON01 — Analog Output Module
• CC-PAOH51 — Analog Output Module with HART
• CC-PDIL01 — Digital Input Module
• CC-PDOD01 — Digital Output Module
• CC-TDIL01 — Digital Input Termination Assembly
• CC-TDOD01 — Digital Output Termination Assembly
• CC-TAIX01 — Analog Input IOTA, non-redundant configuration
• CC-TAIX11 — Analog Input IOTA, redundant configuration

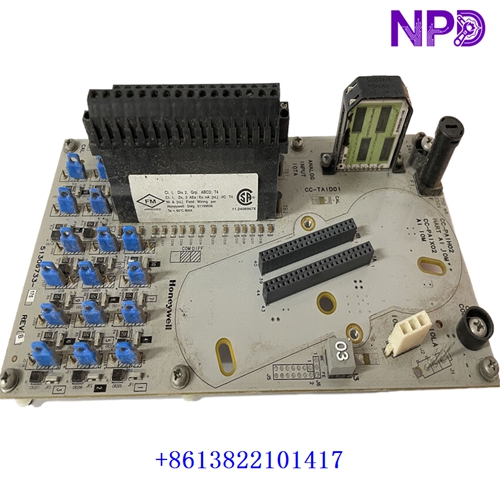

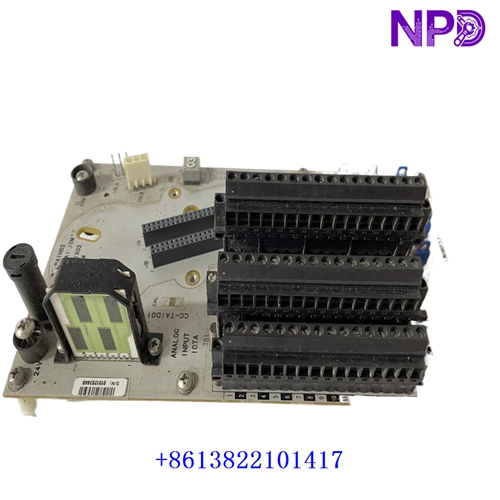

• CC-TAID01 — Differential Analog Input IOTA, non-redundant configuration
