Description

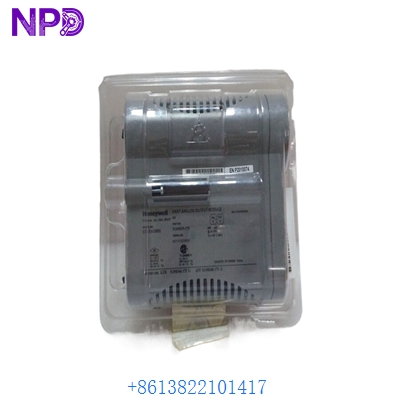

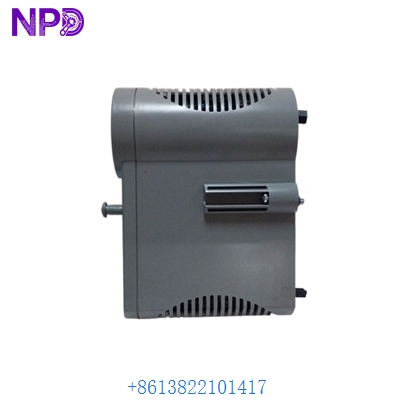

The HONEYWELL CC-PAOH01 (Part Number 51405039-175) is a high-performance Analog Output module with HART communication capabilities, designed for the Experion PKS Series C system. It provides 16 channels of 4-20 mA output signals to control field devices such as valves and actuators, while enabling digital communication with smart instruments.
Technical Parameters
- Model: CC-PAOH01
- Part Number: 51405039-175
- Output Channels: 16 Channels
- Signal Range: 4-20 mA DC
- HART Support: Integrated HART modem per channel
- Resolution: 12-bit D/A conversion
Product Specifications
- Module Color: Blue (Standard Series C identification)
- Weight: 0.48 kg
- Coating: G3 Conformal Coating (Standard for corrosion resistance)
- Power Supply: 24V DC via IOTA
- Isolation: Individual channel-to-system galvanic isolation
Application Fields
- Control Valve Positioning in Refineries
- Chemical Reactor Feed Rate Control
- Variable Speed Drive (VSD) Speed Reference
- Critical Process Loop Modulation
Origin & Operating Requirements
- Origin: USA / Global Honeywell Facilities
- Temperature: 0°C to 60°C (Operating)
- Humidity: 5% to 95% Non-condensing
- Installation: Must be seated on a compatible IOTA (e.g., CC-TAOX01 or CC-TAOX11)
Q&A
- Q: Can this module monitor the health of field valves?
- A: Yes, through HART communication, it can retrieve diagnostics like valve travel and friction data.
- Q: Is this module redundant?
- A: It supports redundancy when paired with a redundant IOTA and a second CC-PAOH01 module.
- Q: What is the maximum load resistance per channel?
- A: It typically supports up to 600 Ohms at 20 mA.
