Product Description

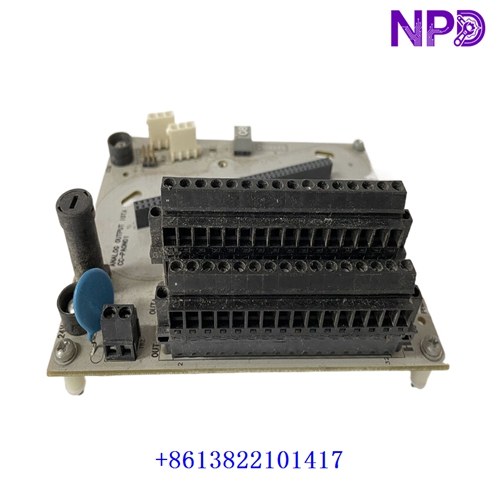

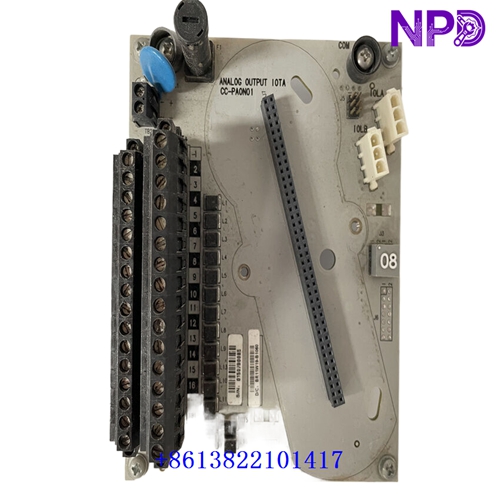

The Honeywell CC-PAON01 is a 16-channel high-level analog output module designed for the Experion PKS Series C control system. It converts controller commands into 4–20 mA current signals for field devices such as control valves, actuators, and recording instruments. Key features include output readback, open-wire detection, self-diagnostics, optional redundancy, and configurable per-channel fail-state behavior. This is a non-HART analog output model. Compatible IOTA selection and system configuration should be verified before installation or replacement.
CC-PAON01
Product Parameters and Datasheet
Brand: Honeywell
Model: CC-PAON01
Part Number: 51410070-175
Series: Experion PKS Series C I/O
Product Name: High-Level Analog Output Module
Product Type: Analog Output (AO) Module
Number of Channels: 16
Output Signal: 4–20 mA
HART Support: No
Directly Settable Output Current: 0 mA; 2.9–21.1 mA
Maximum Resistive Load: 800 Ω under specified supply conditions
Maximum Output Compliance Voltage: 16 V
Maximum Open-Circuit Voltage: 22 V
Calibrated Accuracy: ±0.35% of full scale at 25°C, including linearity
Output Current Linearity: ±0.05% of full scale nominal
Response Time: Within 80 ms to settle within 1% of final value
Output Ripple: Less than 100 mV peak-to-peak at power-line frequency across a 250 Ω load
Temperature Drift: 0.005% of full scale/°C
Compatible IOTA: CC-TAON01 (non-redundant); CC-TAON11 (redundant)
Place of Manufacture: Not confirmed for the individual unit
Product Status: Confirm with supplier
Dimensions: Verify using the applicable Series C hardware documentation
Weight: Not confirmed
Country of Origin: Verify product label and shipping documentation
Power Requirements: Verify module and IOTA requirements in the system manual
Discontinued: Confirm current lifecycle status with supplier
Recommended Honeywell Models
1. CC-PAOX01 – 16-channel analog output module without HART.
2. CC-PAOH01 – 16-channel analog output module with HART.
3. CC-PAOH51 – Series C analog output module with HART.
4. CC-PAON01 – 16-channel non-HART analog output module.
5. CC-TAON01 – IOTA for non-redundant CC-PAON01 installations.
6. CC-TAON11 – IOTA for redundant CC-PAON01 installations.
7. CC-PAIN01 – High-level analog input module without HART.
8. CC-PAIX01 – High-level analog input module.
9. CC-PAIH01 – Analog input module with HART.
10. CC-PAIH02 – Updated HART analog input module.
11. CC-PAIX02 – Updated high-level analog input module.
12. CC-PDIL01 – 32-channel, 24 VDC digital input module.
13. CC-PDOB01 – 32-channel digital output module.
14. CC-PUIO01 – Universal input/output module.
15. CC-PUIO31 – Universal input/output module for supported Series C configurations.
Compatibility Note: Confirm the IOTA model, redundancy arrangement, firmware and controller configuration before replacing or substituting an I/O module. The recommended models are related Honeywell products, not all direct replacements.
