Description

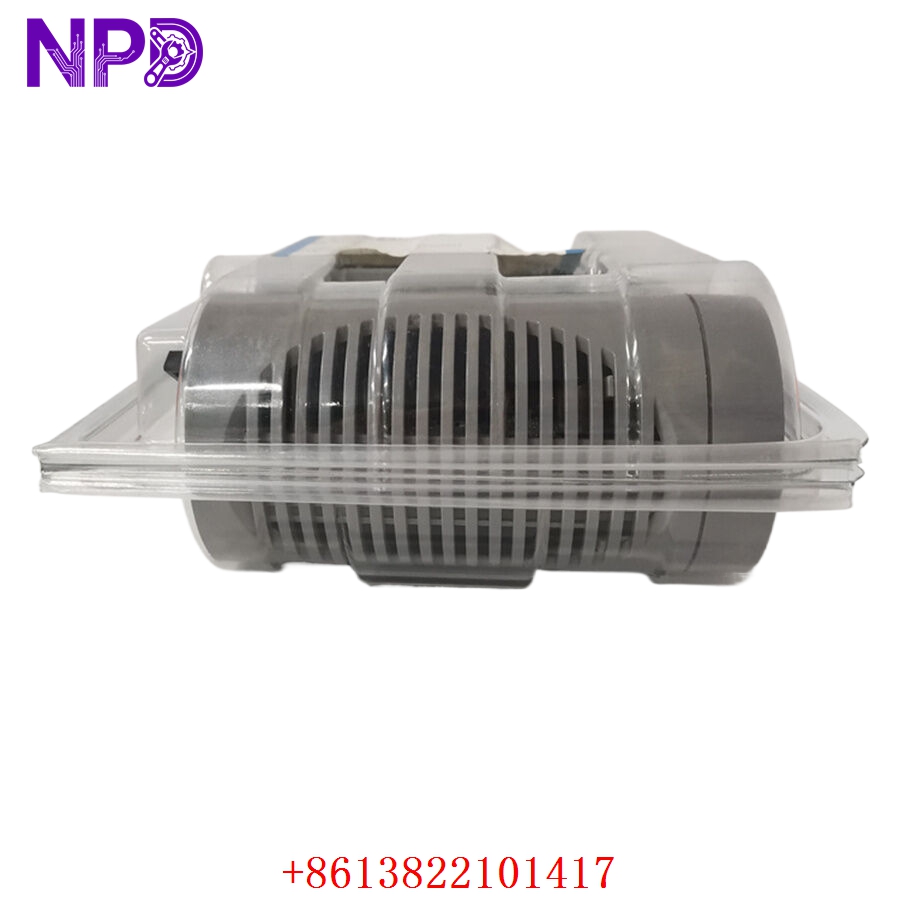

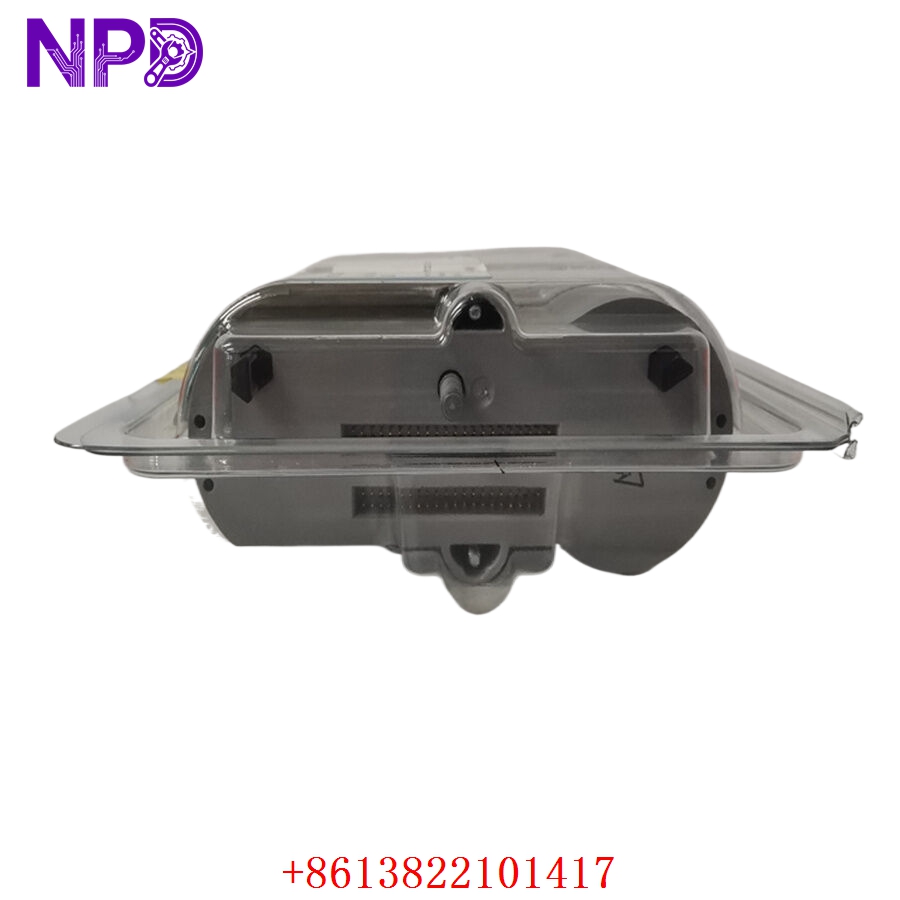

- Model: Honeywell CC-PAOX01
- Brand: Honeywell
- Series: Experion PKS / C300 Process Control Platform
- Core Function: Converts controller commands into analog output signals for field devices
- Product Type: Analog Output Module (AO Module)
- Key Specs: 4–20 mA output, redundant architecture support, cabinet-mounted I/O interface
- Module Type: Analog Output Module
- System Compatibility: Honeywell Experion PKS / C300 architecture
- Output Signal Type: 4–20 mA analog current output
- Output Channels: Multiple isolated AO channels (system dependent)
- Signal Resolution: High-resolution industrial analog output processing
- Output Isolation: Channel-to-channel isolation supported
- Power Supply: Backplane powered through IOTA assembly
- Communication Interface: Redundant control network compatible
- Mounting Method: Cabinet/rack installation
- Operating Temperature: 0 °C to 60 °C
- Storage Temperature: -40 °C to 85 °C
- Humidity Range: 5%–95% non-condensing
- EMC Compliance: Industrial noise immunity design
- Diagnostic Features: Channel fault and loop diagnostics
- Typical Applications: Valve positioning, VFD control, actuator command output
Installation & Configuration Guide
Stage 1: Pre-Installation Preparation (Approx. 15 minutes)
⚠️ Before replacing any analog output module, confirm process loops are in manual mode.
- Notify operations and maintenance teams
- Place affected control loops into manual control
- Isolate cabinet power if hot swap is not permitted by site SOP
- Confirm safe process condition before disconnecting outputs
Required tools:
- Anti-static wrist strap
- Fluke 115 multimeter
- Loop calibrator (4–20 mA verification)
- Terminal labels and marker
- Engineering workstation access
Backup checklist:
- Save current Experion configuration database
- Record output scaling parameters
- Photograph terminal wiring
- Verify controller redundancy health status
