Description

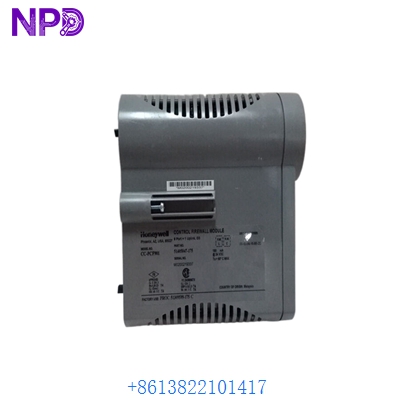

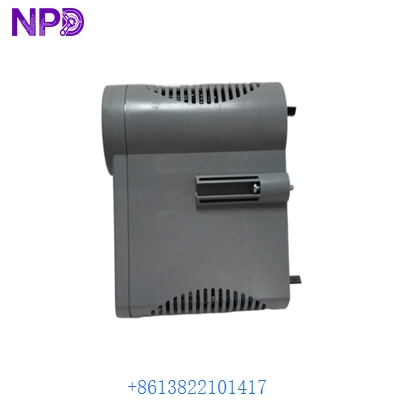

The HONEYWELL CC-PCF901 51405047-175 is a specialized Fieldbus Interface Module (FIM) designed for the Experion Process Knowledge System (PKS) Series C hardware. It provides a high-speed communication gateway between the C300 controller and FOUNDATION Fieldbus (FF) H1 segments, enabling advanced digital integration of field instrumentation.
Product Parameters
- Model: CC-PCF901
- Part Number: 51405047-175
- Network Protocol: FOUNDATION Fieldbus H1
- Number of Segments: 4 Channels (H1 segments) per module
- Input Voltage: 24V DC via IOTA
- Baud Rate: 31.25 kbit/s per H1 segment
Product Specifications
- Module Type: Fieldbus Interface Module (FIM4)
- Redundancy: Supports 1:1 hardware redundancy
- Mounting: Series C I/O Termination Assembly (IOTA)
- Diagnostics: Internal module health and segment status monitoring
- Max Devices: Supports up to 16 devices per segment (depending on power/bandwidth)
- Weight: 0.52 kg
Application Fields
- Smart field device management in refineries
- Advanced diagnostic monitoring for chemical plants
- Digital instrumentation loops in pharmaceutical manufacturing
- Large-scale power generation control systems
- Distributed H1 segment control for water treatment
Q&A
Q: How many H1 segments does one CC-PCF901 support? A: This module supports 4 independent FOUNDATION Fieldbus H1 segments.
Q: Can this module provide power to the Fieldbus segments? A: No, the CC-PCF901 handles communication; segment power must be provided by a separate dedicated Fieldbus Power Supply.
Q: Is it compatible with the C200 controller? A: This specific Series C form factor is designed for integration with the C300 controller and Series C IOTA architecture.
Optimize your digital field architecture with the HONEYWELL CC-PCF901 fieldbus interface.
