Description
Product Description

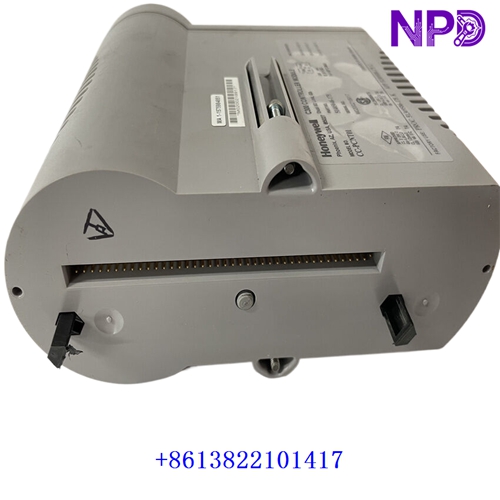

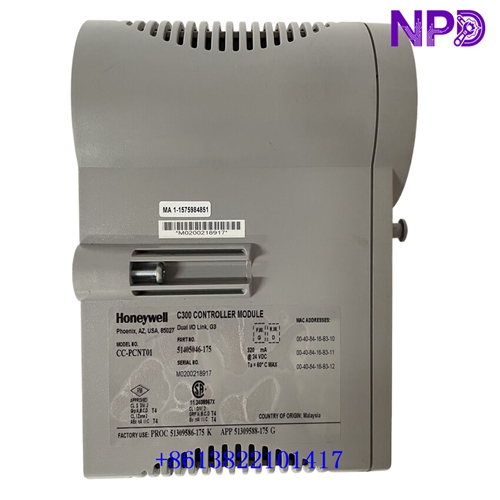

The Honeywell CC-PCNT01 is a C300 controller module designed for the Experion PKS distributed control system (DCS). It executes configured process-control strategies through the Control Execution Environment (CEE), coordinates communication with compatible Series C I/O modules, and exchanges control data with the Experion system over Fault Tolerant Ethernet (FTE). The controller supports two I/O links and can be used in supported redundant controller configurations. It mounts on a compatible Input/Output Termination Assembly (IOTA) and is used in process automation applications such as power generation, refining, chemical processing, and other continuous-production industries.
Product Parameters and Datasheet
Brand: Honeywell
Model: CC-PCNT01
Part Number: 51405046-175 (verify the complete order code on the unit)
Series: Experion PKS C300 / Series C
Product Name: C300 Controller Module
Product Type: Distributed Process Controller
Control Environment: Control Execution Environment (CEE)
Communication Network: Fault Tolerant Ethernet (FTE)
I/O Links: 2
I/O Compatibility: Supported Series C I/O; other I/O architectures depend on system configuration
Redundancy: Supported with compatible controller, IOTA, and system configuration
Mounting: Compatible IOTA assembly
Supply Rating: 24 VDC, approximately 0.311 A; confirm against the specific module label
Operating Temperature: Confirm the applicable hardware manual and system installation conditions
Dimensions: Verify against the applicable hardware documentation
Weight: Approximately 0.48 kg reported by some suppliers; verify the actual unit
Place of Manufacture: Varies by unit; check the nameplate
Country of Origin: Verify the unit label
Product Status: Legacy controller; confirm availability and revision
Discontinued: Confirm current lifecycle and migration status with Honeywell or the supplier
Recommended Honeywell Models
1. CC-PCNT02 – C300 controller model identified as a replacement option for CC-PCNT01; confirm migration requirements.
2. CC-PCNT05 – Newer C300 controller model associated with current migration paths; verify system compatibility.
3. CC-PWRB01 – C300 controller power module.
4. CC-PDIL01 – Series C digital input module.
5. CC-PDIS01 – Series C digital input module; verify application requirements.
6. CC-PDOB01 – Series C digital output module.
7. CC-PAIH01 – High-level analog input module with HART.
8. CC-PAIX01 – High-level analog input module.
9. CC-PAON01 – High-level analog output module without HART.
10. CC-PAOX01 – Analog output module without HART.
11. CC-PAOH01 – Analog output module with HART.
12. CC-TAIX11 – Series C analog input termination assembly; verify the specific I/O configuration.
13. CC-TAOX11 – Series C analog output termination assembly; verify the specific I/O configuration.
14. CC-PCF901 – Control firewall module used in supported Experion configurations.
15. CC-TCNT01 – Related Honeywell controller/I/O family model; confirm its exact function and compatibility before selection.
Compatibility Note: The CC-PCNT01 is a controller, not an analog or digital I/O card. Before replacement or migration, verify the controller part number, IOTA, Experion software release, firmware, I/O-link configuration, and redundancy requirements.
