Description

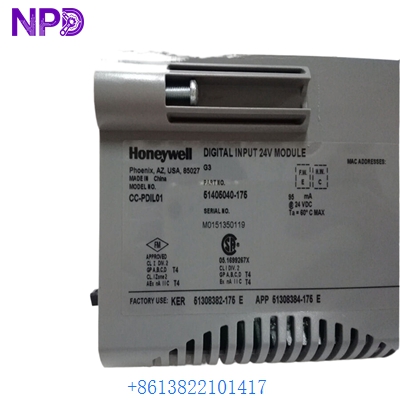

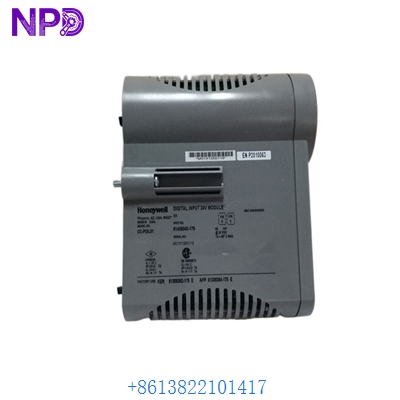

The CC-PDIL01 (Part Number 51405040-175) is a high-density digital input module designed for the Honeywell Experion PKS Series C system, providing 32 channels of discrete signal monitoring for industrial automation and process safety applications.
Technical Parameters
- Model Number: CC-PDIL01 / 51405040-175
- Input Channels: 32 Channels
- Input Voltage: 24V DC (Nominal)
- Input Type: Sink/Source (depending on IOTA wiring)
- Isolation: Galvanic isolation between field and system logic
- Scan Rate: 1 ms for SOE (Sequence of Events) recording
Dimensions & Weight
- Width: 45 mm
- Height: 120 mm
- Depth: 115 mm
- Net Weight: 0.42 kg (0.93 lbs)
Environmental Certifications
- Compliance: CE Marked, CSA Certified
- Hazardous Area: Class I, Division 2 / ATEX Zone 2
- Operating Temp: -40°C to +70°C (-40°F to +158°F)
- Coating: G3 Conformal coating for protection against corrosive environments
Application Fields
- Status monitoring of switches and pushbuttons
- Motor starter and circuit breaker feedback
- Safety interlock and alarm systems
- Sequence of Events (SOE) data acquisition
Product Q&A
- Q: Does this module support Sequence of Events (SOE)?
- A: Yes, the CC-PDIL01 supports SOE with 1 ms resolution for precise event logging.
- Q: Is the 51405040-175 compatible with redundant configurations?
- A: Yes, it supports redundant operation when installed on a redundant IOTA (Input Output Termination Assembly).
- Q: Can this module detect line faults like open or short circuits?
- A: Line monitoring features depend on the specific IOTA and field wiring configuration used with this module.
