Description

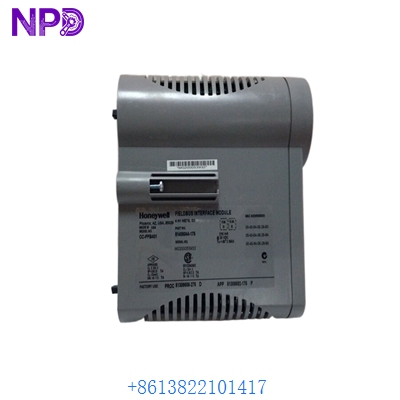

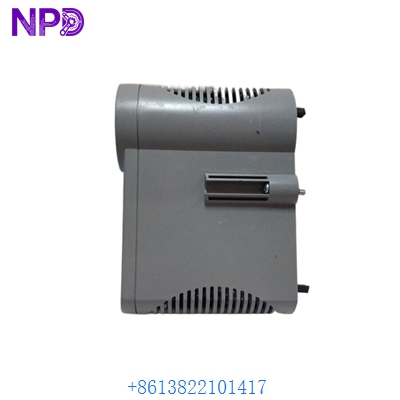

The HONEYWELL CC-PFB401 51405044-175 is a specialized Fieldbus Interface Module (FIM) designed for the Experion Process Knowledge System (PKS) Series C architecture. It serves as a high-speed communication bridge between the C300 controller and FOUNDATION Fieldbus (FF) H1 network segments, allowing for advanced digital control and instrumentation management.
Product Parameters
- Model: CC-PFB401
- Part Number: 51405044-175
- Network Protocol: FOUNDATION Fieldbus H1
- Input Voltage: 24V DC (via IOTA)
- Baud Rate: 31.25 kbit/s (standard H1 rate)
- Module Type: Fieldbus Interface (FIM2)
Product Specifications
- Capacity: Supports up to 2 independent H1 segments
- Mounting: Attaches to Series C I/O Termination Assembly (IOTA)
- Redundancy: Supports 1:1 hardware redundancy for high availability
- Diagnostics: Real-time segment health monitoring and module status LEDs
- Operating Temperature: -40°C to +70°C
- Weight: 0.49 kg
Application Fields
- Advanced process control in oil and gas refineries
- Digital instrumentation loops in chemical manufacturing
- Smart valve and transmitter integration in power plants
- High-precision pharmaceutical batch processing
- Distributed control for large-scale water treatment facilities
Q&A
Q: How many segments does the CC-PFB401 support compared to the CC-PCF901? A: The CC-PFB401 (FIM2) supports 2 segments, while the CC-PCF901 (FIM4) supports 4 segments.
Q: Does this module provide power to the Fieldbus devices? A: No, the module handles communication only; a separate Fieldbus Power Supply is required to power the devices on the H1 segment.
Q: Is it possible to swap this module while the system is running? A: Yes, in a redundant configuration, the module is hot-swappable without interrupting process control.
Upgrade your digital plant network with the HONEYWELL CC-PFB401 fieldbus interface module.
