Description

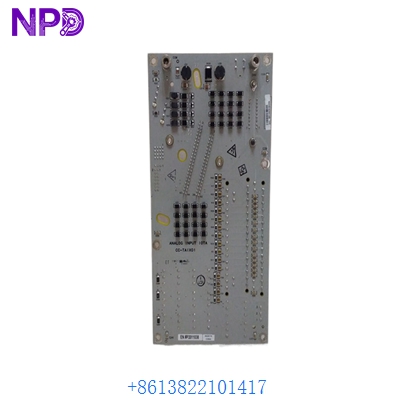

The HONEYWELL CC-TAID01 (Part Number 51306733-175) is a specialized Input/Output Termination Assembly (IOTA) designed for the Experion PKS Series C system. It provides the physical mounting base and wiring terminals for 16-channel differential Analog Input modules, facilitating the connection between field sensors and the C300 control architecture.
Technical Parameters
- Model: CC-TAID01
- Part Number: 51306733-175
- Channels: 16 Differential Channels
- Module Compatibility: CC-PAIN01 / CC-PAIH01 (Analog Input)
- Redundancy: Supports non-redundant configurations (Single Module)
Product Specifications
- Mounting: Standard Series C Carrier (Vertical or Horizontal)
- Weight: 0.58 kg
- Terminal Type: Compression-style or Screw terminal blocks
- Coating: G3 Conformal Coating for environmental protection
- Dimensions: 4.5 inches wide (Standard Series C IOTA footprint)
Application Fields
- Differential Signal Processing in Oil & Gas
- High-Accuracy Pressure and Flow Monitoring
- Chemical Reactor Temperature Arrays
- Power Plant Instrumentation Interfacing
Origin & Operating Requirements
- Origin: USA / Global Honeywell Facilities
- Temperature: 0°C to 60°C (Operating)
- Humidity: 5% to 95% Non-condensing
- Installation: Ensure proper grounding of the carrier shield to prevent signal noise
Q&A
- Q: What is the difference between “Differential” and “Single-ended” IOTAs?
- A: The CC-TAID01 (Differential) uses two wires per signal to reduce electromagnetic interference, unlike common-grounded versions.
- Q: Can I use this for a redundant pair of AI modules?
- A: No, the CC-TAID01 is typically for non-redundant use; redundant setups require the “TR” or “DR” suffix IOTAs.
- Q: Does it include the I/O module?
- A: No, this is the termination assembly (base) only; the electronic module must be purchased separately.
