Description
Product Description

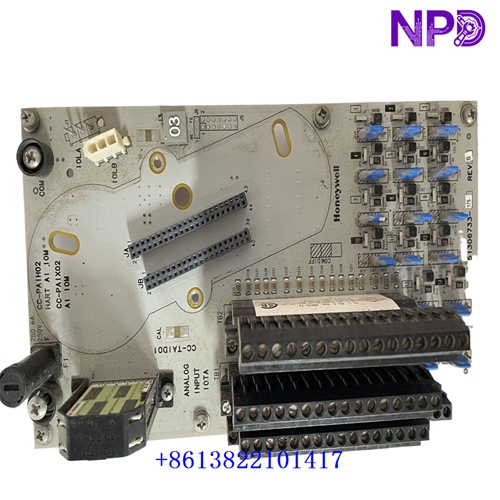

The Honeywell CC-TAID01 is a Series C Input/Output Termination Assembly (IOTA) designed for Honeywell Experion PKS distributed control systems. It provides field-wiring termination and signal interfacing for compatible high-level analog input modules. The assembly supports voltage and current transmitter signals and accommodates configurable single-ended and differential input arrangements. It is intended for non-redundant installations; redundant configurations require the appropriate redundant IOTA and compatible I/O hardware. Confirm the installed analog input module and complete part number before ordering.
CC-TAID01
Product Parameters and Datasheet
Brand: Honeywell
Model: CC-TAID01
Part Number: 51308353-175 (commonly listed; verify against the unit label)
Series: Experion PKS Series C I/O
Product Name: Analog Input IOTA / Termination Assembly
Product Type: Analog Input Termination Assembly
Input Configuration: 16 channels; supports 12 single-ended or 4 differential inputs in the specified configuration
Compatible Input Modules: Compatible Series C high-level analog input modules, including applicable CC-PAIX variants
Input Signal Types: 0–5 V, 1–5 V, 0.4–2 V, and 4–20 mA via a 250 Ω termination resistor
A/D Resolution: 16-bit when used with the applicable input module
Common-Mode Rejection: 70 dB, DC to 60 Hz, under specified test conditions
Common-Mode Voltage: -6 V to +5 V peak
Voltage Input Impedance: Greater than 10 MΩ when powered
Maximum Differential Input Voltage: ±30 V without damage, under specified conditions
Installation: Honeywell Series C mounting and termination system
Redundancy: Non-redundant
Place of Manufacture: Not confirmed for the individual unit
Product Status: Confirm with supplier
Dimensions: Verify against the applicable Series C IOTA documentation
Weight: Not confirmed
Country of Origin: Verify the unit label and shipping documentation
Power Requirements: Depends on the installed I/O module and system configuration
Discontinued: Current lifecycle status not confirmed
Recommended Honeywell Models
1. CC-TAID11 – Redundant analog input termination assembly for supported configurations.
2. CC-PAIX01 – High-level analog input module.
3. CC-PAIX02 – High-level analog input module for compatible Series C systems.
4. CC-PAIN01 – High-level analog input module without HART.
5. CC-PAIH01 – High-level analog input module with HART.
6. CC-PAIH02 – High-level analog input module with HART.
7. CC-TAIX01 – Analog input termination assembly for supported Series C configurations.
8. CC-TAIX11 – Redundant analog input termination assembly; verify module pairing.
9. CC-TAIN01 – Analog input termination assembly for compatible modules.
10. CC-TAIN11 – Redundant analog input termination assembly.
11. CC-TAON01 – Analog output termination assembly for supported Series C modules.
12. CC-TAON11 – Redundant analog output termination assembly.
13. CC-PAON01 – High-level analog output module without HART.
14. CC-PAOX01 – Analog output module for compatible Series C systems.
15. CC-PDIL01 – Digital input module for supported Experion PKS configurations.
Compatibility Note: The CC-TAID01 is a termination assembly, not a standalone analog input conversion module. Verify the exact IOTA part number, compatible I/O module, channel configuration, field wiring, and redundancy requirements before installation.
