Description
1. Product Description

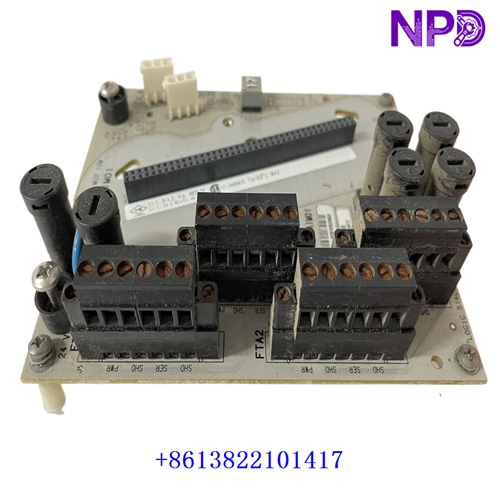

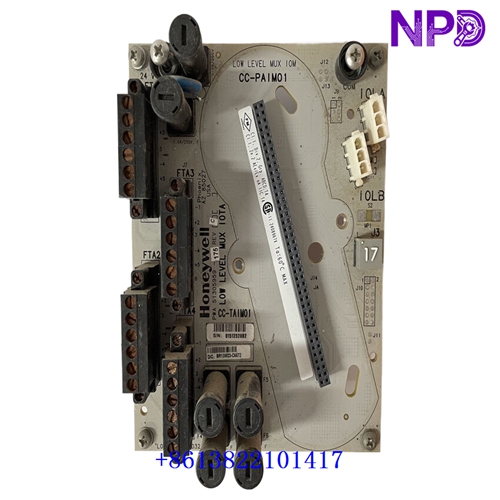

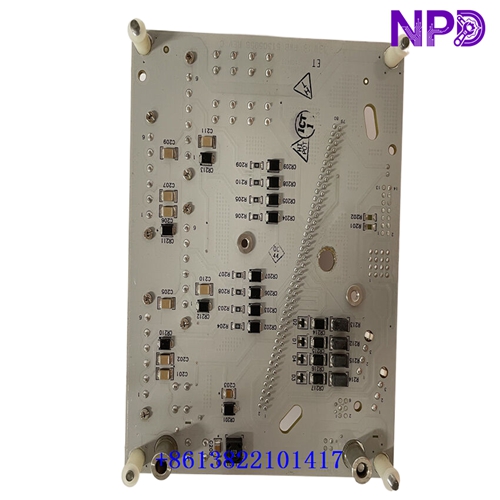

The Honeywell CC-TAIM01 is a Low-Level Multiplexer Input/Output Termination Assembly (IOTA) designed for the Experion PKS Series C control system. It provides the field-wiring interface for compatible low-level analog input hardware, particularly thermocouples (TCs) and resistance temperature detectors (RTDs). The assembly supports up to 64 isolated input channels in 16-channel increments when used with the appropriate multiplexer module and field termination assemblies. It is suitable for temperature monitoring and other low-level signal acquisition applications in industrial process control. The CC-TAIM01 is a termination assembly, not a standalone active input controller; verify the compatible CC-PAIM01 module and wiring accessories before ordering.
CC-TAIM01
2. Product Parameters and Datasheet
• Brand: Honeywell
• Model: CC-TAIM01
• Part Number: 51305959-175 (confirm against the product label)
• Series: Experion PKS Series C / PMIO
• Product Name: Low-Level Analog Input Multiplexer IOTA
• Product Type: Input/Output Termination Assembly (IOTA)
• Compatible Input Module: CC-PAIM01; confirm the exact hardware revision
• Input Types: Thermocouples, RTDs, and supported low-level millivolt signals
• Input Capacity: Up to 64 channels in 16-channel increments, with compatible hardware
• Nominal Thermocouple Input Range: -20 to +100 mV
• Input Scan Rate: 1 second fixed; up to 64 channels per second under specified configuration
• Channel Bandwidth: 0 to 4.7 Hz (-3 dB)
• Isolation: Channel-to-channel, channel-to-PM, and channel-to-power-supply common, per system specification
• Common-Mode Voltage Rating: ±250 V DC or AC RMS, subject to specified conditions
• Mounting: Compatible Series C I/O carrier/rack assembly
• Place of Manufacture: Not confirmed; check product label
• Product Status: Confirm with seller; new, open-box, or used condition may vary
• Dimensions: Depends on assembly configuration; verify before installation
• Weight: Verify by hardware revision and packaging
• Country of Origin: Check nameplate or shipping documentation
• Power Requirements: Installed-system requirements depend on the compatible I/O module and assembly; consult the hardware manual
• Discontinued: Current lifecycle status not confirmed
3. Recommended Honeywell Models
• CC-PAIM01 — Low-Level Analog Input Multiplexer Module
• CC-TAIM01 — Low-Level Multiplexer IOTA
• CC-TAMR04 — Compatible temperature multiplexer field termination assembly; verify configuration
• CC-TAMT04 — Temperature multiplexer field termination assembly; verify configuration
• CC-TAIX01 — Analog Input IOTA
• CC-TAIX11 — Redundant Analog Input IOTA
• CC-TAID01 — Differential Analog Input IOTA
• CC-TAID11 — Redundant Differential Analog Input IOTA
• CC-GAIX21 — Galvanic-Isolation Analog Input IOTA
• CC-GAIX11 — Redundant Galvanic-Isolation Analog Input IOTA
• CC-PAIH02 — Analog Input Module with HART
• CC-PAIX02 — High-Level Analog Input Module
• CC-PAON01 — Analog Output Module
• CC-PDIL01 — Digital Input Module
• CC-PDOD01 — Digital Output Module
