Description

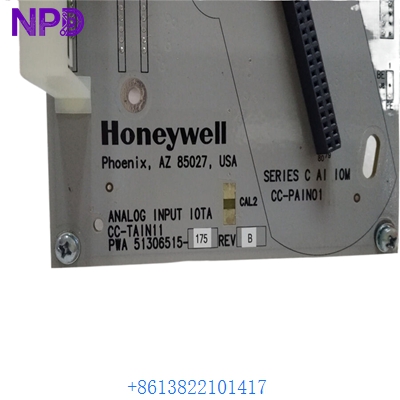

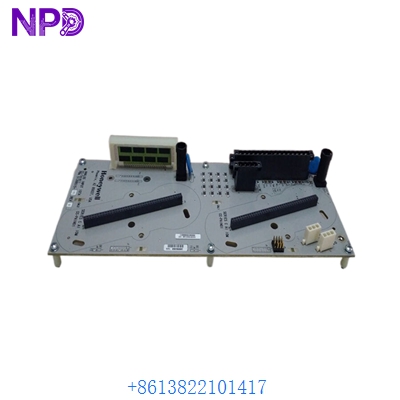

The CC-TAIN11 (Part Number 51306515-175) is a non-redundant Analog Input Termination Assembly (IOTA) designed for the Honeywell Experion PKS Series C system, providing the physical interface for 16 channels of field wiring to the CC-PAIH01 or CC-PAIX01 modules.
Technical Parameters
- Model Number: CC-TAIN11 / 51306515-175
- Capacity: 16 Channels
- Configuration: Non-redundant (Single module support)
- Field Connection: Compression terminals or screw terminals
- Loop Power: Internal fused power distribution for 2-wire transmitters
- HART Support: Integrated filtering for HART digital communication
Dimensions & Weight
- Width: 152.4 mm (6 inches)
- Height: 120 mm
- Depth: 115 mm (including module)
- Net Weight: 0.38 kg (0.84 lbs)
Environmental Certifications
- Compliance: CE, CSA, FM Class I Div 2, ATEX Zone 2
- Operating Temp: -40°C to +70°C (-40°F to +158°F)
- Coating: G3 Conformal coating for protection against corrosive gases
- Vibration/Shock: IEC 60068-2 standards compliant
Application Fields
- Field instrument wiring termination in Experion PKS
- Distributed Control System (DCS) cabinet integration
- 4-20 mA sensor signal routing and protection
- Process industries requiring G3 environmental protection
Product Q&A
- Q: Is this IOTA compatible with redundant Analog Input modules?
- A: No, the CC-TAIN11 is a 6-inch non-redundant model. Redundant setups require the 12-inch CC-TAIN21.
- Q: Does the 51306515-175 come with the I/O module included?
- A: No, this part number refers specifically to the termination assembly base; the I/O module must be purchased separately.
- Q: Can this be mounted on a standard DIN rail?
- A: Yes, it is designed for standard Series C carrier mounting which attaches to industrial rails.
