Description
Product Description
The Honeywell CC-TAON01 is an Input/Output Termination Assembly (IOTA) designed for the Experion PKS Series C control system. It provides the field-wiring interface for the compatible CC-PAON01 16-channel non-HART analog output module, supporting connections to field devices such as control valves, actuators, and process indicators. The CC-TAON01 is intended for non-redundant configurations, while the CC-TAON11 is the corresponding redundant IOTA option. It is a termination assembly rather than a standalone analog output controller, so the correct I/O module and system configuration must be confirmed before installation.

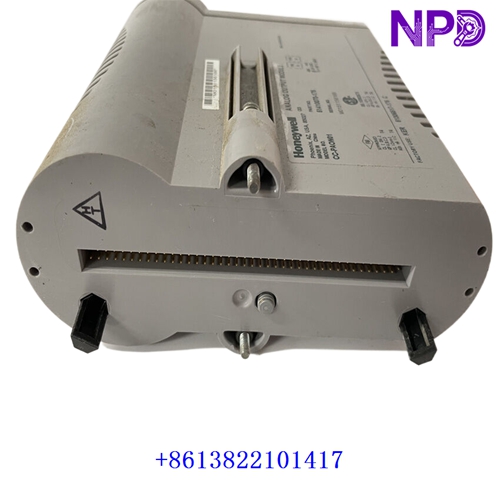

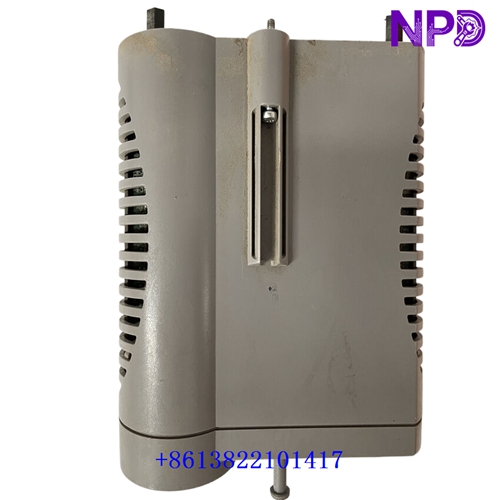

CC-TAON01
Product Parameters and Datasheet
Brand: Honeywell
Model: CC-TAON01
Part Number: 51306519-175
Series: Experion PKS Series C I/O
Product Name: Analog Output Input/Output Termination Assembly (IOTA)
Product Type: Analog Output Termination Assembly
Compatible I/O Module: CC-PAON01
Output Channel Capacity: Supports the 16-channel CC-PAON01 configuration
Signal Type: 4–20 mA analog output through the compatible I/O module
HART Support: CC-PAON01 configuration is non-HART
Redundancy: Non-redundant
Redundant IOTA Option: CC-TAON11
Assembly Length: Approximately 6 inches (152 mm)
Weight: Approximately 0.3 kg; confirm for the supplied unit
Power Requirements: Depends on the installed I/O module and system configuration
Place of Manufacture: Not confirmed for the individual unit
Product Status: Confirm stock and condition with supplier
Country of Origin: Verify the product label and shipping documents
Discontinued: Confirm current lifecycle status with supplier
Recommended Honeywell Models
1. CC-PAON01 – 16-channel non-HART analog output module compatible with CC-TAON01.
2. CC-TAON11 – Redundant IOTA option for compatible CC-PAON01 configurations.
3. CC-PAOX01 – 16-channel non-HART analog output module for a different IOTA family.
4. CC-TAOX01 – Non-redundant IOTA for compatible CC-PAOX01 configurations.
5. CC-TAOX11 – Redundant IOTA for compatible CC-PAOX01 configurations.
6. CC-PAOH01 – 16-channel HART analog output module.
7. CC-PAOH51 – Series C HART analog output module.
8. CC-TAOX51 – Non-redundant IOTA for supported CC-PAOH51 configurations.
9. CC-TAOX61 – Redundant IOTA for supported CC-PAOH51 configurations.
10. CC-PAIN01 – High-level analog input module without HART.
11. CC-TAIN01 – Non-redundant IOTA for compatible CC-PAIN01 installations.
12. CC-TAIN11 – Redundant IOTA for compatible CC-PAIN01 installations.
13. CC-PDIL01 – 32-channel, 24 VDC digital input module.
14. CC-PDOB01 – 32-channel digital output module.
15. CC-PCNT01 – C300 controller module for the Experion PKS system.
Compatibility Note: Verify the IOTA part number, module pairing, terminal wiring, and redundancy arrangement before ordering. CC-TAON01 and CC-TAOX01 belong to different I/O configurations and should not be assumed interchangeable.
