Description

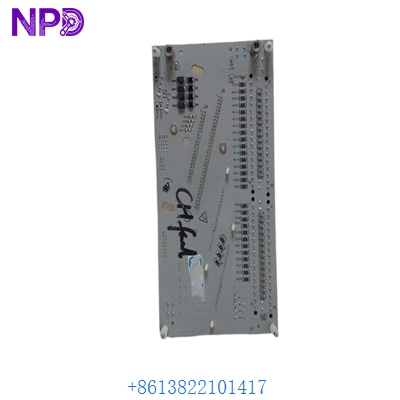

The Honeywell CC-TDIL01 is a high-performance Digital Input Input/Output Termination Assembly (IOTA) designed for the Experion PKS Series C system. It facilitates reliable signal conditioning and terminal connection between field devices and the controller, ensuring high-speed data acquisition in demanding industrial environments.
Product Parameters
- Part Number: 51308386-175
- Model Code: CC-TDIL01
- Voltage Rating: 24V DC
- Channel Density: 32 Channels
- Power Dissipation: 4.2 Watts (Maximum)
- Coating: Conformal Coated for harsh environment protection
Product Specifications
- Mounting: DIN Rail or Carrier mounting
- Terminal Type: Compression or Screw terminal blocks
- Input Type: Discrete dry contact or 24V DC active signals
- Redundancy: Supports non-redundant and redundant configurations
- Dimensions: Standard Series C IOTA width
Application Areas
- Oil and Gas refinery process control
- Chemical manufacturing plant automation
- Power generation and distribution monitoring
- Pulp and paper industrial systems
- Water and wastewater treatment facilities
Product Q&A
Q: What is the primary function of the CC-TDIL01? A: it serves as the physical interface and termination point for 32 digital input signals entering the Experion Series C system.
Q: Does this module support “Hot Swapping”? A: Yes, it is designed for removal and replacement under power to minimize system downtime.
Q: What does the “51308386-175” number represent? A: This is the specific Honeywell hardware part number used for ordering and identifying the physical assembly.
