Description

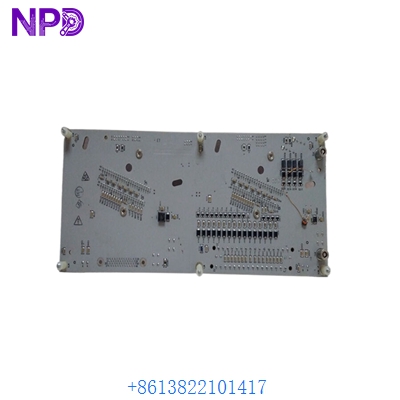

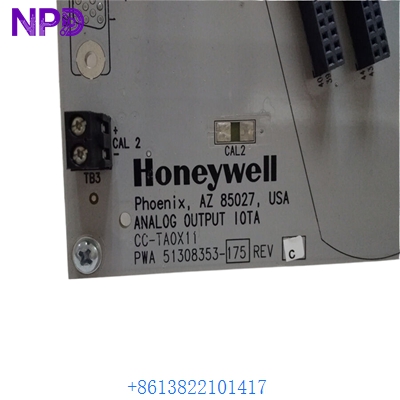

The HONEYWELL CC-TAOX11 51308353-175 is a high-level Analog Output Termination Assembly (IOTA) designed for the Experion PKS Series C system. It facilitates reliable signal distribution and interface between the C300 controller and field devices, ensuring precise process control in demanding industrial environments.
Technical Parameters
- Model: CC-TAOX11
- Part Number: 51308353-175
- Type: High-Level Analog Output (HLAO) IOTA
- Input Voltage: 24V DC nominal
- Signal Range: 4-20mA standard output
- Channel Density: 16 Channels
- Mounting: DIN Rail or Carrier Mount
Product Specifications
- Coating: G3 Conformal Coating for corrosion resistance
- Compatibility: Series C I/O modules
- Connection: Compression terminals for field wiring
- Redundancy: Supports redundant configuration for high availability
- Dimensions: Standard Series C IOTA width (6 inches/152mm)
Application Areas
- Oil and gas refinery process control
- Chemical and petrochemical plant automation
- Power generation and utility management
- Water and wastewater treatment facilities
- Pharmaceutical manufacturing lines
Product Q&A
- Q: What is the primary function of the CC-TAOX11?
- A: It serves as the physical interface and termination point for 16 analog output signals from the Series C HLAO modules to field actuators.
- Q: Does this model support harsh environments?
- A: Yes, the “175” suffix indicates conformal coating, protecting the circuitry against humidity and chemical contaminants.
- Q: Is this unit hot-swappable?
- A: While the I/O module is hot-swappable, the termination assembly should be handled with care regarding field power during maintenance.
