Description
Product Description

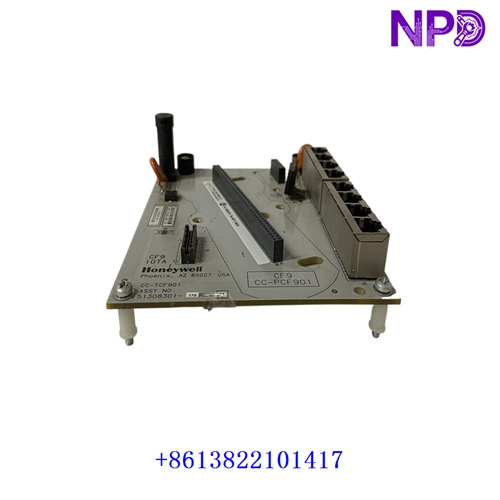

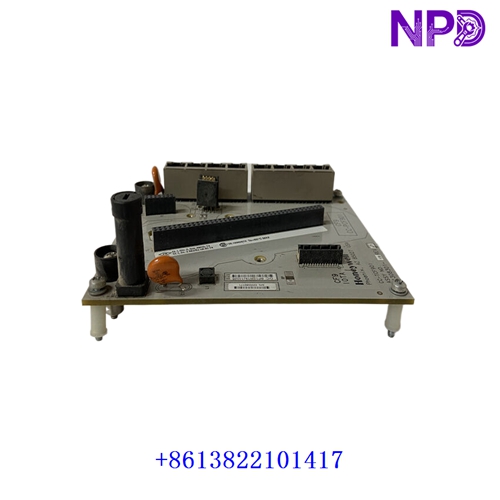

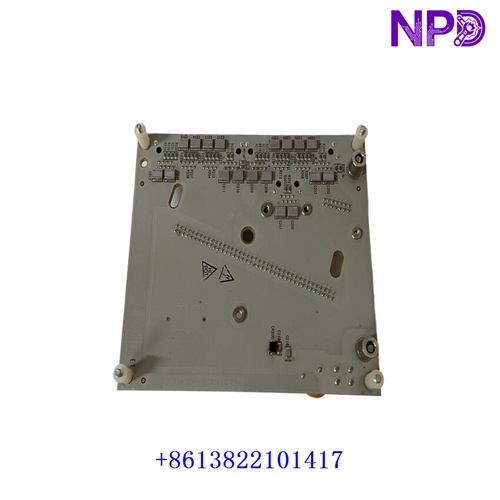

The Honeywell CC-TCF901 is a 9-port Control Firewall Input/Output Termination Assembly (IOTA) designed for the Experion PKS Series C control system. It provides the physical connection and mounting interface for the compatible CC-PCF901 Control Firewall module and distributes Fault Tolerant Ethernet (FTE) network connections within the control cabinet. Eight ports connect to in-cabinet controllers and compatible Fieldbus Interface Modules (FIMs), while the ninth port provides an uplink to the supervisory FTE network. The assembly also provides 24 VDC power distribution to the firewall module. Optional fiber-optic connectivity can be supported through compatible fiber modules.

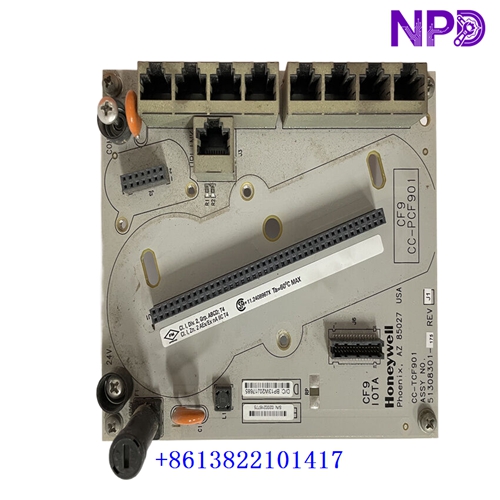

CC-TCF901
Product Parameters and Datasheet
Brand: Honeywell
Model: CC-TCF901
Part Number: 51308301-175
Series: Experion PKS Series C / CF9
Product Name: 9-Port Control Firewall Input/Output Termination Assembly
Product Type: Control Firewall IOTA
Compatible Module: CC-PCF901
Network: Fault Tolerant Ethernet (FTE)
Number of Ports: 9
Port Configuration: 8 in-cabinet network connections + 1 supervisory uplink
Ethernet Connectors: 9 × RJ-45
Power Distribution: 24 VDC to the compatible firewall module
Fiber-Optic Options: CC-FSMX01 single-mode; CC-FMMX01 multi-mode, subject to configuration
Mounting: Compatible Series C control cabinet assembly
Operating Temperature: -40°C to +70°C, subject to applicable hardware documentation
Dimensions: Approx. 121 × 145 mm mounting footprint reported by suppliers; verify the installation drawing
Weight: Supplier-reported values vary; confirm the actual unit and shipping weight
Place of Manufacture: Not confirmed for the individual unit
Product Status: Confirm availability and condition with supplier
Country of Origin: Verify the product label and shipping documentation
Power Requirements: 24 VDC distribution; confirm the system supply specifications
Discontinued: Confirm current lifecycle status with Honeywell or the supplier
Recommended Honeywell Models
1. CC-PCF901 – 9-port Control Firewall module designed for the CC-TCF901 IOTA.
2. CU-PCF901 – Related Control Firewall module for supported Series C configurations.
3. CU-TCF901 – Related Control Firewall IOTA; verify system and hardware compatibility.
4. CC-TCNT01 – C300 controller IOTA for compatible controller installations.
5. CU-TCNT01 – Related controller termination assembly; confirm the system configuration.
6. CC-PCNT01 – C300 controller module for Experion PKS.
7. CC-PCNT02 – C300 controller model used in supported controller upgrade configurations.
8. CC-PDIL01 – 32-channel digital input module.
9. CC-PDOB01 – Digital output module for supported Series C systems.
10. CC-PAON01 – 16-channel non-HART analog output module.
11. CC-PAOX01 – Analog output module for supported Series C configurations.
12. CC-PAIH01 – Analog input module with HART support.
13. CC-PAIX01 – High-level analog input module.
14. CC-FSMX01 – Optional single-mode fiber-optic module for supported FTE connections.
15. CC-FMMX01 – Optional multi-mode fiber-optic module for supported FTE connections.
Compatibility Note: The CC-TCF901 is a termination assembly, not the active firewall module. Confirm the associated CC-PCF901/CU-PCF901 hardware, Series C configuration, FTE cabling, fiber option, and 24 VDC supply before ordering. Related models listed above are not all direct replacements.
