Description
Product Description

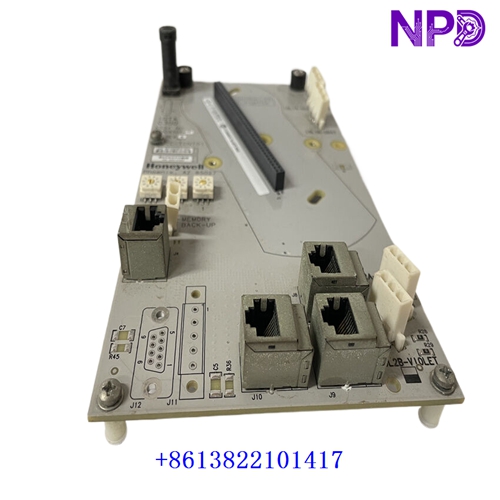

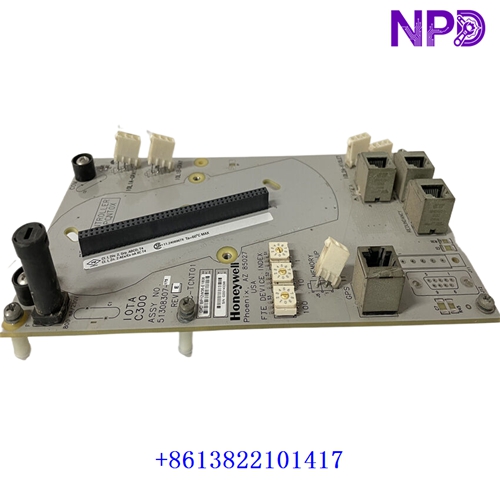

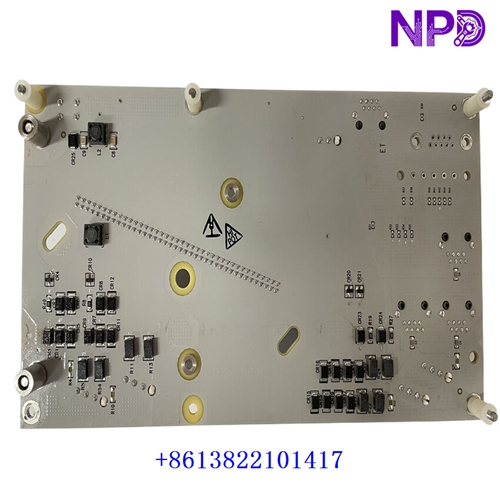

The Honeywell CC-TCNT01 (51308307-175) is a Controller Input/Output Termination Assembly (IOTA) designed for the Experion PKS C300 distributed control system. It provides the mounting and connection interface for a compatible C300 controller and terminates essential system connections, including Fault Tolerant Ethernet (FTE), I/O Link, redundancy, battery, and time-source cabling. The assembly also distributes 24 VDC power to the controller module. It is a controller interface assembly rather than a standalone CPU or field I/O module, making correct hardware matching essential during maintenance and replacement.
CC-TCNT01
Product Parameters and Datasheet
Brand: Honeywell
Model: CC-TCNT01
Part Number: 51308307-175
Series: Experion PKS C300 / Series C
Product Name: C300 Controller Input/Output Termination Assembly
Product Type: Controller IOTA / Mounting and Wiring Interface
Compatible Controller: Honeywell C300 controller
Communication Connections: FTE and I/O Link
Additional Connections: Redundancy, battery, and time-source cabling
Power Distribution: 24 VDC to the controller module
Supply Rating: 0.311 A at 24 VDC (listed rating; verify system documentation)
Controller Capacity: Supports one controller module per IOTA
Mounting: Compatible Honeywell Series C hardware arrangement
Place of Manufacture: Not confirmed for the individual unit
Product Status: Legacy product; verify availability with the supplier
Dimensions: Not confirmed
Weight: Approximately 0.22 kg reported by some listings; shipping weight may differ
Country of Origin: Verify the unit nameplate and shipping documents
Power Requirements: 24 VDC system supply; confirm installation requirements
Discontinued: Listed as discontinued by some suppliers; confirm lifecycle status
Recommended Honeywell Models
1. CC-PCNT01 – C300 controller module compatible with the CC-TCNT01 IOTA.
2. CC-PCNT02 – C300 controller variant used in supported upgrade configurations.
3. CC-PWRB01 – Controller power-related module; verify the exact application.
4. CC-PCF901 – Nine-port Fault Tolerant Ethernet control firewall module.
5. CC-TCF901 – IOTA for the compatible control firewall module.
6. CC-TAID01 – Analog input termination assembly for compatible Series C I/O.
7. CC-TAIX01 – Analog input termination assembly for supported configurations.
8. CC-TAIX11 – Redundant analog input termination assembly.
9. CC-TAON01 – Analog output termination assembly.
10. CC-TAON11 – Redundant analog output termination assembly.
11. CC-PAIN01 – High-level analog input module.
12. CC-PAIX01 – High-level analog input module for compatible Series C systems.
13. CC-PAON01 – High-level analog output module without HART.
14. CC-PDIL01 – Digital input module for compatible Experion PKS systems.
15. CC-PDOB01 – Digital output module for compatible Experion PKS systems.
Compatibility Note: Verify the C300 controller revision, IOTA part number, cable connections, power supply, and redundancy arrangement before replacement. The recommended models are related Honeywell system components and are not all direct substitutes.
