Description
1. Product Description

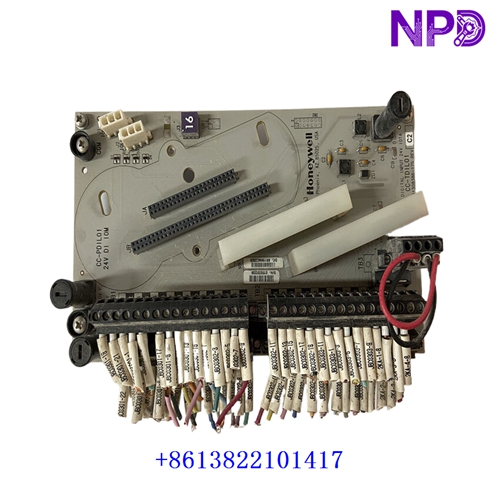

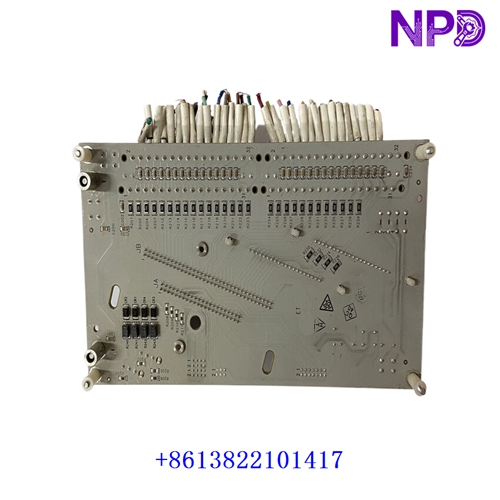

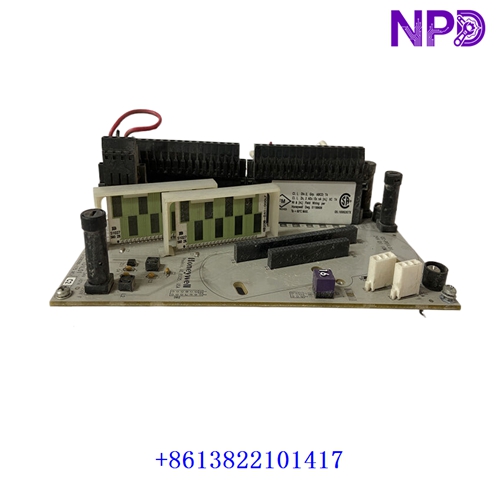

The Honeywell CC-TDIL01 is a non-redundant digital input Input/Output Terminal Assembly (IOTA) designed for Honeywell Experion PKS Series C control systems. It provides the field-wiring interface for compatible 24 VDC digital input modules, receiving discrete ON/OFF signals from switches, relay contacts, and industrial status devices. The assembly supports 32-channel digital input applications and is compatible with the CC-PDIL01 digital input module and CC-PDIS01 sequence-of-events input module in supported configurations. It is used in process automation systems to monitor equipment status, interlocks, and field contact signals. Confirm the IOTA variant, field wiring, and redundancy requirements before installation.
CC-TDIL01
2. Product Parameters and Datasheet
• Brand: Honeywell
• Model: CC-TDIL01
• Part Number: 51308386-175
• Series: Experion PKS Series C I/O
• Product Name: Digital Input IOTA Terminal Assembly
• Assembly Type: Non-redundant digital input termination assembly
• Channel Capacity: 32 digital input channels with compatible IOM
• Nominal Field Signal: 24 VDC
• Supported Input Modules: CC-PDIL01 and CC-PDIS01 in supported configurations
• DI Power Voltage Range: 18–30 VDC
• ON-State Threshold: 13 VDC minimum or 3 mA minimum
• OFF-State Threshold: 5 VDC maximum or 1.2 mA maximum
• Input Impedance: Approximately 4.2 kΩ
• Input Filter and Isolation Delay: 5 ms ±20%, for the specified digital input function
• Isolation: Optical isolation in the input module; specified system isolation up to 1500 VAC RMS or ±1500 VDC
• Mounting: Series C I/O cabinet or compatible carrier assembly
• Place of Manufacture: Verify from the product label
• Product Status: Confirm with seller; new, open-box, or used condition may vary
• Dimensions: Verify by hardware revision and assembly configuration
• Weight: Approximately 0.4–0.7 kg depending on listing and configuration; verify before shipping
• Country of Origin: Check nameplate or shipping documentation
• Power Requirements: Depends on the connected IOM and field-power configuration; verify system documentation
• Discontinued: Current lifecycle status not confirmed
3. Recommended Honeywell Models
• CC-PDIL01 — 24 VDC Digital Input Module
• CC-PDIS01 — Digital Input Sequence-of-Events Module
• CC-TDIL11 — Redundant Digital Input IOTA
• CC-PDIL51 — Digital Input Module for compatible Series C configurations
• CC-TDIL51 — Digital Input IOTA for compatible CC-PDIL51 configurations
• CC-TDIL61 — Redundant IOTA for compatible CC-PDIL51 configurations
• CC-PDOB01 — Digital Output Module
• CC-TDOB01 — Digital Output IOTA
• CC-TDOB11 — Redundant Digital Output IOTA
• CC-PAIX02 — High-Level Analog Input Module
• CC-PAIH02 — Analog Input Module with HART
• CC-PAON01 — Analog Output Module
• CC-TAIX01 — Analog Input IOTA
• CC-TAIX11 — Redundant Analog Input IOTA
• CC-PCNT02 — C300 Process Controller
