Description

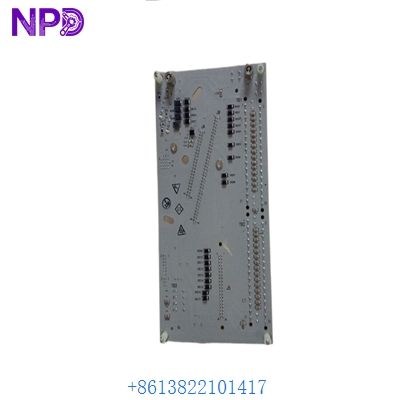

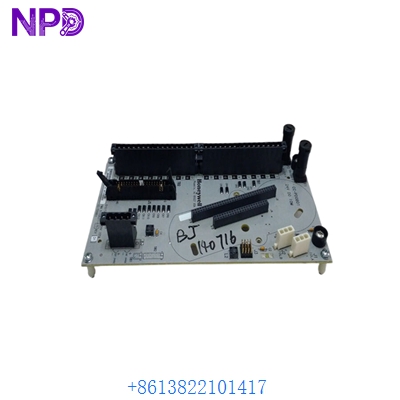

The Honeywell CC-TDOB01 is a high-performance Digital Output Base module designed for the Experion PKS Series C system. This 24V DC module facilitates reliable switching of field actuators, featuring 16 channels of isolated digital outputs to ensure precise process control and signal integrity in demanding industrial environments.
Key Specifications
- Model Number: CC-TDOB01
- Part Number: 51308371-175
- Series: Experion PKS C300
- Channel Count: 16 Channels
- Voltage Rating: 24V DC
- Mounting: IOTA (Input Output Termination Assembly)
- Communication: I/O Link
Technical Parameters
- Operating Current: 0.5A per channel (nominal)
- Isolation Voltage: 500V AC
- Power Dissipation: 4.5W maximum
- Operating Temperature: 0°C to 60°C
- Response Time: < 5ms (On/Off)
Application Fields
- Oil and Gas refinery control systems
- Chemical and Pharmaceutical processing
- Power plant automation (DCS)
- Water treatment facility management
- Industrial manufacturing safety interlocks
Product Q&A
- Q: Does this module require a specific base?
- A: Yes, it must be installed on a compatible IOTA (Input Output Termination Assembly).
- Q: Can it handle inductive loads?
- A: Yes, it is designed for common industrial loads, though external suppression is recommended for high-inductance equipment.
- Q: Is the module hot-swappable?
- A: Yes, it supports hot-plugging within the Experion Series C architecture to minimize downtime.
- Q: What do the onboard LEDs indicate?
- A: They provide real-time status for power, module health, and individual channel activity.
