Description
⚡ Honeywell FC-PSU-240516 CC V1.1 is a conformal-coated power supply unit designed for Honeywell Safety Manager controller systems. It accepts a nominal 24 VDC input and provides regulated 5 VDC power with a maximum load capacity of 16 A. The V1.1 revision uses modified components while retaining the same functional characteristics specified for the PSU-240516 family.
The module is intended for installation in the Safety Manager controller chassis and is suitable for industrial safety-system power distribution where stable DC power is required for the controller hardware. Its conformal-coated construction makes it the FC version of the PSU-240516 family.

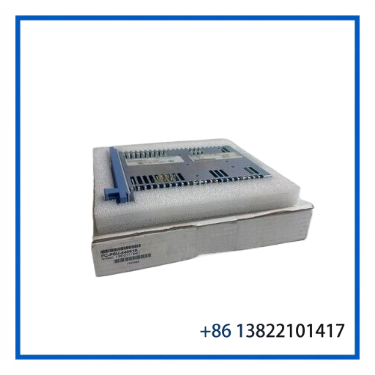

FC-PSU-240516
📋 Product Datasheet
| Parameter | Specification |
|---|---|
| Brand | Honeywell |
| Model | FC-PSU-240516 |
| Revision | CC V1.1 |
| Series | Safety Manager |
| Product Name | 24/5 VDC, 16 A Power Supply Unit |
| Input Voltage | 24 VDC, -15% to +30% |
| Output Voltage | 5 VDC |
| Maximum Output Current | 16 A |
| Dimensions | 176 × 35.2 × 212 mm (H × W × D) |
| Weight | 0.85 kg |
Honeywell documentation specifies an input current below 6 A at 24 VDC, below 7 A at 20.4 VDC, maximum 16 A load capability, and an operating temperature range of -5°C to +70°C.
🔧 Key Features
- ⚡ 24 VDC input power supply
- 🔋 Regulated 5 VDC output
- 📊 Up to 16 A load capacity
- 🛡️ Conformal-coated FC version
- 🔄 V1.1 component revision
- 🌡️ Operating temperature: -5°C to +70°C
- 🏭 Designed for Honeywell Safety Manager controller chassis
- 🔌 Suitable for industrial safety-system power architecture
- 📦 Compact chassis-mounted power module
- ✅ Honeywell hardware reference identifies both FC-PSU-240516 and FS-PSU-240516 within the PSU-240516 family.
❓ FAQ
Q1: What is the function of the FC-PSU-240516?
It provides 5 VDC power to the Honeywell Safety Manager controller chassis from a 24 VDC input.
Q2: What does “CC” mean?
The FC version is the conformal-coated variant of the PSU-240516 power supply family.
Q3: What does V1.1 indicate?
Honeywell specifies that modules with the V1.1 suffix contain modified components but have no functional changes.
Q4: What is the maximum output load?
The specified maximum 5 V load is 16 A.
Q5: Is FC-PSU-240516 the same as FS-PSU-240516?
They belong to the same PSU-240516 family, but the FC version is conformal coated, while the FS version is the non-conformal-coated variant.
Q6: What should be checked before replacement?
Verify the complete model, CC V1.1 revision marking, chassis compatibility, input voltage, and the existing Safety Manager hardware configuration.
