Description

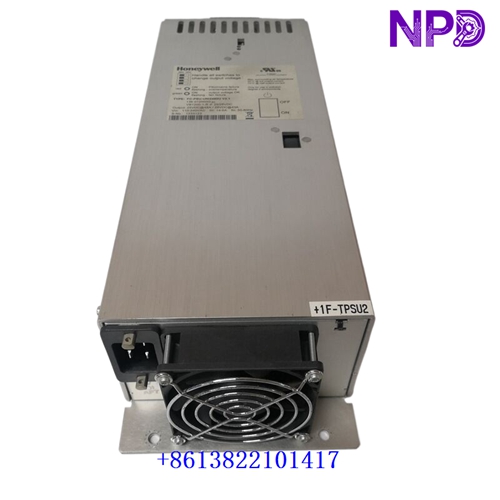

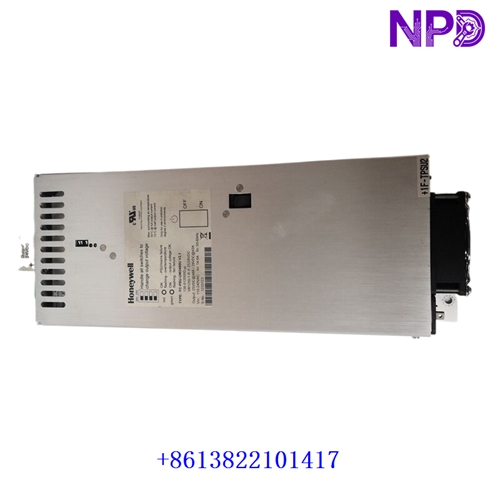

The Honeywell FC-PSU-UNI2450U V2.1 is a high-performance, switching-mode DC power supply module engineered for industrial safety control systems and automation platforms. Below are the core technical parameters governing its physical and operational characteristics:
- Brand: Honeywell
- Model: FC-PSU-UNI2450U V2.1
- Series: Honeywell Safety Manager / Controller Line
- Product Name: Universal Power Supply Unit
- Origin Country: United States
- Physical State: Solid State Electronic Module / Switching Power Supply
- Dimensions: 420.5 mm x 140 mm x 90 mm (Width x Height x Depth)
- Weight: Approx. 5.7 kg
- Place of Manufacture: Honeywell Industrial Automation Plants
- Power Parameters: Input voltage 110–240 VAC (47–63 Hz); Selectable output of 25 VDC (48 A) or 28 VDC (43 A) via internal DIP switch
► Operation Specifications & Usage Methods
Proper initialization and installation ensure stable power distribution and uninterrupted performance in demanding environments:
- Verify that the incoming AC supply voltage matches specifications before engaging the primary circuit breaker.
- Set the output voltage profile (25 VDC or 28 VDC) using the onboard DIP switch configuration according to system load requirements prior to full startup.
- Monitor front-panel LED indicators to verify normal operating status and stable output delivery without fault alerts.
⚠ Emergency Shutdown Operation
In the event of an electrical fault, critical system alarm, or emergency shutdown procedure, execute the following protocol:
- Cut off the main AC power feed to the unit using the integrated power switch or external upstream circuit protection.
- Allow the internal capacitors to discharge safely and wait at least 30 seconds before executing any physical disconnection or online replacement.
- Notify the site safety engineering team and check error relay contacts before attempting any hardware troubleshooting.
⚙ Troubleshooting & Common Issues
System diagnostics and visual indicators help resolve common power irregularities:
- If the unit fails to output power, inspect the input AC line fuses, terminal block connections, and external voltage stability.
- If the red status LED flashes, check for internal over-temperature conditions (>90°C) or input power failure states.
- For undervoltage alarm triggers (output dropping below 22 VDC), verify that total load current does not exceed maximum operational derating limits.
🛠 Routine Maintenance & Servicing
Preventative maintenance ensures maximum hardware lifespan and long-term reliability:
- Ensure adequate ventilation clearance (at least 100 mm above and below the unit) to prevent thermal overloads during continuous operation.
- Periodically inspect terminal wiring blocks and connector plugs to ensure secure contact free from industrial vibration loosening.
- Clean cabinet air filters regularly to maintain optimal airflow across the switching power supply housing.
❓ Frequently Asked Questions (Q&A)
- Q1: Can the FC-PSU-UNI2450U V2.1 module be replaced online while powered?
- A1: Yes, the unit supports hot-swappable online replacement when utilizing independent modular connectors and power switches, provided safety procedures are strictly observed.
- Q2: How can the DC output voltage be adjusted?
- A2: The output can be toggled between 25 VDC and 28 VDC using the designated internal DIP switch configuration.
- Q3: What safety certifications does this power supply hold?
- A3: It complies with major international industrial standards including UL508, CE, TUV, and CSA.
