Description
Product Introduction

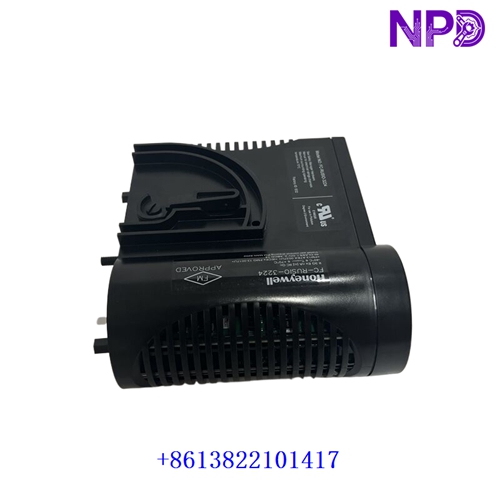

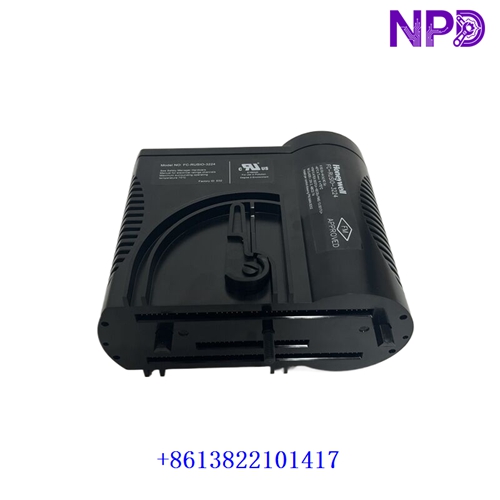

⚙️ Product: FC-RUSIO-3224
🏷️ Brand: Honeywell
🛡️ Series: ControlEdge / Universal Safety I/O
🔧 Product Type: Universal Safety I/O Module
The Honeywell FC-RUSIO-3224 is a Universal Safety I/O module designed for Honeywell safety control architectures. It provides configurable field I/O interfaces for safety-related applications, allowing field signals to be integrated into a safety controller for monitoring and control functions.
🏭 The module is intended for industrial process safety applications where reliable signal acquisition and output control are required. Depending on the system configuration, Universal Safety I/O modules can support different combinations of field signal types and are configured through the associated Honeywell safety system engineering tools.
🔌 Before installation, verify the complete FC-RUSIO-3224 part number, hardware revision, firmware compatibility, terminal assembly, I/O channel configuration, and safety-system architecture.
Product Datasheet
🔹 Model: FC-RUSIO-3224
🔹 Brand: Honeywell
🔹 Product Type: Universal Safety I/O Module
🔹 Application: Industrial Process Safety Control
🔹 System Function: Safety Field Signal Interface
🔹 I/O Configuration: Universal / Configuration Dependent
🔹 Signal Types: Digital and Analog Field Signals, Configuration Dependent
🔹 Power Supply: 24 VDC, System Configuration Dependent
🔹 Communication: Honeywell Safety System Backplane / Network Interface
🔹 Installation: Safety Controller / I/O Assembly
🔹 Dimensions: Approx. 180 × 120 × 30 mm*
🔹 Weight: Approx. 0.5 kg*
🔹 Operating Environment: Industrial Control Cabinet
🔹 Country of Origin: USA / Configuration Dependent*
*Exact dimensions, weight, I/O channel allocation, electrical ratings, and country of origin should be confirmed against the module nameplate and applicable Honeywell documentation before installation.
Typical Applications
🛡️ Safety Instrumented Systems (SIS)
🚨 Emergency Shutdown (ESD) systems
🔥 Fire and Gas protection
🏭 Process plant safety control
🛢️ Oil and gas facilities
⚡ Power generation safety systems
🧪 Chemical and petrochemical plants
Installation & Use
🛠️ Before installation, verify the FC-RUSIO-3224 hardware revision, approved I/O configuration, terminal connections, system firmware, and safety application database.
🔌 Install the module using appropriate ESD precautions. Confirm the 24 VDC supply, field wiring, grounding, and terminal connections before energizing the system.
📊 After startup, check module diagnostics, communication status, channel health, and field signal values. Perform the required loop checks and I/O validation through the Honeywell safety engineering environment.
⚠️ Because this module may be used in safety-related applications, configuration changes and commissioning should follow the approved site safety procedure and applicable functional-safety requirements.
