Description
- The Honeywell FTA-T-14 is a specialized Field Termination Assembly (FTA) used within the TDC 3000 and Experion PKS platforms. It serves as the physical interface between field wiring and the system’s High-Level Analog Input (HLAI) or Digital Input modules, providing secure connection points and signal conditioning for industrial instrumentation.
Product Parameters
- Interface Type: High-Level Analog Input (HLAI) / Digital Input
- Input Voltage: 24 V DC (standard field power)
- Channel Count: 16-channel termination capacity
- Connection Type: Compression-type screw terminals
- Fusing: Individual channel protection via plug-in fuses
Product Specifications
- Series: TDC 3000 / TPS / Experion Series A
- Mounting: Standard 19-inch rack or cabinet mounting base
- Coating: Available in conformal-coated versions for corrosion resistance
- Weight: 0.8 kg
- Dimensions: Standard FTA form factor for high-density integration

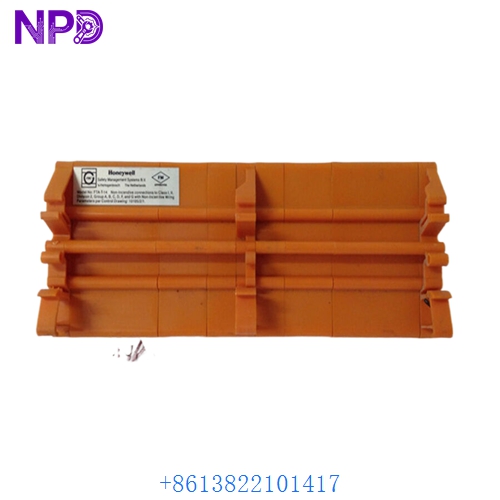

HONEYWELL FTA-T-14
HONEYWELL FTA-T-14
Application Fields
- Process Control: Interfacing temperature, pressure, and flow transmitters to the DCS.
- Refining: Signal marshaling in hazardous and non-hazardous area cabinets.
- Power Generation: Monitoring auxiliary plant equipment and sensor feedback.
- Chemical Plants: Centralized termination for high-density I/O subsystems.
Product Q&A
Q: What is the primary function of the “T” designation in FTA-T-14? A: The “T” typically refers to the specific terminal configuration or the type of input signal conditioning provided for the associated I/O processor.
Q: Does this FTA support redundant I/O processors? A: Yes, it is designed to work with Honeywell’s redundant cable sets to connect a single set of field wiring to primary and backup I/O modules.
Q: Are the fuses on the FTA-T-14 user-replaceable? A: Yes, the board features accessible fuse holders for each channel, allowing for easy maintenance without replacing the entire assembly.
