Description

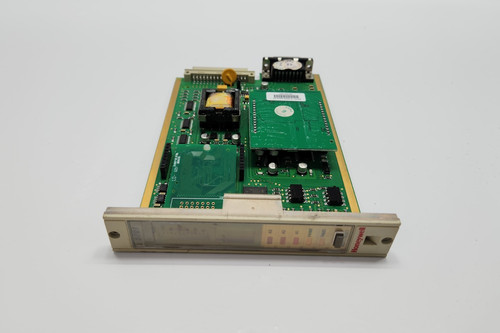

The HONEYWELL SIEGER 05701-A-0302 is a high-performance single-channel control card designed for the 5701 gas detection control system. Engineered for precision and reliability, this module is widely utilized in industrial safety applications to monitor, process, and manage gas sensor inputs. It provides robust signal conditioning and alarm management, ensuring critical safety data is accurately communicated to the central control infrastructure in hazardous environments.
Technical Specifications
| Parameter | Description |
| Model | 05701-A-0302 / 5701 |
| Manufacturer | HONEYWELL SIEGER |
| Dimensions | Standard Eurocard Format |
| Weight | Approximately 0.35 kg |
| Origin | United Kingdom |
| Function | Single Channel Gas Detection Control |
Operational Guidelines & Usage
🔹 Startup Sequence
- Ensure the control card is fully seated and locked into the corresponding rack slot.
- Confirm that all field wiring for the gas sensor is securely terminated to the rear terminal blocks.
- Apply power to the system rack.
- Observe the front panel LEDs; the module should perform a self-test cycle.
- Wait for the “Power/Normal” LED to illuminate steadily, indicating the card is initialized and ready for channel calibration.
🔹 Shutdown Sequence
- Notify site personnel that the specific detection channel will be offline.
- Place the system into “Inhibit” or “Maintenance” mode via the rack controller to prevent false alarms.
- Power down the rack or carefully extract the card from the chassis.
- Ensure the card is stored in an anti-static bag if kept in inventory.
🔹 Normal Operational Flow
- The card continuously polls the connected gas detector.
- Incoming 4-20mA signals are digitized and compared against pre-set alarm thresholds.
- If gas concentrations exceed set points, the card triggers local alarm relays and reports the status to the main control system.
- Personnel should perform regular visual checks of the display/LED status to ensure no “Fault” conditions are present.
🔹 Parameter Configuration
- Access the calibration mode using the service interface or front-panel configuration switches (depending on the specific revision).
- Use the adjustment potentiometers or digital keypad to set the Zero and Span levels corresponding to the connected sensor type.
- Verify the alarm trip points (Low Alarm/High Alarm) against site safety requirements.
- Save the configuration and perform a functional test using test gas to verify relay activation.
🔹 Mode Switching
- Active/Monitor Mode: Default operational state; the card actively monitors the sensor signal.
- Inhibit/Maintenance Mode: Used during calibration or sensor replacement to prevent the activation of site-wide emergency shutdown systems. Toggle this via the rack controller interface before performing any physical work on the sensor loop.
Common Questions & Answers (Q&A)
💡 Q: Why is the “Fault” LED illuminated?
A: A fault light usually indicates an open loop (broken wire), a short circuit in the sensor cabling, or a failure of the sensor element itself. Check the wiring continuity and verify the sensor output is within the 4-20mA range.
💡 Q: Can this card be used with different types of sensors?
A: The 5701 card is designed for specific sensor inputs. Ensure the gas type and range settings are compatible with the sensor installed in the field before final commissioning.
💡 Q: How often should I calibrate the channel?
A: Calibration frequency is dependent on your site’s safety policy and the environment. Typically, a bump test or calibration is recommended every 3 to 6 months to ensure accuracy in life-safety applications.
💡 Q: What does it mean if the display is flashing?
A: A flashing display or LED usually signifies an alarm condition (either a pre-alarm or a latching fault that has not been acknowledged). Press the “Reset” button on the rack controller to acknowledge and clear latched alarms.
