Description
The Honeywell TC-CCR014 (Part Number: 97197975-A01) is a high-performance Control Processor for the Experion PKS (Process Knowledge System) and C200 controller family. It is designed to execute complex control strategies, including regulatory, fast logic, and batch processing, within the robust and scalable Experion architecture.
Product Parameters (Datasheet)
- Model Number: TC-CCR014
- Part Number: 97197975-A01
- Controller Type: C200 Control Processor (CPM)
- Execution Environment: Deterministic, high-speed Control Execution Environment (CEE)
- Memory: High-density onboard RAM for strategy storage and runtime data
- Network Interface: Connects to I/O and peer-to-peer modules via the I/O ControlBus (backplane)
- Redundancy: Supports 1:1 hardware redundancy (Primary/Secondary pairing)
- Power Consumption: ~1.2A @ 5V DC (Supplied via the rack backplane)
- Operating Temperature: 0°C to +60°C (32°F to 140°F)

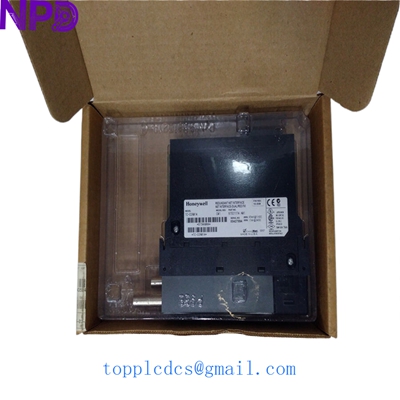

HONEYWELL TC-CCR014 97197975-A01
HONEYWELL TC-CCR014 97321174-A01
HONEYWELL TC-CCR014 97321174-A01
Country of Origin
This process automation controller is engineered and manufactured by Honeywell in the USA, specifically for critical industrial control applications globally.
Application Fields
The TC-CCR014 is a core component in large-scale distributed control systems (DCS):
- Oil & Gas Refineries: Managing distillation column control and safety-related logic.
- Chemical Production: Coordinating batch reactors, dosing systems, and thermal management.
- Power Generation: Operating auxiliary boiler controls and turbine monitoring interfaces.
- Pulp & Paper: Regulating high-speed paper machine logic and drying sections.
- Pharmaceuticals: Ensuring precise execution of validated batch processes in compliance with regulatory standards.
Product Usage Instructions
- Chassis Mounting: Slide the TC-CCR014 into a 4, 7, 10, or 13-slot C200 chassis. Ensure the module is firmly clicked into the backplane to establish a secure data and power link.
- Redundancy Configuration: For mission-critical loops, install two TC-CCR014 modules in adjacent slots or separate chassis (if using Redundancy Modules). They will automatically establish a synchronized state.
- Firmware Loading: Use the Experion Control Builder software to load the appropriate firmware and “personality” to the module. The firmware must match the Experion system release (e.g., R300, R410, etc.).
- Addressing: Assign the Hardware Address (MAC) via the rotary switches or through the software configuration to ensure it is recognized on the ControlNet or Ethernet network.
- Status Monitoring: Observe the alphanumerical display on the front panel. It provides real-time diagnostic codes (e.g., “ALive,” “Sync,” or fault codes) which are essential for troubleshooting.
Product Technical Description
The TC-CCR014 is the computational engine of the C200 system. Unlike a standard PLC, it runs Honeywell’s proprietary Control Execution Environment (CEE), which treats control as a set of interconnected function blocks. This ensures that every PID loop or logic gate is executed in a precise, deterministic time slice.
Technically, the module manages high-speed data exchange across the ControlNet backplane to communicate with I/O Link Modules (TC-IOL01) and Bridge Modules. The 97197975-A01 revision includes enhancements for memory management and faster synchronization during redundancy switchovers, minimizing “bumps” in the process during hardware transitions.
Q&A (Common Questions)
- Q: Can I replace a TC-CCR013 with a TC-CCR014?
- A: Yes, the TC-CCR014 is the successor to the CCR013, offering improved memory and processing power. However, ensure your Experion software version supports the newer module.
- Q: What does the display code “BKUP” mean?
- A: This indicates that the module is currently the Secondary (Backup) unit in a redundant pair and is synchronized with the Primary.
- Q: Do I need a battery for this module?
- A: The C200 CPM utilizes a battery (TC-BATT01) or a supercapacitor (on newer versions) to retain the user program in memory during a power loss.
- Q: Is this module compatible with the newer C300 series?
- A: No. The C200 and C300 are different architectures. While they can coexist on the same Experion network, their hardware modules (like the CCR014) are not interchangeable.
Similar Model Recommendations
- Honeywell TC-CPR012: Redundancy Module used for pairing two CCR014s.
- Honeywell TC-IOL011: I/O Link Module for connecting to Series A I/O.
- Honeywell TK-CCR014: The “Coated” version of the module for corrosive environments.
- Honeywell TC-FXX: Various chassis sizes used to house the CCR014.
- Honeywell TC-RPC011: Redundant Power Cable for the C200 system.
For technical documentation or a formal quote for the Honeywell TC-CCR014, please contact our process automation team.
