Description

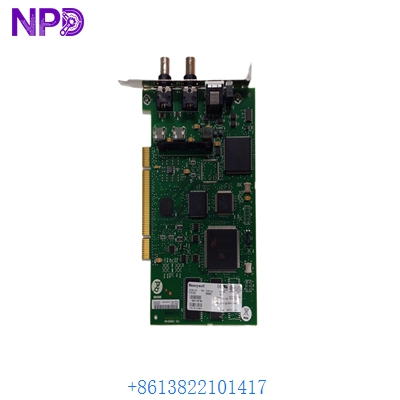

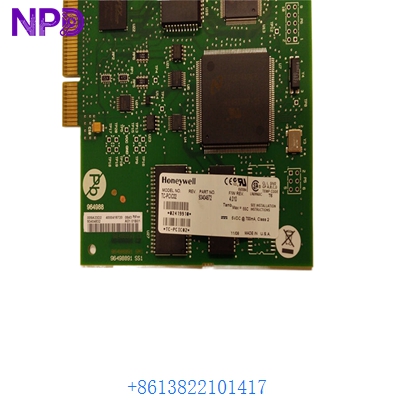

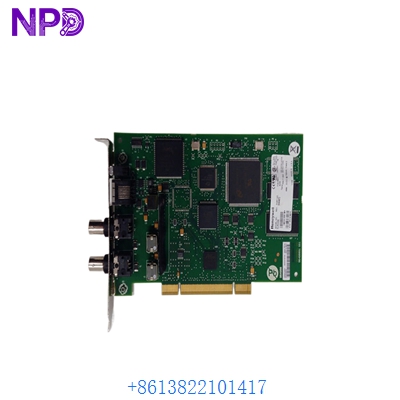

The HONEYWELL TC-PCIC02 is a high-performance ControlNet interface card designed for PCI bus architectures. It serves as a critical bridge between industrial personal computers (IPCs) or servers and the Experion PKS ControlNet network, enabling high-speed deterministic data exchange.
Technical Parameters
- Model Number: TC-PCIC02
- Network Protocol: ControlNet (RG-6 Coax)
- Communication Rate: 5 Mbps
- Bus Interface: PCI 2.2 (32-bit/33MHz)
- Voltage Requirement: 5V DC via PCI Slot
- I/O Capacity: Supports up to 128 logical connections
Product Specifications
- Connectors: Dual BNC (Channel A and Channel B)
- Status Indicators: LED for Module, Network, and Channel status
- Compatibility: Honeywell Experion PKS R300/R400+
- Operating Temp: 0°C to +50°C (32°F to +122°F)
- Form Factor: Standard PCI Half-Length Card
Application Fields
- Experion PKS Server-to-Controller Interfacing
- Industrial PC-based Supervisory Control
- Plant-wide Data Acquisition (SCADA)
- Legacy TDC 3000 Migration Projects
Product Q&A
- Q: Does the TC-PCIC02 support media redundancy?
- A: Yes, it features dual BNC ports to support redundant ControlNet cabling for high-availability systems.
- Q: Is this card compatible with modern 64-bit PCI Express slots?
- A: No, this is a legacy 32-bit PCI card; for PCIe slots, the TC-PCIE01 or similar updated hardware is required.
- Q: What is the purpose of the NAP port on the bracket?
- A: The Network Access Port (NAP) allows local configuration tools or laptops to connect directly to the ControlNet network without disconnecting the BNC cables.
