Description
The Honeywell TK-FTEB01 (Part number 51309512-175) is a high-performance Fault Tolerant Ethernet (FTE) Bridge module for the Experion PKS (Process Knowledge System). It serves as the critical communication interface between the C300 Controller (or Series C I/O) and the FTE network, ensuring high-speed, redundant data exchange across the control level.
Product Parameters (Datasheet)
- Model Number: TK-FTEB01
- Part Number: 51309512-175
- Network Type: Fault Tolerant Ethernet (FTE)
- Ports: 2 x RJ45 Ethernet ports (Yellow and Green cables for FTE redundancy)
- Speed: 100 Mbps (Full Duplex)
- Compatibility: Honeywell Series C / C300 Controller systems
- Form Factor: Series C high-density plug-in module
- Power Supply: 24V DC (via the Series C backplane/IO Termination Assembly)
- Indicator LEDs: Status, Link, Activity, and FTE Health

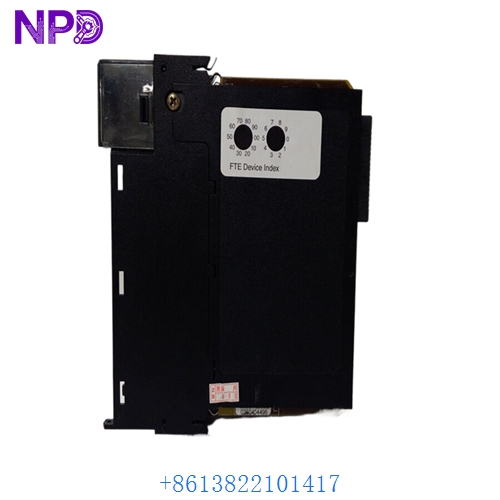

HONEYWELL TK-FTEB01 51309512-175

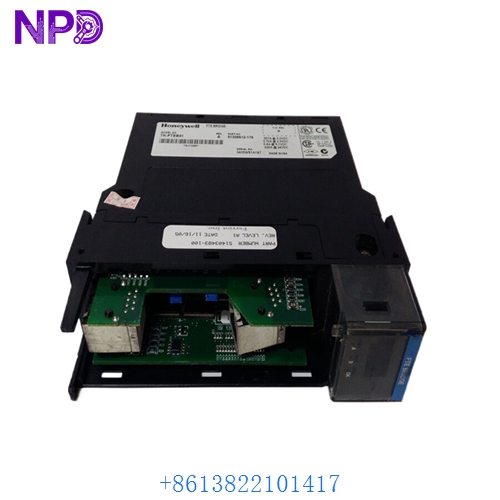

HONEYWELL TK-FTEB01 51309512-175
HONEYWELL TK-FTEB01 51309512-175
Country of Origin
This module is manufactured by Honeywell in the United States. It is a core component of the Experion PKS architecture, utilized globally in highly regulated industrial sectors.
Application Fields
The TK-FTEB01 is the backbone of the Honeywell control network in:
- Refining and Petrochemicals: Providing the redundant communication link for plant-wide C300 controller clusters.
- Power Generation: Ensuring zero-latency data transfer for turbine and boiler control logic.
- Pharmaceuticals: Supporting validated batch control systems where network downtime is unacceptable.
- LNG Terminals: Managing critical safety and process data across large-scale distributed sites.
Product Usage Instructions
- IOTA Mounting: Plug the TK-FTEB01 into its designated slot on the Input Output Termination Assembly (IOTA). Ensure the module is firmly seated and the locking mechanisms are engaged.
- Redundant Wiring: Connect Port A (Yellow) and Port B (Green) to the separate FTE switches. The FTE protocol uses these two paths simultaneously to ensure that no single cable or switch failure causes a loss of communication.
- Address Configuration: The FTEB address is typically assigned via the Honeywell Experion Configuration Studio. Ensure the Device Index matches the hardware settings to avoid IP conflicts on the control network.
- Diagnostic Monitoring: Use the “FTE Diagnostic Tool” on the Experion server to monitor the health of both paths. If one cable is disconnected, the system will trigger an alarm while maintaining full control via the second path.
- Hot-Swapping: In a redundant C300 setup, a faulty TK-FTEB01 can be replaced while the system is live. The secondary controller’s bridge will maintain the link during the swap.
Product Technical Description
The TK-FTEB01 is designed for Fault Tolerance rather than simple redundancy. Technically, it treats the dual Ethernet paths as a single logical network. If one path experiences high latency, packet loss, or a physical break, the FTE driver software on the bridge automatically routes traffic through the healthy path in less than a millisecond. This ensures that the C300 controller’s data (including alarms, events, and control loops) is never interrupted. The 51309512-175 version features enhanced hardware components to support the latest Experion software releases and larger I/O capacities.
Q&A (Common Questions)
Q: Can I use standard Ethernet cables for the FTEB? A: Yes, standard Cat5e or Cat6 cables work, but Honeywell recommends using the color-coded Yellow and Green cables to match the FTE standard for easier troubleshooting and maintenance.
Q: What is the difference between TK-FTEB01 and TC-FTEB01? A: “TK” usually refers to the coated (conformal coated) version for protection against corrosive environments (Class G3), while “TC” refers to the non-coated version.
Q: How many FTEB modules are needed for a redundant C300 controller? A: A redundant C300 pair typically requires two FTEB modules (one for the Primary and one for the Secondary controller) mounted on a redundant IOTA.
Q: Does it support 1 Gbps speeds? A: No, the TK-FTEB01 is designed for 100 Mbps, which is the standard deterministic speed for Honeywell Series C control networks to ensure signal stability.
Similar Model Recommendations
- Honeywell TK-PRR021 (C300 Controller Module)
- Honeywell TK-IOLI01 (I/O Link Interface)
- Honeywell TK-PACA01 (C300 Power Adapter)
- Honeywell 51309512-375 (Updated version or related hardware assembly)
- Honeywell 51309204-175 (Redundant FTEB IOTA)
For technical procurement or specific support regarding the Honeywell TK-FTEB01 51309512-175, please contact our Experion PKS technical team.
