Description
🌐 Product Overview

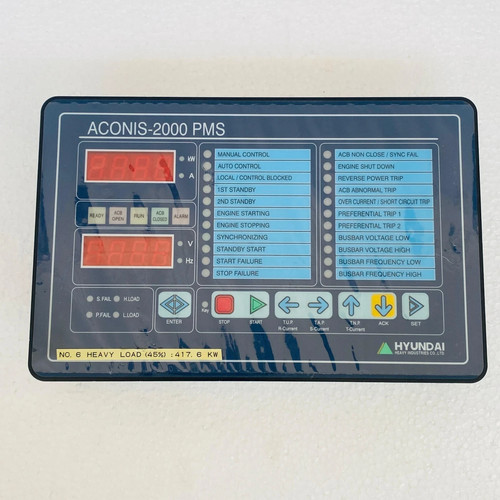

The Hyundai ACONIS-2000PMS is a rugged, marine-certified generator display and control panel designed for integration with Hyundai’s advanced Power Management System (PMS). Engineered to operate in demanding engine room environments, this high-performance unit provides real-time visualization, monitoring, and localized control of auxiliary marine diesel generators. It serves as the primary operator interface for tracking critical electrical parameters, processing safety alarms, and facilitating automated generator synchronization and load-sharing sequences across the shipboard electrical grid.
⚙️ Technical Specifications
- Series: ACONIS Automation & Control System Components
- Dimensions: 290mm x 210mm x 85mm
- Weight: 3.80 kg
- Origin: South Korea
- Display Engine: High-luminance industrial graphical display with adjustable marine dimming
- Supply Voltage: Dual Redundant 24V DC inputs (18 to 36V DC operational tolerance)
- Communications: Dual isolated RS-485 serial ports and high-speed redundant CAN bus interfaces
- Ingress Protection: IP56 rated front face (when flush-mounted on console panels)
🚀 Application Fields
- Marine Power Management: Centralized monitoring of auxiliary diesel generator sets (DLG) on container ships, tankers, and LNG carriers.
- Automated Synchronizing: Localized interface for managing automatic voltage regulators (AVR) and speed governors during parallel operations.
- Offshore Vessels: Control station for power plants on drilling rigs, supply vessels, and floating production storage and offloading (FPSO) units.
- Emergency Power Units: Reliable display link for emergency generator status, automated battery charging, and busbar coupling.
📖 Product Instructions
- Console Installation: Prepare a precise panel cutout inside the engine control room (ECR) console or the generator local control panel (LCP). Secure the display unit using the rear-side clamping brackets, making sure the anti-vibration sealing gasket is compressed tightly against the console face plate.
- Power & Signal Wiring: Connect independent, isolated 24V DC power feeds from separate battery banks to the dual power terminal blocks. Route communication cables (shielded twisted pair) away from high-voltage generator output busbars to mitigate electromagnetic interference.
- System Binding: Configure the generator unit node ID via the local setup matrix or upload the compiled configuration map using the system firmware tool to synchronize the panel with the primary ACONIS network.
✅ Initial Startup Checklist
- Verify that the primary and backup 24V DC auxiliary power supplies are stable and provide the correct voltage tolerances.
- Confirm that the generator current transformer (CT) and voltage transformer (PT) sensing lines are securely terminated on the input module cards.
- Turn on power and verify that the display passes its internal hardware boot-up diagnostic without presenting communication fault codes.
- Check that the front emergency stop button or mechanical trip interface operates smoothly and is unblocked.
🛠️ Maintenance & Care
- Vibration and Hardware Audits: Inspect the rear screw terminals and structural console clamps every six months to ensure ship vibrations haven’t caused loosening.
- Display Maintenance: Clean the anti-glare front glass using a soft, dry microfiber cloth. Do not use high-pressure air hoses or harsh chemical chemical cleaning agents which can delaminate the protective overlay.
- Filter and Vent Cleaning: If installed in a ventilated local housing, verify that air paths and filters are clear of oily residue or conductive dust common to shipboard engine spaces.
⚠️ Safety Precautions
- High Voltage Risk: Never adjust wiring on the rear terminal interface while the generator is running or while the main busbars are energized.
- Redundant Supply Compliance: Ensure both primary and backup power supply lines are active at all times to satisfy international marine classification society standards for automated machinery spaces.
- Parameter Locks: Restrict access to critical protective parameters (overcurrent trip times, reverse power limits) by ensuring the software configuration passcode is only given to authorized chief engineers.
🔍 Troubleshooting & FAQ
- Q: The display indicates a “System Comm. Failure” message and amber LEDs flash.
- A: This points to a break in data transmission between the display panel and the main ACONIS controller. Inspect the CAN bus termination resistors and verify that the shielded communication cable is grounded at only one end to eliminate ground loop currents.
- Q: The generator voltage and frequency values flash continuously or show erratic data.
- A: Check for loose physical connections at the transducer input terminal blocks. If connections are firm, calibrate the PT sensing line scaling factors inside the display’s service menu.
- Q: How can I change the background lighting intensity for night-time operation?
- A: Use the dedicated brightness arrows located on the front membrane keyboard, or adjust the dimming level remotely via the centralized bridge/ECR dimming command network.
