Description

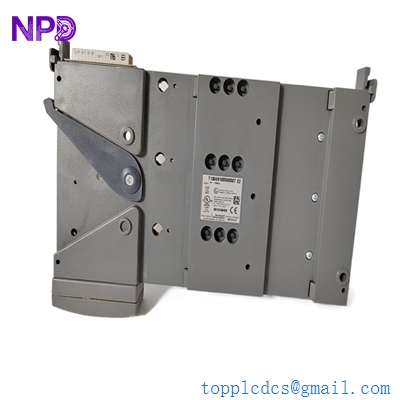

- Model: ICS Triplex 9100 (Rockwell Trusted Series)
- Brand: ICS Triplex / Rockwell Automation
- Series: Trusted™ TMR (Triple Modular Redundant) System
- Core Function: Main Controller/Processor Chassis for SIL 3 safety systems
- Product Type: System Chassis / Backplane Assembly
- Key Specs: 24 V DC Power | 20-slot capacity (typically) | TMR Bus architecture

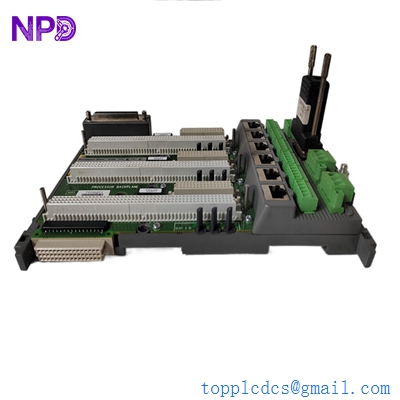

ICS TRIPLEX 9100
Key Technical Specifications
- System Architecture: Triple Modular Redundant (TMR) – 3-2-0 or 3-2-1-0 degradation
- Power Input: Redundant 24 V DC feeds (A and B)
- Chassis Capacity: Supports T8110B Processors, T8151B Comm Interface, and I/O
- Safety Rating: IEC 61508 SIL 3 Certified
- Backplane Type: Passive, high-reliability TMR inter-bus
- Mounting: 19-inch Rack Mount (standard industrial cabinet)
- Cooling: Required external fan tray (usually T8340 or similar)
- Status Indication: Mechanical health and power rail monitoring
- I/O Support: High-density TMR I/O modules (Digital, Analog, Pulse)
- Operating Temp: 0°C to +60°C (+32°F to +140°F)
Application Scenarios & Pain Points
If you’re looking at a 9100 chassis, you’re likely maintaining a “Trusted” system—the gold standard for high-reliability safety. The challenge with these older ICS Triplex racks isn’t just the hardware; it’s the physical integrity of the backplane connectors. Over 15–20 years of vibration and thermal cycling, the pins can develop micro-cracks. Since the 9100 is the “foundation” for the T8110B processors, a faulty chassis can cause “Voter Mismatch” errors that are nearly impossible to troubleshoot at the module level.
Typical Application Scenarios:
- Offshore Oil Platforms – Fire & Gas (F&G) Used where a system failure isn’t just a downtime issue—it’s a life-safety issue. The 9100 holds the voting logic modules that trigger deluges.
- Nuclear Power – Reactor Protection Providing the 2-out-of-3 (2oo3) voting hardware necessary for critical shutdown sequences.
- Refinery – Emergency Shutdown (ESD) Managing the high-speed logic required to isolate high-pressure vessels during a process excursion.
- Chemical Plants – Burner Management (BMS) Controlling fuel valves and flame scanners where a missed signal could lead to an explosion.
Case Study: The “Mystery Voter” Trip
Background: A major LNG terminal in Australia was experiencing intermittent “System Healthy” blinks on their Trusted TMR rack. The T8110B processors showed no internal faults, but the system would occasionally lose communication with the I/O bus.
The Problem: After weeks of swapping modules, the maintenance team realized the issue was the 9100 chassis itself. A slow leak in the cabinet cooling system had introduced moisture, leading to pin corrosion on the backplane of the processor slot. The TMR bus was “voting out” a healthy processor because the backplane was corrupting the data.
Solution: We supplied a refurbished and stress-tested 9100 chassis. Our team provided the original factory pin-out diagrams to help the client verify their field wiring before the swap.
Result:
- Stability Regained: Once the backplane was replaced, the “Voter Mismatch” alarms disappeared instantly.
- Longevity: The client avoided a $500,000 “Rip and Replace” upgrade to a newer system by simply fixing the foundation of their existing SIS.
- Customer Feedback: “Finding a 9100 in this condition saved us months of engineering time.”

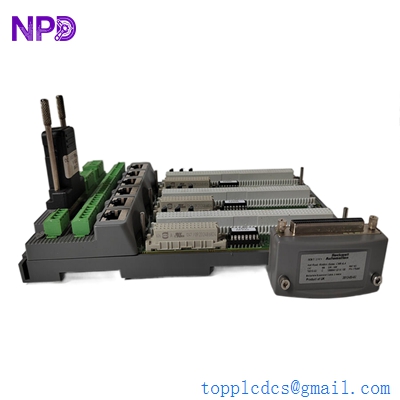

ICS TRIPLEX 9100
Compatible Replacement Models
The 9100 is part of the “Trusted” ecosystem. You have to be careful about the revision levels (e.g., T8100 vs 9100 nomenclature).
| Original Model | Successor/Alternative | Compatibility | Notes |
| ICS Triplex 9100 | Rockwell T8100 | ✅ Direct | T8100 is the standard 20-slot processor chassis. |
| 9100 Chassis | 9110 Expansion | ❌ Incompatible | 9110 is for I/O expansion only; no processor slots. |
| Legacy 9100 | Trusted S3 | ⚠️ Hardware Mod | Newer S3 systems require a total cabinet redesign. |
Engineer’s Note: Honestly, if you are replacing a 9100, check your power distribution modules (T8310/T8311). I’ve seen people buy a new chassis only to realize the power connectors on their old cables were scorched. If you’re replacing the rack, replace the power tails too.
Troubleshooting Quick Reference
| Symptom | Likely Cause | Action |
| “Power A” LED Dark | Blown fuse in PEM or PSU A. | Check the 24V supply at the rear terminal studs. |
| Proc Slot “Voter Fault” | Bent pin or corrosion in the 9100 backplane. | Inspect the 96-pin DIN connectors with a borescope. |
| Expansion Bus Fail | Faulty RCU/Bus cables or terminator. | Verify the 120-ohm terminators are in place at the end of the 9100 bus. |
| Hot-Swap Module Not Detected | Backplane guide rail misalignment. | Ensure the module is fully seated and the locking levers are engaged. |
❗ Strict Installation Warning: The 9100 chassis is incredibly heavy when fully populated. Never attempt to remove or install a chassis from a rack without first removing the T8110B processors and T8151B modules. The torque on the mounting ears can warp the backplane if you try to move it “loaded.” Also, remember that the Trusted system is “Positive Logic”—grounding an input can trigger a shutdown depending on your configuration!
