Description

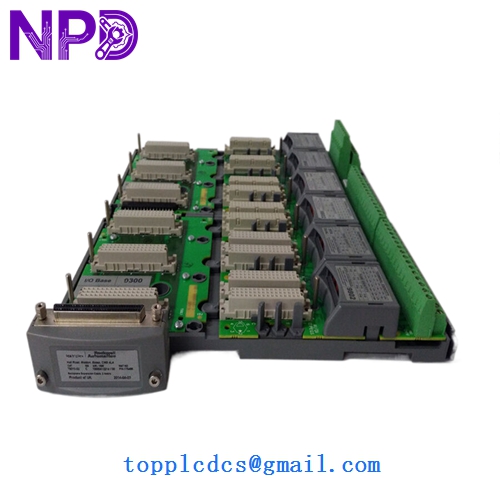

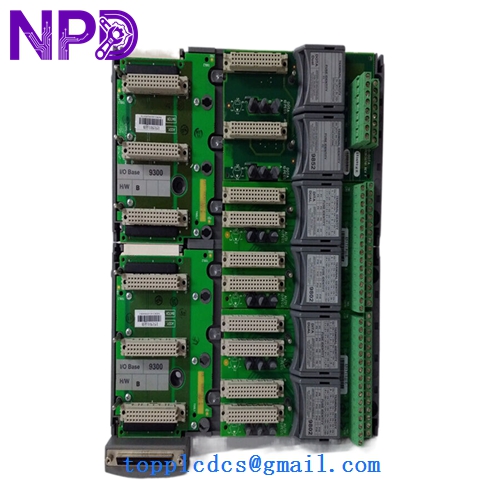

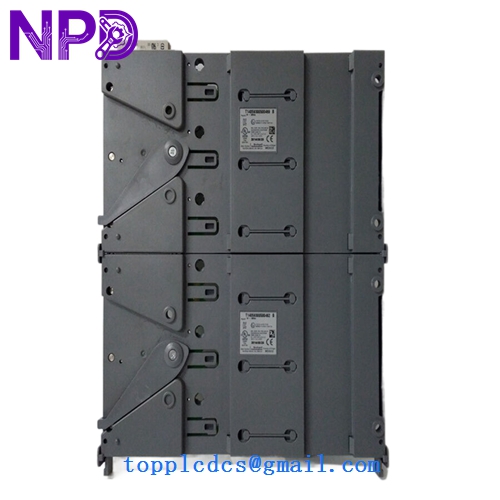

- Model: 9300 (Hardware P/N: 9852)
- Brand: ICS Triplex (Rockwell Automation)
- Series: Trusted™ TMR (Triple Modular Redundant) Safety System
- Core Function: High-integrity communication interface for peer-to-peer and DCS networking.
- Product Type: Communication Interface Module
- Key Specs: Ethernet connectivity | Modbus TCP/IP | Dual-redundant media
Key Technical Specifications
- Architecture: Fault-tolerant design compatible with Trusted TMR Controller
- Interface Ports: Multiple Ethernet ports for redundant network topologies
- Protocols: Modbus TCP (Master/Slave), Peer-to-Peer (Safety Layer), and OPC support
- Isolation: Optical isolation for noise immunity in industrial environments
- Backplane: 48V DC Trusted System Bus (Redundant)
- Processor: Dedicated high-speed communication co-processor
- Diagnostic LEDs: Module Status, Active, Network Link, and Fault indicators
- Configuration: Via Trusted Toolset (Engineering Workstation)
- Safety Rating: SIL 3 (when part of a complete Trusted configuration)
- Environment: Designed for high-availability power and oil & gas sectors
Application Scenarios & Pain Points
The 9300 9852 is the digital gateway for the ICS Triplex Trusted system—one of the world’s most robust safety platforms. While the controller handles the logic, the 9300 module manages the “Safety Peer-to-Peer” links. If this module fails, you lose the ability to coordinate shutdowns across different racks. In a refinery, this means your “Distillation Safety Rack” can’t talk to your “Tank Farm Safety Rack,” forcing a full site-wide manual watch or a total precautionary shutdown.
Typical Application Scenarios:
- Safety Instrumented Systems (SIS) Integrating the Trusted safety rack with a Rockwell PlantPAx or Honeywell Experion DCS for real-time monitoring of trip conditions.
- Emergency Shutdown (ESD) Handling the critical communication link between the safety logic and the remote human-machine interface (HMI).
- Fire and Gas (F&G) Systems Networking multiple Trusted racks across a facility to ensure fire suppression logic is synchronized globally.
Engineering Case Study: The “Blind” Safety Bus
Background: A North Sea offshore platform used the Trusted 9300 module to link their safety system to the main SCADA. They noticed that “Sequence of Events” (SOE) data was no longer reaching the control room.
The Problem: The “Active” LED on the 9852 module was blinking erratically. The module was struggling to process the heavy Modbus TCP traffic from a recently added third-party monitoring tool, leading to a buffer overflow and communication hangs.
The Solution: We provided a replacement 9300 9852 module. During the swap, we worked with the engineer to adjust the “poll rate” on their SCADA system to prevent future congestion.
Result: The hardware swap was “hot-performed” (as the Trusted system allows). Once the new module was seated and the network was rescheduled, the SOE data began flowing again. The platform avoided a “Lost Visibility” incident which would have required a production halt per safety regulations.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Differences | Change Impact |
|---|---|---|---|---|
| 9300 9852 | 9300 (Older Rev) | ⚠️ Software | Firmware version mismatch | May require toolset update |
| 9300 9852 | T8151B | ❌ Incompatible | Different Trusted Generation | Requires new rack architecture |
| 9300 9852 | 9300 9852 (Rev C+) | ✅ Direct | Latest hardware revision | Drop-in replacement |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to 9300 9852 | Quick Check | Action |
|---|---|---|---|---|
| FAIL LED On (Red) | Hardware Self-test Fail | ✅ High | Power cycle the module in the slot. | Replace module if LED stays Red. |
| No Link LED on RJ45 | Cable or Switch port | ⚠️ Medium | Swap the Ethernet cable. | Check the upstream switch. |
| “Peer-to-Peer” Error | Configuration CRC Error | ✅ High | Check “Trusted Toolset” diagnostics. | Re-download the network config. |
| Active LED Blinking | Standby Mode | ⚠️ Medium | Check if the redundant module is Active. | This is normal for a secondary unit. |
Engineer’s Pro-Tip: “Working with the ICS Triplex Trusted system is a different beast. When you’re swapping a 9852, remember that the ‘System Manager’ keeps a close eye on the module’s firmware. If you put in a card with a different firmware version than what’s defined in your Toolset project, the system might refuse to ‘Own’ the module. I always carry a laptop with the Trusted Toolset ready to verify the module’s internal state. Also, check the backplane connectors for any ‘bent pins’—the Trusted racks are rugged, but a forced insertion can ruin a very expensive day.”
If you need help identifying the specific firmware revision required for your 9300 module to match your current Trusted project, I have the version compatibility matrix ready.
Do you have the system’s ‘Diagnostic Buffer’ log? It’s the fastest way for me to tell you if the fault is in the 9852 card or the underlying network.
