Description
- Model: ICS TRIPLEX T8110B
- Brand: ICS Triplex (Rockwell Automation)
- Series: Trusted / Trusted-plus
- Core Function: Main TMR Processor for high-integrity safety-critical applications
- Product Type: Triple Modular Redundant (TMR) Processor Module
- Key Specs: SIL 3 Rated Fault-Tolerant Architecture Dual High-Speed Comm Links
Key Technical Specifications
| Attribute | Specifications |
| Architecture | Triple Modular Redundant (TMR) 2-out-of-3 Voting |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Processor Speed | High-performance RISC Architecture |
| Memory Protection | ECC (Error Correction Code) protected RAM |
| Redundancy | Hot-standby / Fault-tolerant execution |
| Diagnostics | >99% Self-diagnostic coverage |
| Communication | Peer-to-peer and Host communication via Trusted Bus |
| Operating Voltage | 24 V DC (Internal Bus Powered) |
| Programming | IEC 61131-3 Compliant (Toolset / ISaGRAF) |
| Mounting | Trusted Controller Chassis (Chassis Slot Resident) |

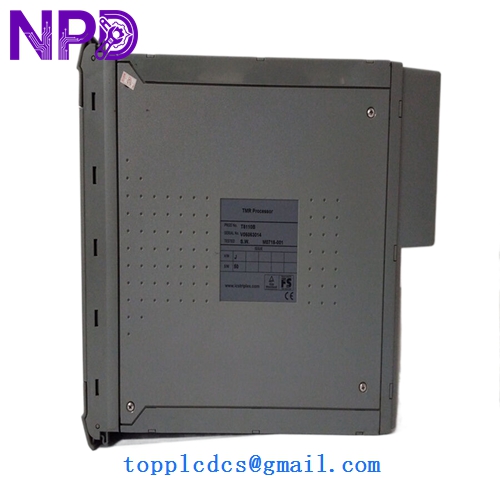

ICS TRIPLEX T8110B

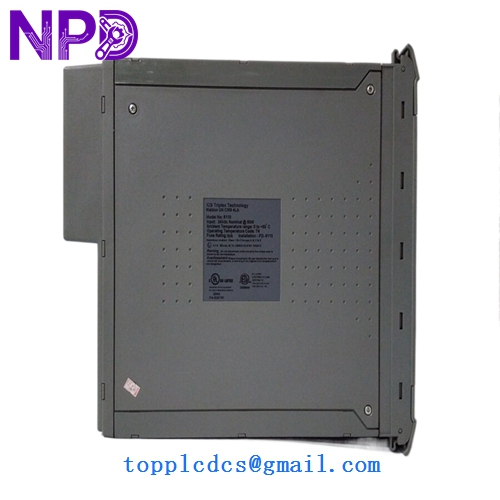

ICS TRIPLEX T8110B

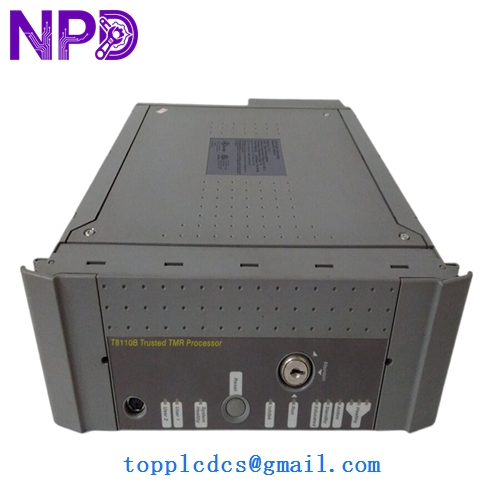

ICS TRIPLEX T8110B
Application Scenarios & Pain Points
The ICS Triplex Trusted system is the backbone of the world’s most hazardous environments. When a T8110B processor begins showing intermittent diagnostic faults, the clock starts ticking. Because this module manages the 2-out-of-3 (2oo3) voting logic, a degraded processor means the system is “running on one wing.” If a second fault occurs before you replace the first module, the entire safety system will initiate a total plant shutdown—costing millions in lost production and potentially creating dangerous pressure surges in the process line.
Typical Application Scenarios:
- Emergency Shutdown (ESD) Systems
Monitoring critical pressure and temperature setpoints in offshore oil platforms to trigger immediate valve closure in case of an excursion.
- Fire and Gas (F&G) Detection
Aggregating data from hundreds of flame and gas sensors to manage automated suppression systems in chemical storage facilities.
- Burner Management Systems (BMS)
Ensuring the safe start-up, operation, and shutdown of large-scale utility boilers and furnaces.
Case Study: Offshore Platform Communication Fault
Background: A North Sea oil platform utilized a Trusted TMR system for its ESD logic. One of the T8110B processors flagged a “Voter Discrepancy” alarm.
Problem: The system was still running, but it had lost its fault-tolerant capability. Lead times from the OEM for this specific hardware revision were quoted at 14 weeks due to specialized component shortages.
Solution: We provided a New Surplus T8110B from our local stock. Since it was an exact hardware match, the maintenance team performed a “Hot Swap.”
Result: The processor synchronized with the active TMR set within seconds. The platform returned to full SIL 3 safety integrity without a single minute of production downtime.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Change Required | Cost Impact |
| T8110B | T8110B | ✅ Direct | N/A | 1:1 Hot-swap | Base |
| T8110B | T8110C | ⚠️ Software | Enhanced Security / Speed | Possible Firmware Update | +15% |
| T8110B | A-Series Modules | ❌ Incompatible | Completely different OS | System Migration | +400% |
Engineer’s Note: While the T8110B is designed for hot-swapping, check your “System Healthy” LEDs on the chassis before pulling the old module. If the other two processors aren’t in a “Green/Healthy” state, pulling the faulty one will trigger a shutdown. Always verify the application version compatibility in the Toolset software before commissioning.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Spare Relevance | Quick Check | Action |
| HEALTHY LED Off | Internal Hardware Fault | ✅ High | Check diagnostic buffer for “Module Fail” | Replace module immediately |
| ACTIVE LED Flashing | Synchronization Issue | ⚠️ Medium | Verify communication cables on the backplane | Reseat module; check for bent pins |
| VOTER ALARM | Discrepancy in TMR logic | ✅ High | Compare register values in software | Replace if discrepancy persists |
| BATTERY LOW LED | RTC / SRAM Battery dead | ❌ Low | Measure battery voltage (if accessible) | Replace battery (Field replaceable) |
❗ Critical Warning: ESD Protection
I’ve seen more T8110 processors killed by static than by power surges. These are SIL 3 high-density boards. Never touch the backplane connector pins. Always use a grounded wrist strap when handling the T8110B. A single static discharge can compromise the diagnostic circuits, leading to “Ghost Faults” that are impossible to clear.
Quality & Testing Protocol:
Our ICS Triplex modules undergo a rigorous Multi-Stage Live Test. We utilize a Rockwell Trusted Chassis to perform a full TMR synchronization test. Using a Fluke 115 and ScopeMeter, we verify the 24V bus stability and communication signal integrity. A full Test Report including the firmware revision and “System Healthy” logs is provided with every shipment.
