Description

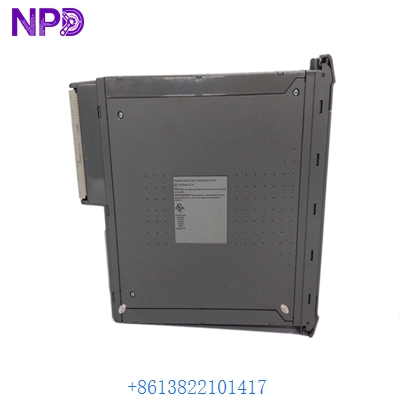

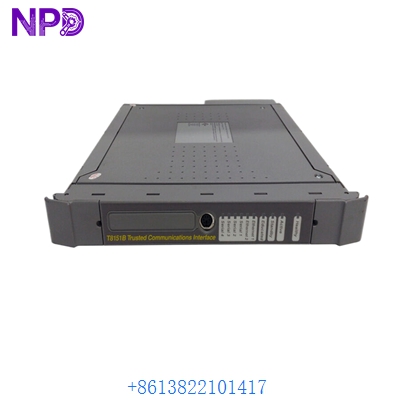

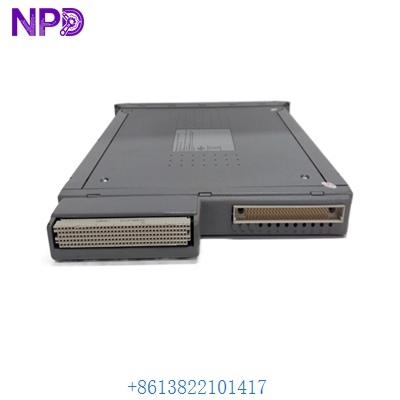

The ICS TRIPLEX T8151B is a high-reliability communications interface module designed for the Trusted TMR (Triple Modular Redundant) system. It acts as a bridge between the Trusted controller and external networks, ensuring secure and fault-tolerant data exchange in safety-critical applications like ESD (Emergency Shutdown) and F&G (Fire and Gas) systems.
Technical Parameters
- Model: T8151B
- System: Trusted TMR Architecture
- Communication Protocols: Modbus (TCP/RTU), Ethernet/IP, and Peer-to-Peer
- Port Configuration: Dual 10/100 Mbps Ethernet ports, RS-232/485 Serial ports
- Isolation: 500V DC Port-to-Chassis isolation
- Processor: Dedicated high-speed communications processor
Product Specifications
- Redundancy: Supports TMR (Triple Modular Redundant) voting logic
- Diagnostic Coverage: Self-testing for hardware and communication link failures
- Power Consumption: 10W (Typical)
- Status Indicators: LED array for Active, Standby, Healthy, and Port Activity
- Construction: Ruggedized module with high-grade shielding
- Compliance: SIL 3 certified for functional safety (IEC 61508)
Application Areas
- Offshore oil and gas platform safety systems
- Nuclear power plant control and protection
- Chemical refinery emergency shutdown (ESD)
- Subsea control system communications
- Critical infrastructure machinery protection
Product Q&A
- Q: What is the primary difference between the T8151 and the T8151B?
- A: The “B” revision typically includes updated firmware and hardware components for improved network security and throughput.
- Q: Can this module be used in a non-redundant system?
- A: While it can function in a single configuration, it is specifically optimized to leverage the Triple Modular Redundancy of the Trusted backplane.
- Q: Is the T8151B hot-swappable?
- A: Yes, it supports online replacement without interrupting the safety functions of the overall system.
