Description
The ICS Triplex T8231 is a robust, safety-critical 24V DC Digital Input Module designed for the Trusted TMR (Triple Modular Redundant) Safety System. It is engineered to monitor binary field signals—such as limit switches, proximity sensors, and emergency stop contacts—with the extreme reliability required for SIL 3-rated safety applications. The module utilizes fault-tolerant architecture to ensure that even in the event of internal component failures, the safety logic remains active, providing uninterrupted monitoring of process safety functions in critical energy, petrochemical, and manufacturing infrastructure.
Product Specifications
- Model Number: T8231
- Manufacturer: ICS Triplex (Rockwell Automation / Trusted)
- Product Series: Trusted TMR Safety System
- Function: 24V DC Digital Input Module
- Dimensions: 260 mm x 30 mm x 275 mm (Standard Trusted I/O module profile)
- Weight: 1.20 kg (2.65 lbs)
- Country of Origin: United Kingdom / USA
- Input Channels: 40 discrete input channels
- Input Voltage: 24V DC nominal
- Isolation: Galvanic isolation between field inputs and system backplane
- Diagnostic Features: TMR architecture with per-channel self-testing and fault reporting

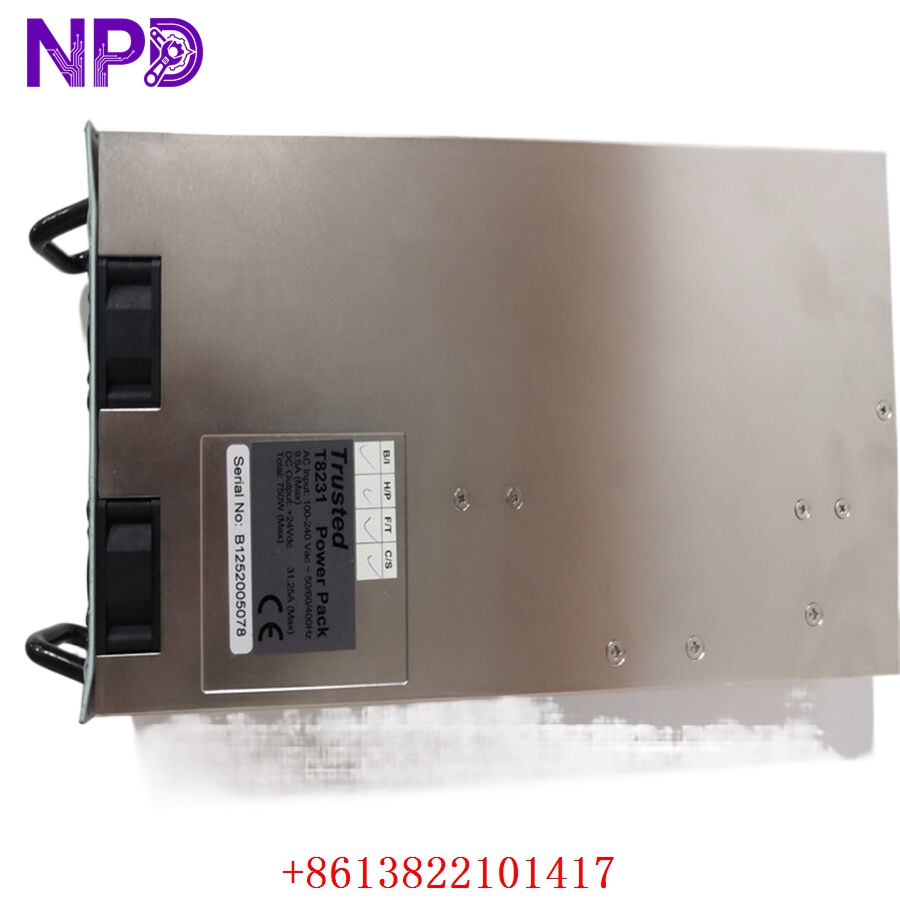

ICS Triplex T8231

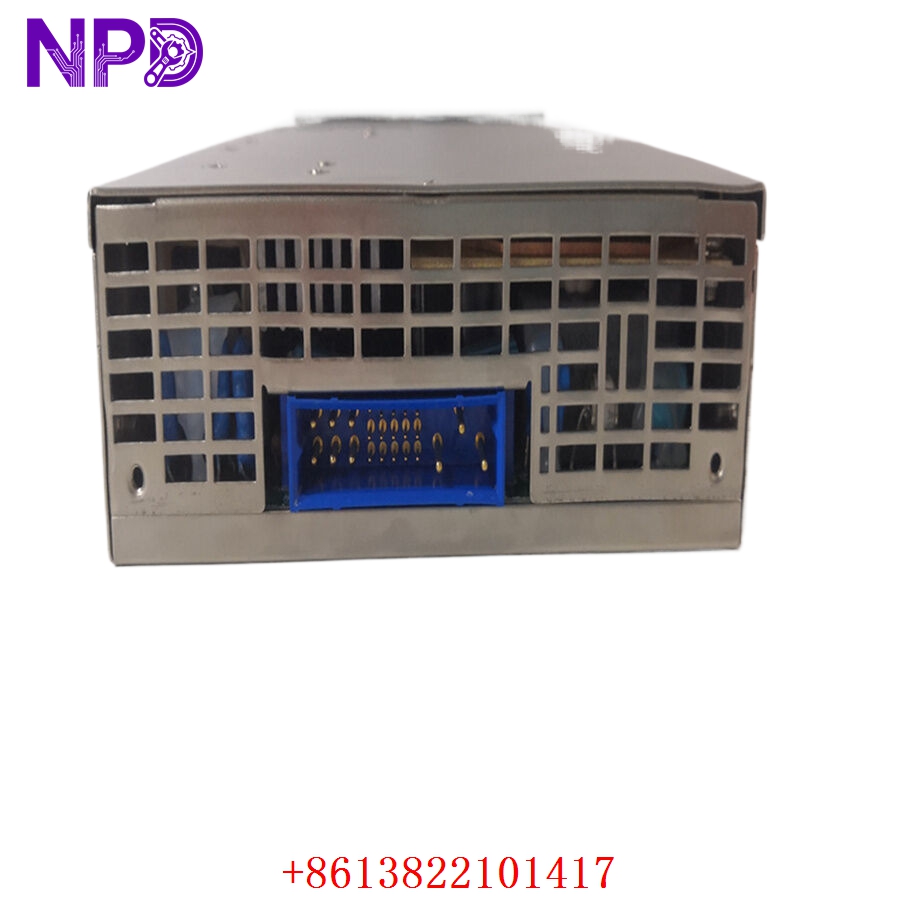

ICS Triplex T8231

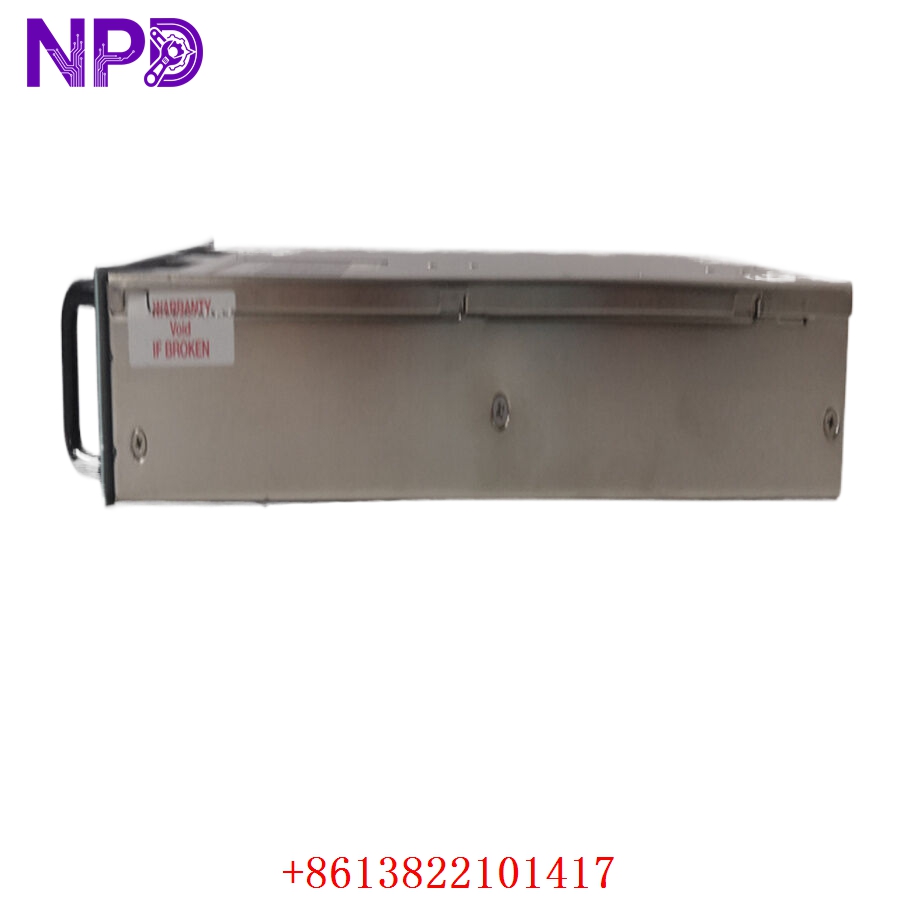

ICS Triplex T8231
ICS Triplex T8231
Applications
- Emergency Shutdown Systems (ESD): Monitors critical sensors that trigger automated shutdowns in chemical refineries and gas processing plants.
- Fire and Gas Protection: Interfaces with flame detectors, smoke sensors, and manual pull stations in industrial fire suppression systems.
- High-Integrity Pressure Protection (HIPPS): Provides high-speed, reliable input monitoring for pressure-transducer-based safety interlocks.
- Critical Machinery Protection: Manages status feedback for safety-rated interlocks on large rotating equipment such as turbines and compressors.
Product Usage Instructions
- Mounting and Installation: The T8231 is designed for use in a Trusted controller chassis. Slide the module into the designated I/O slot until the rear connector seats firmly into the backplane. Secure the module using the front-panel captive screws to ensure proper grounding and mechanical stability.
- Field Wiring: Connect field input devices to the associated Field Termination Assembly (FTA). Given the safety-critical nature of the system, ensure that wiring is routed according to site-specific safety diagrams and protected from mechanical damage and electrical noise.
- System Integration: Utilize the Trusted Toolset (TSET) software to configure the module. Assign signal tags to each of the 40 channels, define the input voltage thresholds, and configure the debounce settings to prevent false triggering from contact chatter or environmental noise.
- System Diagnostics: The T8231 performs continuous background diagnostics. The module’s front-panel status LEDs indicate whether the unit is healthy (green), in a fault state (red), or undergoing a diagnostic test. Always check the TSET diagnostic logs if an alarm indicates a channel or module fault.
Frequently Asked Questions (Q&A)
- Q: Can the T8231 be replaced while the safety system is operational? A: Yes, the module is hot-swappable. Because the Trusted system utilizes Triple Modular Redundant (TMR) architecture, you can remove a faulty T8231 without interrupting the safety function, as the remaining modules continue to process the safety logic.
- Q: What is the benefit of the 40-channel density? A: The high channel density allows for a more compact system footprint, significantly reducing the amount of space required in safety cabinets while streamlining the wiring process for large-scale safety instrumented systems.
- Q: How does the module differentiate between a field fault and a module fault? A: The T8231’s diagnostic logic continuously monitors the circuit current and voltage. By comparing these values against expected thresholds, the module can distinguish between a wiring fault (e.g., open circuit or short circuit) and an internal component failure, reporting the specific fault type via the TSET software.
- Q: Is the T8231 suitable for use in SIL 3 applications? A: Yes, the T8231 is fully certified for use in Safety Integrity Level 3 (SIL 3) applications when installed and configured according to the Trusted safety manual guidelines.
