Description
- Model: ICS TRIPLEX T8310 (Rockwell Automation)
- Brand: ICS Triplex / Rockwell Automation (USA/UK)
- Series: Trusted™ TMR (Triple Modular Redundant)
- Core Function: Manages communication and data synchronization between the Main Chassis and Expansion Chassis.
- Condition: Brand New Surplus (Original New), Non-Refurbished.
- Product Type: Expander Processor Module
- Key Specs: TMR Architecture | Triple Star redundant link | SIL 3 Certified | Fiber Optic support.

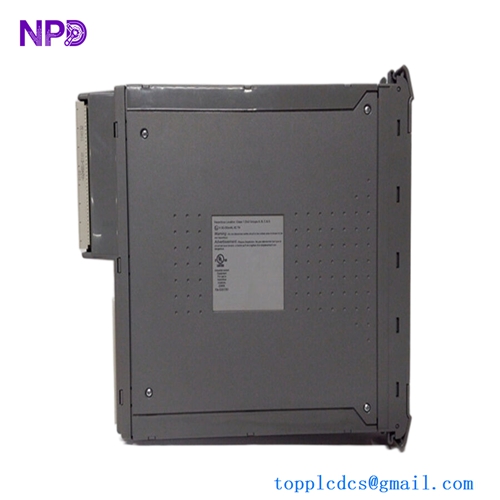

ICS TRIPLEX T9110
Key Technical Specifications
- Architecture: Triple Modular Redundant (TMR)
- Interface: Triple Star redundant expansion bus
- Safety Rating: IEC 61508 SIL 3 Certified
- Diagnostics: Comprehensive internal self-testing every 10ms
- Data Rate: High-speed proprietary expansion link
- Compatibility: Trusted Main Chassis (T9110) and Expansion Chassis
- Distance Support: Supports local (copper) and remote (fiber optic) expansion via TXL
- Fault Tolerance: 3-2-0 Degradation mode for expansion bus integrity
- Status Indicators: Healthy, Active, Standby, and Link Status LEDs
- Power Consumption: 25W (Maximum)
- Hot-Swap: Fully supported in redundant pairs
Installation & Configuration Guide
Replacing a T8310 is a high-sensitivity operation because it maintains the “nervous system” of a multi-chassis setup. If the expander link fails during a swap, the Main Processor (T9110) may lose contact with all I/O modules in the expansion rack, triggering a safety shutdown.
Phase 1: Pre-Installation (Est: 20 mins)
⚠️ System Integrity Warning:
- Redundancy Audit: Ensure the redundant partner T8310 in the same chassis is “Healthy” and “Active.” Never pull a module if its partner shows a “Fault” or “Standby” error.
- Fiber/Cable Check: Inspect the expansion cables or fiber optic transceivers. Many “Expander Faults” are actually due to damaged patch cables rather than the processor itself.
- Firmware Alignment: The T8310 firmware must be compatible with the Main Processor (T9110) firmware. A mismatch will prevent the chassis from synchronizing.
Phase 2: Hardware Swap (Est: 10 mins)
- Module Identification: Locate the module with the red “FAULT” LED.
- Extraction: Open the top and bottom ejector levers. Pull the module out slowly. The expansion bus will seamlessly transition to the redundant partner.
- Connector Inspection: Check the high-density backplane connector for dust or bent pins.
- Insertion: Slide the new T8310 into the slot. Push firmly until the levers lock. The module will initiate its Power-On Self-Test (POST).
Phase 3: Link Synchronization (Est: 15 mins)
- Link Establishment: Watch the “Link” LEDs. They should begin flashing as the module negotiates with the Expansion Chassis and eventually turn solid.
- System Workbench: Verify in the software that the TMR triad for the expansion bus is back to “3-2-0” status.
- SOE Review: Check the Sequence of Events (SOE) log to confirm no communication “glitches” occurred during the swap.
ICS TRIPLEX T9451
Customer Cases & Industry Applications
Case 1: Refinery Main-to-Satellite Link Recovery Background: A refinery in the Middle East utilized a Trusted system where the Main Chassis was linked to a Satellite Chassis 500 meters away via T8310 expanders and fiber optics. Task: One T8310 failed due to an internal power circuitry issue. The system was running on a single expander link, meaning a single cable break would shut down the entire sulfur recovery unit. Action: We supplied a New Surplus T8310 via “Next Flight Out” service. Result: The site team replaced the module live. Redundancy was restored within 24 hours, mitigating the risk of a $500k-per-day production loss.
Case 2: Offshore Platform Multi-Chassis Expansion Background: During a platform expansion, an EPC contractor needed an additional T8310 to integrate a new I/O rack into the existing ESD (Emergency Shutdown) system. Task: The OEM had a 26-week lead time for new Trusted hardware, which threatened the project’s commissioning date. Action: We provided two New Surplus T8310 modules (one for use, one for on-site spare). Result: The contractor met the commissioning deadline. The project manager noted: “Finding new-condition expanders for an older Trusted v10 system saved the project schedule.”
Frequently Asked Questions (FAQ)
Q: Can I replace a T8310 with a T8311? A: While they are related, the T8310 and T8311 have different hardware revisions and performance profiles. In a TMR system, it is vital to keep the expander processors identical within the same chassis to avoid synchronization jitter. Always match the model number exactly for a 1:1 replacement.
Q: Does the T8310 handle the actual I/O logic? A: No. The T8310 is a “messenger.” It passes data between the I/O modules in the expansion chassis and the Main Processor (T9110). If the T9110 is the “brain,” the T8310 is the “spinal cord.”
Q: Why choose “New Surplus” for an Expander Processor? A: The T8310 handles high-speed data traffic. Used modules often have degraded electrolytic capacitors or “tired” transceivers that cause intermittent “Link Dropped” errors—the hardest faults to troubleshoot. Our New Surplus units have 0 run-hours, ensuring the highest signal integrity for your safety bus.
Q: Does the module come with the fiber optic transceivers? A: Usually, the T8310 is the processor module itself. The fiber optic conversion often happens at the TXL (Trusted Expansion Link) or via specific mezzanine cards/connectors. Please specify your cabling type (copper or fiber) when inquiring so we can ensure you have the right accessories.
