Description
The ICS Triplex T8403 is a high‑integrity 24 Vdc digital input module designed for use in safety‑critical control systems based on Triple Modular Redundancy (TMR). It belongs to the Trusted product family and is used to bring large numbers of field contact signals—such as pushbuttons, limit switches, pressure switches, and proximity sensors—into a safety PLC while maintaining very high availability and diagnostic coverage. The module’s architecture uses three independent measurement paths per input and majority voting to ensure that a single internal fault cannot lead to an unsafe output state. This makes the T8403 suitable for applications like emergency shutdown (ESD), fire and gas (F&G), burner management systems (BMS), and turbine protection, where SIL 3 levels of functional safety are required.

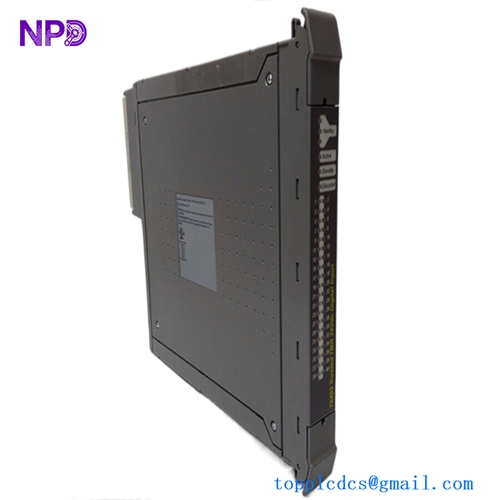

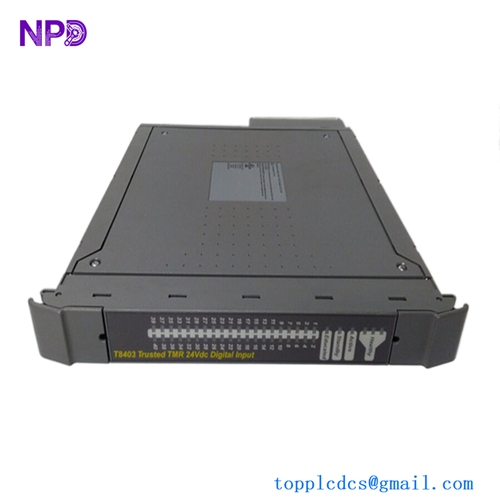

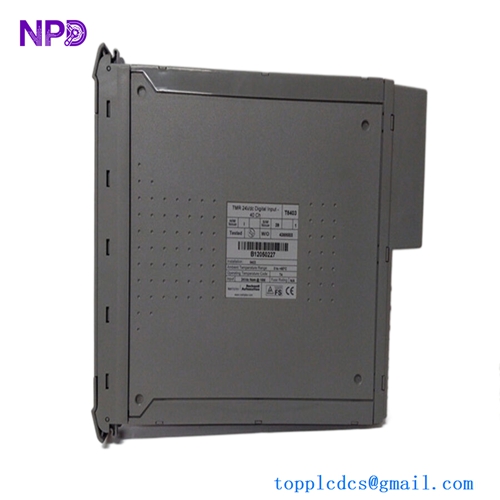

ICS TRIPLEX T8403
Product parameters
The T8403 provides 40 digital input channels, all intended for nominal 24 Vdc field signals. Each channel senses the presence or absence of voltage and converts it into a logic value for the safety processor. Internally, each input is terminated with a defined impedance so that it presents a predictable load to the field wiring, and the module continuously measures the input voltage to determine whether the point is in the “on” or “off” state. The voltage thresholds are set with a comfortable margin around 24 Vdc, so that noise, small supply variations, and transient disturbances do not cause false state changes.
Power for the T8403 is taken from the system backplane. The backplane provides a low‑voltage DC supply, typically in the 24 V range, and the module uses onboard DC‑DC conversion to generate the isolated supplies needed for its measurement circuitry and logic. The overall power consumption is modest for a high‑density input card, but system designers must still account for it in rack power‑budget calculations, especially in fully populated, redundant systems.
Isolation is a key parameter for this type of module. The field input side is galvanically isolated from the logic and communication side, so that ground faults or surges on the field wiring do not propagate into the processor or communication bus. At the same time, the 40 channels share a common reference on the field side; they are not isolated from each other, which is normal and efficient for high‑density digital inputs. The isolation barrier is dimensioned to withstand industrial overvoltages and to meet the creepage and clearance distances demanded by safety standards.
Diagnostics are built into each input channel. The module continually checks for internal faults on its analog‑to‑digital conversion paths and on its reference circuitry. In many safety applications, line monitoring can also be implemented so that an open‑circuit or short‑circuit in the field wiring is detected. When such monitoring is configured, the module can report a diagnostic alarm separate from the normal process state, allowing maintenance to fix a wiring problem before a real safety demand occurs.
Sequence‑of‑events (SOE) capability is commonly associated with this class of safety input module. The T8403 is designed to timestamp input transitions with millisecond‑class resolution against the system clock. That allows operators and analysts to reconstruct the exact order of trips and alarms during a plant upset, which is critical when determining root cause and verifying that safety functions operated as designed.
Mechanically, the module is implemented as a plug‑in card that fits into a proprietary Trusted I/O rack. It occupies a single slot and connects to the rack via a backplane connector that carries both power and communication signals. Field wiring is terminated either on a removable terminal block attached to the front of the module or on a separate marshalling arrangement connected by a ribbon or cable harness, depending on the system design. The housing is designed to provide good airflow and thermal characteristics while protecting the electronics from dust and mechanical damage.
The environmental rating of the T8403 reflects its intended use in industrial plants. It is specified to operate over a wide ambient temperature range typical of control rooms and equipment cabinets and to withstand vibration and shock levels present in offshore platforms, compressor stations, and power plants. Humidity tolerance and protective coatings on the PCB help resist condensation and corrosive atmospheres. The design and test regime aim to achieve a long mean time between failures, which supports high safety availability when combined with the TMR architecture.
ICS TRIPLEX T8403
Datasheet‑style summary
Summarizing the main technical characteristics in a datasheet style:
- Function: 24 Vdc digital input module for TMR safety systems.
- Number of channels: 40 independent digital inputs.
- Input type: voltage‑sensing inputs for nominal 24 Vdc signals.
- Architecture: Triple Modular Redundant measurement, with voting per channel.
- Power: low‑voltage DC from system backplane; onboard conversion for measurement and logic.
- Isolation: galvanic isolation between field inputs and internal logic; shared common reference among channels on the field side.
- Diagnostics: continuous self‑test of input circuitry; support for line fault detection when used with appropriate field terminations.
- SOE capability: time‑stamped state changes with millisecond‑class resolution.
- Mechanical: single‑slot plug‑in module for Trusted racks; front‑facing field connectors.
- Environmental: industrial temperature, vibration, and humidity ratings suitable for hazardous‑area and process‑industry installations.
- Safety: designed to be used as part of a SIL 3 safety instrumented system when installed and configured according to the platform’s safety manual.
These characteristics define the T8403 as a high‑density, high‑integrity front end for safety‑related digital inputs.
Origin
ICS Triplex, later incorporated into a major automation vendor, developed and manufactured the Trusted TMR product line—including the T8403 module—for the global safety and critical‑control market. Production has historically been associated with North American and UK facilities specialized in safety‑certified hardware, under quality systems aligned with IEC 61508 and related standards. Modules like the T8403 are shipped worldwide for use in oil and gas, chemicals, power generation, and other sectors.
Recommended related ICS Triplex Trusted modules
Within the same Trusted family, several related modules are commonly selected alongside a T8403 digital input module:
- T8402 – A lower‑density or differently rated digital input module, used when fewer channels or different voltage levels are required.
- T8423 – Digital output module used to drive solenoids, relays, and contactors in safety shutdown circuits.
- T8310 – Analog input module for 4–20 mA or other process signals (pressure, temperature, flow) in the same TMR architecture.
- T8311 – Analog output module providing 4–20 mA control signals to valves and variable‑speed drives in safety functions.
- T8160 or similar processor modules – Trusted TMR controllers that execute the safety logic and communicate with T8403 and other I/O modules over the Inter‑Module Bus.
Together, these modules form a complete, triplicated safety instrumented system: the processor performs the safety logic, the T8403 acquires digital field states, the analog modules handle continuous measurements, and the output modules command the final elements.
