Description
Product Description
The ICS Triplex T8403 is a 40-channel digital input module designed for the Trusted Triple Modular Redundant (TMR) control system. It monitors 24 V DC field signals from devices such as switches, sensors, and status contacts, supporting high-integrity monitoring in safety-critical industrial applications.
The T8403 provides triple-modular-redundant signal processing, built-in diagnostics, and Sequence of Events (SOE) reporting with 1 ms resolution. It supports configurable field line monitoring and online replacement when the system rack configuration and maintenance procedures permit. Typical applications include emergency shutdown (ESD), fire and gas protection, and safety instrumented systems. Confirm system compatibility, terminal arrangements, and configuration requirements before installation.

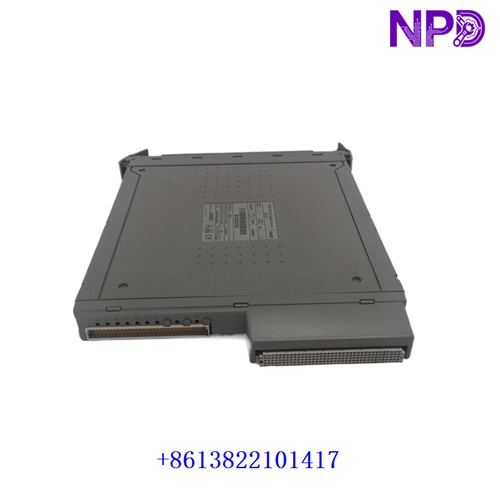

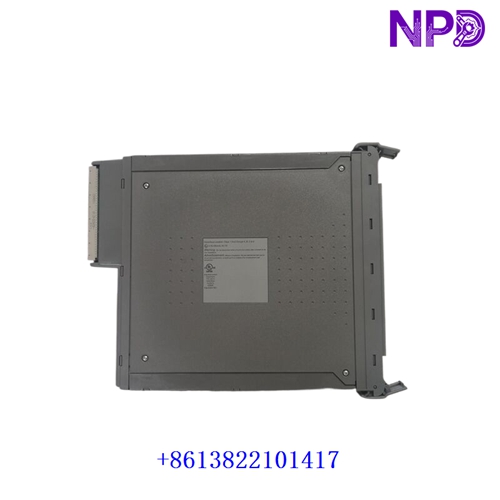

ICS TRIPLEX T8403
Product Parameters
- Brand: ICS Triplex
- Model: T8403
- Series: Trusted TMR
- Product Name: 40-Channel Digital Input Module
- Input Type: 24 V DC digital input
- Number of Channels: 40
- Input Voltage Range: Approximately -6 to +36 V DC measurement range; verify operating thresholds against the applicable datasheet
- Redundancy Architecture: Triple Modular Redundancy (TMR)
- Sequence of Events (SOE): 1 ms resolution
- Diagnostics: Module and channel status monitoring; configurable line monitoring
- Safety Level: Designed for SIL 3 safety applications when used in an appropriately certified system
- System Compatibility: ICS Triplex Trusted T8100/T8300 system hardware; confirm the applicable rack and slot requirements
- Power Requirements: Supplied through the system backplane; confirm voltage and power limits in the official datasheet
- Dimensions: Approx. 30.2 × 26.4 × 3 cm; confirm physical dimensions before installation
- Weight: Approx. 1.2 kg; shipping weight may differ
- Place of Manufacture: Not confirmed; check the product label and purchasing documentation
- Country of Origin: Verify from the individual unit’s label or documentation
- Product Status: Discontinued / obsolete according to supplier lifecycle listings; verify current OEM support status
- Discontinued: Reported as obsolete; compatible replacement options require engineering verification
