Description
Product Overview
The ICS TRIPLEX T8448 is a high-integrity Trusted™ Triple Modular Redundant (TMR) Digital Input Module designed for safety-critical and mission-critical industrial control systems. As part of the ICS Triplex Trusted system architecture, the T8448 provides reliable acquisition and processing of digital field signals while maintaining continuous system availability and fault tolerance.
The module is engineered to operate in environments where process safety, deterministic behavior, and system integrity are essential. Through its triple modular redundancy design, the T8448 ensures that a single fault—whether in hardware, signal path, or processing logic—does not compromise system operation or safety. This makes it especially suitable for emergency shutdown systems (ESD), fire and gas systems (F&G), burner management systems (BMS), and high-availability process protection applications.
The T8448 continuously monitors its own internal health and the validity of connected field signals, providing advanced diagnostics and fault reporting. Its architecture supports online replacement and maintenance, minimizing process downtime and supporting long-term plant reliability.

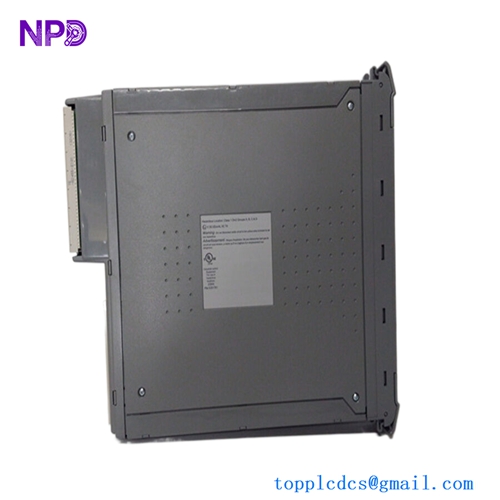

ICS TRIPLEX T8448
Product Parameters (Technical Specifications)
| Parameter | Description |
|---|---|
| Product Model | ICS TRIPLEX T8448 |
| Module Type | Trusted TMR Digital Input Module |
| Input Channels | 24 digital input channels |
| Input Voltage | 24 VDC (industrial standard) |
| Redundancy | Triple Modular Redundant (TMR) |
| Signal Processing | 2oo3 (Two-out-of-Three) voting |
| Input Isolation | Channel-to-channel and system isolation |
| Diagnostics | Continuous self-test, line monitoring, discrepancy detection |
| Fault Tolerance | Single fault tolerant without loss of function |
| Hot Replacement | Supported (online replacement capability) |
| Communication | Trusted system backplane interface |
| Mounting | Trusted system chassis |
| Operating Temperature | Industrial operating range |
| System Compatibility | ICS Triplex Trusted Safety System |
| Safety Integrity | Designed for high Safety Integrity Level applications |
| Country of Origin | United Kingdom |
Product Datasheet Description
The ICS TRIPLEX T8448 Trusted Digital Input Module is responsible for acquiring and validating discrete field signals from sensors, switches, and safety devices. Each input channel is internally processed through three independent signal paths, enabling continuous comparison and validation using majority voting logic.
Key Functional Characteristics
Triple Modular Redundancy Architecture
Each digital input is processed by three independent circuits. The module applies a 2oo3 voting mechanism to determine the correct signal state, ensuring immunity to single-point failures.
Advanced Diagnostics and Monitoring
The T8448 continuously checks for input discrepancies, stuck-on or stuck-off conditions, short circuits, open circuits, and internal hardware faults. Diagnostic data is made available to the system controller for alarm handling and maintenance planning.
Fail-Safe Design Philosophy
In the event of detected faults or abnormal signal behavior, the module transitions to a predefined safe state. This behavior is critical in safety instrumented systems where predictable failure modes are required.
Online Maintenance Capability
The module supports online replacement without shutting down the control system, allowing maintenance activities to be performed while the process remains operational.
Electrical Isolation and Noise Immunity
Designed for harsh industrial environments, the T8448 includes robust isolation and filtering to protect against electrical noise, transient disturbances, and ground loops.
Seamless System Integration
The module integrates directly with the ICS Triplex Trusted controller and chassis, ensuring deterministic communication and synchronized system operation.
ICS TRIPLEX T8448
Country of Origin
The ICS TRIPLEX T8448 is manufactured in the United Kingdom under strict quality control and safety system manufacturing standards. Each module undergoes comprehensive testing, including functional verification, fault injection testing, and environmental stress validation, to ensure compliance with safety-critical industrial requirements.
Typical Application Areas
The T8448 is widely used in industries that demand continuous availability and functional safety, including:
- Oil and gas production and refining
- Petrochemical and chemical processing plants
- Power generation and turbine protection systems
- Offshore platforms and FPSO facilities
- Pipeline safety and compressor stations
- Fire and gas detection systems
- Emergency shutdown and plant protection systems
In these environments, the T8448 provides reliable digital signal acquisition for safety interlocks, emergency stops, valve position feedback, and protective device status monitoring.
Frequently Asked Questions (FAQ)
Q1: What type of signals does the T8448 handle?
A1: The T8448 processes 24 VDC digital input signals from field devices such as switches, relays, and safety sensors.
Q2: How does the TMR architecture improve safety?
A2: Triple Modular Redundancy allows the module to tolerate a single fault without losing correct operation by using majority voting logic.
Q3: Can the module be replaced while the system is running?
A3: Yes, the T8448 supports online replacement, enabling maintenance without process interruption.
Q4: Is the module suitable for safety instrumented systems?
A4: Yes, it is designed specifically for high-integrity safety systems requiring deterministic behavior and fault tolerance.
Q5: What diagnostics are available?
A5: The module provides continuous self-diagnostics, input validation, discrepancy detection, and fault reporting to the system controller.
Summary
The ICS TRIPLEX T8448 Trusted TMR Digital Input Module is a robust, fault-tolerant solution for safety-critical industrial applications. Its triple modular redundancy design, advanced diagnostics, fail-safe behavior, and online maintenance capability make it an essential component in modern safety systems. By ensuring reliable digital signal acquisition and continuous system availability, the T8448 helps protect personnel, equipment, and processes in the most demanding industrial environments.
