Description
| Parameter | Specification |
| Model Number | T8461 |
| Manufacturer | ICS Triplex (Rockwell Automation) |
| Series | Trusted TMR (Triple Modular Redundant) |
| Number of Channels | 40 Output Channels |
| Output Type | 24V DC / 48V DC Digital Output |
| Architecture | Triple Modular Redundant (TMR) |
| Output Current | 0.75A Continuous (per channel) |
| Isolation | 2500V Impulse Withstand |
| Response Time | < 0.5 ms (Turn on/off delay) |
| SOE Resolution | 1 ms (Sequence of Events) |
| Safety Integrity Level | IEC 61508 SIL 3 |

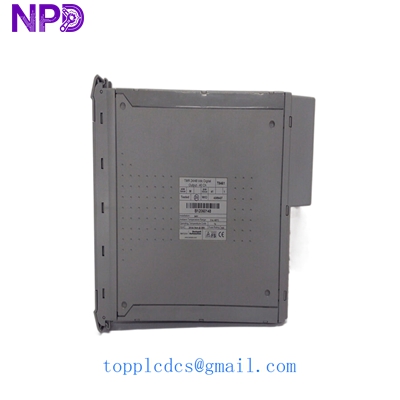

Rockwell ICS TRIPLEX T8461

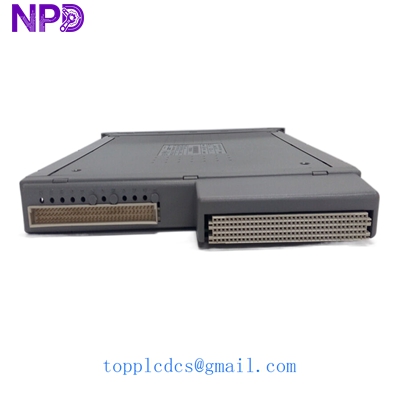

Rockwell ICS TRIPLEX T8461

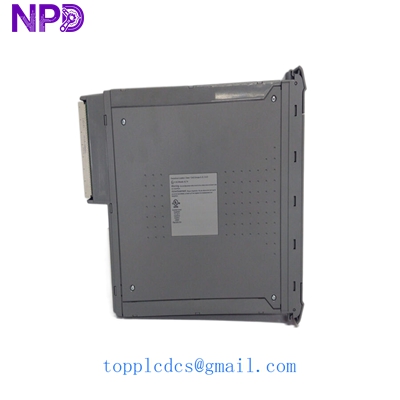

Rockwell ICS TRIPLEX T8461
The ICS Triplex T8461 is a high-integrity digital output module designed for the Trusted TMR system, providing 40 redundant channels for safety-critical industrial applications. This circuit board utilizes a triplicated diagnostic architecture that monitors each output for open-circuit and short-circuit faults without the need for external fuses. Its advanced line-monitoring capabilities and 1 ms Sequence of Events (SOE) reporting make it an essential component for emergency shutdown (ESD) and burner management systems where fault tolerance and precise diagnostic data are mandatory.
Operational Guidelines and Maintenance
Product Operation Tips:
- Triple Redundancy: The module performs internal 2-out-of-3 voting for every output; ensure the controller’s safety application is configured to utilize the triplicated diagnostic registers for full system visibility.
- Hot Swapping: This module supports online hot-replacement; when replacing, ensure the “Educated” LED is lit before the standby module takes over the active load.
- Field Power Groups: The 40 channels are divided into five isolated power groups (8 channels each); verify that field power is correctly distributed across these groups to maintain electrical isolation.
Maintenance Procedures:
- LED Diagnostics: Monitor the front panel LEDs daily; a steady green “Health” LED indicates normal TMR operation, while amber or red indicators on specific channels signify field wiring faults or over-current latches.
- Over-current Reset: If an output latches off due to an over-current event, the fault must be cleared in the software environment or via a system reset once the physical short is resolved.
- Firmware Synchronization: During periodic maintenance, verify that all three internal microprocessors are running synchronized firmware versions to prevent “Discrepancy” errors in the TMR voting logic.
