Description

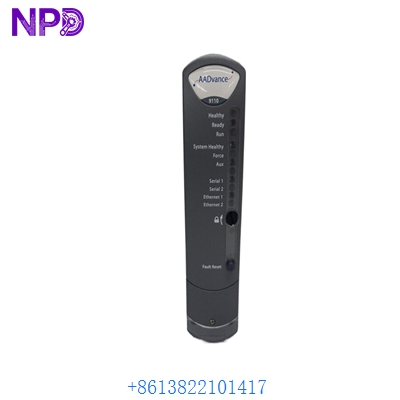

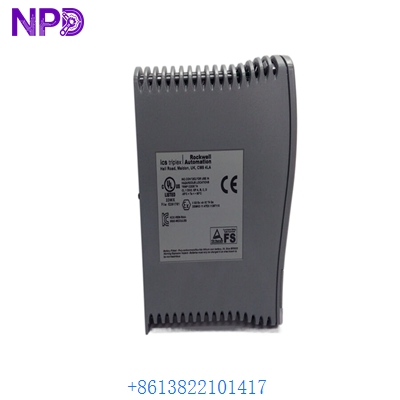

The ICS TRIPLEX T9110 is a high-availability main processor module designed for the Trusted Triple Modular Redundant (TMR) system. It provides the core computational intelligence for safety-critical control applications, utilizing a 3-2-0 voting architecture to ensure continuous operation and fault tolerance in the most demanding industrial environments.
Technical Parameters
- Model: T9110
- System Architecture: Triple Modular Redundancy (TMR)
- Processor: High-speed 32-bit RISC processing core
- Memory: ECC-protected RAM for logic and data integrity
- Scan Time: High-speed logic execution (typically < 50ms)
- Clock Sync: Internal hardware synchronization across TMR slices
Product Specifications
- Safety Rating: SIL 3 certified (IEC 61508)
- Power Consumption: 25W (Typical at 24V DC)
- Diagnostics: Comprehensive self-testing and fault-logging
- Front Panel: LED indicators for Healthy, Active, Standby, and Fault
- Construction: Heavy-duty modular plug-in unit
- Isolation: Optically isolated communication and logic paths
Application Areas
- Emergency Shutdown Systems (ESD)
- Fire and Gas (F&G) detection and mitigation
- Burner Management Systems (BMS)
- Critical turbomachinery control and protection
- Nuclear power plant safety-related automation
Product Q&A
- Q: How does the T9110 handle internal hardware failures?
- A: Through its TMR design, the module votes between three internal slices; if one fails, the other two maintain control without system interruption.
- Q: Is the T9110 compatible with older T8000 series racks?
- A: The T9110 is specifically designed for the Trusted controller chassis and may require specific firmware versions for legacy integration.
- Q: Can user logic be updated while the T9110 is online?
- A: Yes, the Trusted system supports “Online Changes” to the application program without stopping the controlled process.
