ICS TRIPLEX T9402 Digital Input Module

Description

• Model: ICS TRIPLEX T9402
• Brand: ICS Triplex / Rockwell Automation
• Series: Trusted TMR (Triple Modular Redundant) Safety System
• Core Function: Monitors field digital input signals in SIL3 safety applications
• Product Type: Digital Input Module
• Key Specs: 24 V DC inputs TMR architecture Hot-swappable design

• Module Type: Trusted TMR Digital Input Module
• Input Voltage: 24 V DC nominal
• Input Channels: Typically 40 digital input channels
• Safety Integrity Level: SIL3 certified application support
• Architecture: Triple Modular Redundant (TMR)
• Isolation Type: Channel-to-channel and system isolation
• Diagnostics: Online fault detection and self-diagnostics
• Hot Swap Capability: Supported during system operation
• Communication Bus: Trusted backplane architecture
• Response Time: Millisecond-level safety processing
• Status Indicators: Front-panel LED diagnostics
• Operating Temperature: 0 °C to +60 °C
• Mounting Type: Trusted system chassis installation
• Power Consumption: Depends on active channel count
• Application Area: Emergency shutdown and critical process safety systems

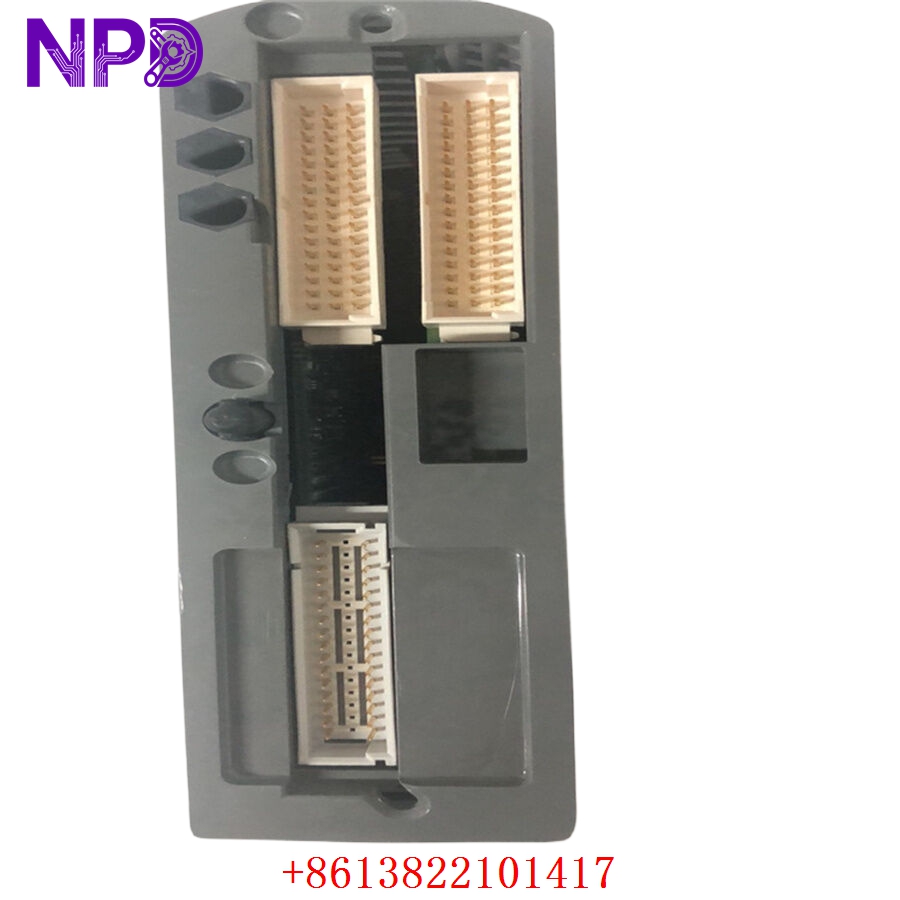

TRIPLEX ICS T9402

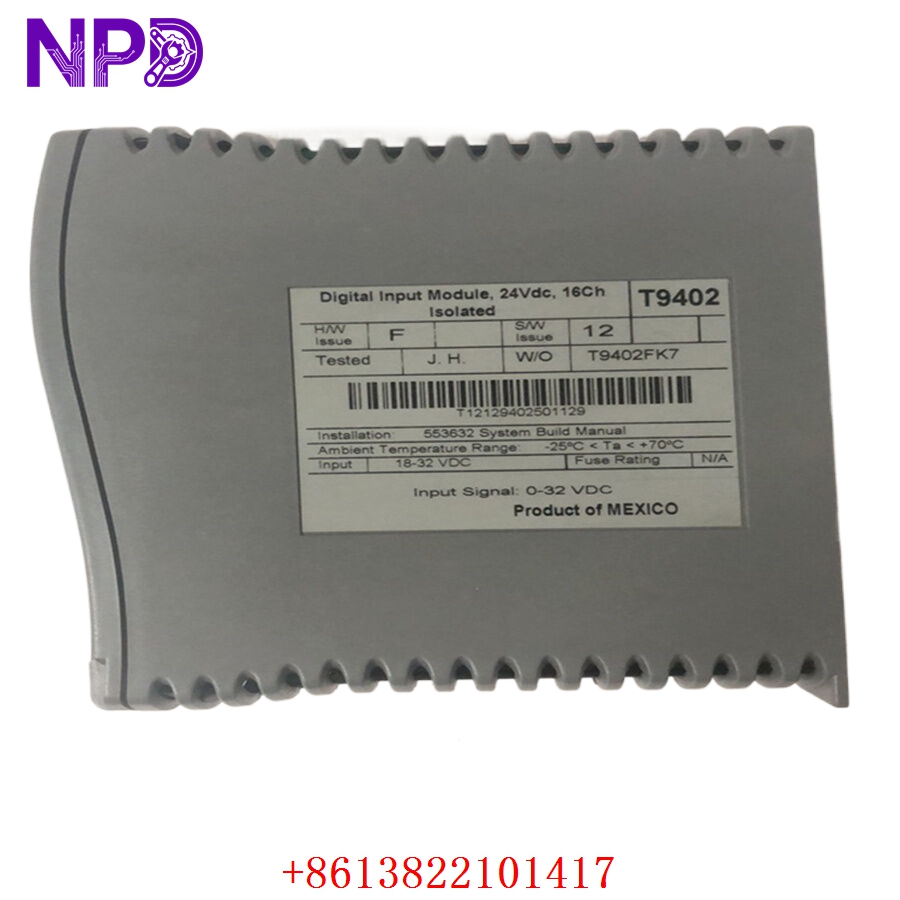

TRIPLEX ICS T9402

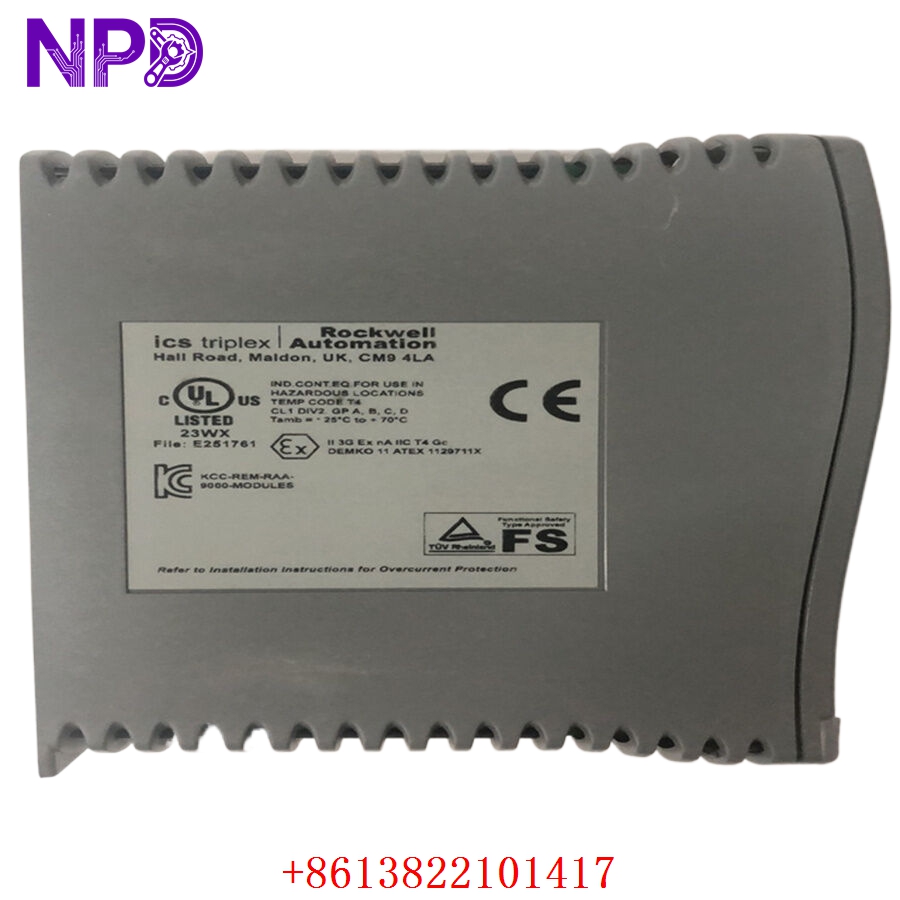

TRIPLEX ICS T9402

TRIPLEX ICS T9402

Application Scenarios & Pain Points

The T9402 usually lives inside systems where failure is not merely inconvenient.

It’s dangerous.

Typical environments include:

• Emergency shutdown systems (ESD)
• Burner management systems (BMS)
• Turbine protection
• High-pressure chemical processing
• Offshore oil and gas platforms

And honestly… safety-system troubleshooting feels very different from normal PLC maintenance.

Why?

Because you cannot simply “try things and see what happens.”

One incorrect bypass operation can:

• trip an entire plant,
• disable a protection layer,
• or create unsafe operating conditions.

I’ve seen maintenance teams spend six hours verifying one input signal because nobody wanted to risk an unintended shutdown.

That caution is justified.

Typical Application Scenarios

1. Petrochemical Plants – Emergency Shutdown Systems
   Monitors critical field shutdown inputs such as pressure trips and fire detection.
2. Power Generation – Turbine Protection Systems
   Processes overspeed trips, lubrication alarms, and vibration shutdown signals.
3. Offshore Platforms – Process Safety Systems
   Handles redundant safety monitoring in hazardous environments.
4. Refinery Operations – Burner Management Systems
   Verifies flame status, purge sequences, and fuel safety interlocks.
5. LNG Facilities – Cryogenic Safety Protection
   Supports fault-tolerant shutdown logic in continuous-process operations.

Real Project Example – “The Shutdown Signal Wouldn’t Clear”

A refinery experienced an intermittent shutdown permissive fault on a compressor train.

Symptoms:

• Input status flickered randomly
• Compressor restart became impossible
• Operators suspected a failed field switch

Field technicians replaced:

• pressure switches,
• terminal blocks,
• and even the marshalling relay.

Problem remained.

Eventually, engineers traced the issue to one channel on a T9402 module that intermittently failed under thermal load.

Interesting part?

The module diagnostics did not immediately declare hard failure because TMR voting masked the unstable channel temporarily.

That’s one reason TMR systems are both powerful and tricky:
they continue operating even while one channel quietly degrades.

After replacing the module and validating input voting behavior:

• shutdown permissive stabilized,
• nuisance trips disappeared,
• compressor returned to normal operation.

The plant later added thermal inspection to quarterly preventive maintenance.

Good decision.

Compatible Replacement Models

Practical recommendation:

For existing Trusted TMR systems, staying within the Trusted platform usually reduces validation workload dramatically.

Safety migrations consume far more engineering time than many managers initially expect.
