Description
- Model: ICS Triplex T9431
- Brand: ICS Triplex (Rockwell Automation)
- Series: Trusted™ Triple Modular Redundant (TMR) System
- Core Function: 40-channel 24 V DC Digital Input for high-integrity safety applications
- Product Type: TMR Digital Input Module
- Key Specs: 40 Isolated Channels | TMR Fault Tolerant Architecture | Sequence of Events (SOE) Support
- Nominal Input Voltage: 24 V DC
- Input Channels: 40 (Triple Modular Redundant)
- Input Threshold: 11 V DC (Off to On transition)
- Sequence of Events (SOE): 1 ms resolution across all channels
- Isolation: 2.5 kV DC (Field-to-Logic)
- Backplane Interface circuit board: Trusted™ Power Bus & Communications Bus
- Diagnostics: Comprehensive self-test with “Line Monitoring” capabilities
- Power Consumption: 15 W (Typical)
- Hot Swap Support: Yes (Fully supported in Trusted™ chassis)
- Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)

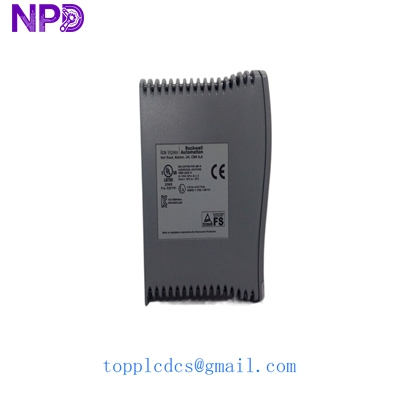

Rockwell ICS TRIPLEX T9431
Application Scenarios & Pain Points
In the world of functional safety (SIL 3), the T9431 is a heavyweight. It doesn’t just “read a signal”—it processes it through three independent slices to ensure a single component failure cannot cause a spurious trip or, worse, a “fail-to-danger” scenario. For offshore platforms and refineries, the Trusted™ system is the last line of defense.
Typical Application Scenarios:
- Emergency Shutdown Systems (ESD) Monitoring manual call points, gas detectors, and process switches where 100% availability is required.
- Fire and Gas (F&G) Systems High-density monitoring of flame detectors and smoke sensors with millisecond-accurate SOE logging.
- Burner Management Systems (BMS) Interfacing with limit switches and flame scanners to ensure safe boiler and furnace operations.
The “False Alarm” Case:
A refinery in the Middle East was plagued by “Spurious Trips” on their compressor skid. Every time a specific relay chattered, the old non-TMR system would shut down the entire unit. By migrating the critical interlocks to the T9431, the system’s voting logic filtered out the transient noise.
When the T9431’s internal diagnostics actually flagged a genuine “Channel Fault” on Slice B, the module stayed online and kept the plant running using Slices A and C. The maintenance team swapped the module “hot” during a live shift, avoiding a $400,000 production loss that a full shutdown would have caused.

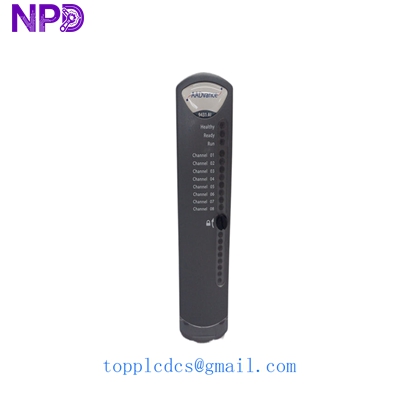

Rockwell ICS TRIPLEX T9431
Technical Pitfalls & Field Advice
❗ Engineering Warning: Termination Assembly Matching The T9431 is only as good as the Field Termination Assembly (FTA) it’s connected to. I’ve seen engineers try to use a T9401 cable on a T9431 module—it won’t seat properly and could damage the backplane pins. Always verify your FTA model (e.g., T8800 or T8830) before commissioning.
Common Troubleshooting Steps:
| Symptom | Potential Cause | Module Related? | Action |
| “Health” LED Flashing Amber | Internal Voter Mismatch | ✅ High | Check diagnostic logs; Slice failure detected. |
| Input Stuck at “0” | Field Fuse Blown on FTA | ❌ Low | Check the fuse on the Termination Assembly. |
| Communication Fault | Backplane Connector Dust | ⚠️ Medium | Reseat module; check for bent pins on the rack. |
The “Old-Timer” Advice: “If you’re doing a Hot Swap on a TMR system like this, give the system time to ‘sync’ the new module. Don’t just yank the old one and slam the new one in. Watch the LEDs. Wait for the ‘Active’ light to stabilize. Also, check your SOE configuration—if you haven’t assigned the correct buffer size, you’ll lose your event data the moment things get hairy.”

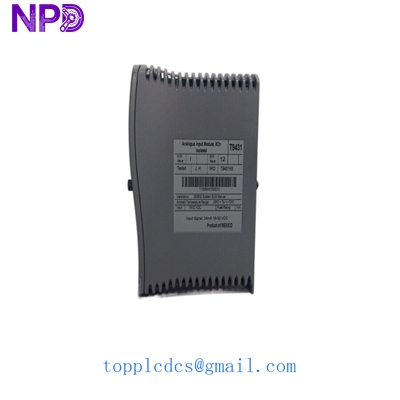

Rockwell ICS TRIPLEX T9431
Quality Control & SOP Transparency
Because the T9431 is a safety-critical component, our testing is exhaustive:
- Chassis Integrity Test: We install the module in a Trusted™ T8110B Controller Chassis. We verify that the T8100 Processor recognizes the T9431 in the correct slot.
- TMR Slice Verification: We force faults on individual slices to ensure the TMR voting logic remains functional and correctly reports the diagnostic alarm.
- Full-Channel Injection: We apply 24 V DC to all 40 channels simultaneously and verify the logic state in the Trusted™ Toolset software.
- SOE Timing Check: We pulse the inputs at high speed to verify the 1 ms Sequence of Events timestamping is accurate.
- Thermal Stability: The module is run in a test rack for 24 hours to ensure no “lazy” opto-isolators fail under load.
