Description
The ICS Triplex T9451 (now part of Rockwell Automation) is a high-reliability, 8-channel digital output module designed for the AADvance control system. It is engineered for functional safety and critical control applications, featuring built-in fault tolerance and comprehensive line monitoring to ensure the safe operation of field devices.
Product Parameters (Datasheet)
- Model Number: T9451
- Number of Channels: 8 independent digital output channels
- Output Voltage: Nominal 24V DC (Range: 18V to 32V DC)
- Output Current: 1A continuous per channel (Maximum 8A total per module @ 60°C)
- Safety Rating: SIL 3 (IEC 61508)
- Module Power Dissipation: 3.0 W (Typical)
- Response Time: Optimized for high-speed safety shutdowns
- Monitoring Features: Voltage and load current monitoring, short-circuit, and open-circuit detection on each channel
- Redundancy: Supports dual-redundant power feeds and fault-tolerant “stuck-on” protection

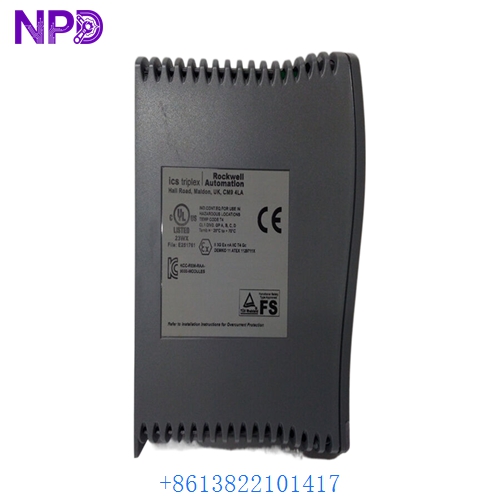

ICS Triplex T9451

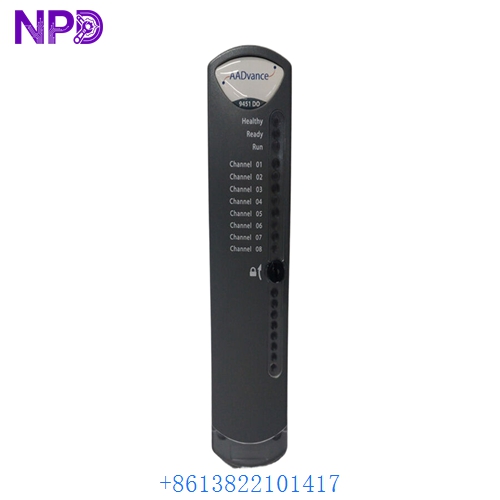

ICS Triplex T9451
ICS Triplex T9451
Country of Origin
This module is typically manufactured in the United Kingdom or the USA, reflecting the heritage of ICS Triplex (UK-founded) and its integration into Rockwell Automation’s safety business.
Application Fields
The T9451 is a staple in Safety Instrumented Systems (SIS) and high-availability automation:
- Emergency Shutdown (ESD): Controlling critical isolation valves and trip solenoids in oil and gas refineries.
- Fire & Gas (F&G) Systems: Activating alarms, beacons, and fire suppression releases.
- Burner Management Systems (BMS): Managing the safe start-up and shutdown of industrial boilers and furnaces.
- Chemical Processing: Interfacing with final control elements in high-risk batch and continuous production lines.
Product Usage Instructions
- System Integration: Plug the T9451 into the AADvance base unit (backplane). Use the AADvance Workbench software to configure the module’s safety parameters and channel logic.
- Field Wiring: Connect field devices to the corresponding terminal blocks. Use shielded cables for high-EMI environments. Each channel provides reverse current protection to prevent field faults from damaging the internal logic.
- Line Monitoring: Ensure the minimum load current (typically 10mA) is maintained for effective line monitoring. If a channel is unused, the line test feature can be disabled in the software to prevent false “Open Circuit” alarms.
- Redundancy Setup: For fault-tolerant configurations, two T9451 modules can be used in a dual-redundant arrangement. The AADvance architecture automatically handles the 1oo2D (one out of two with diagnostics) logic.
- Diagnostics: Regularly monitor the front-panel LEDs. A solid green RUN LED indicates healthy operation; flashing or red LEDs indicate channel faults or internal self-test failures.
Product Technical Description
The T9451 is designed with a “Fail-Safe” philosophy. Technically, the module utilizes a dual-switch architecture for each output channel to ensure that a single component failure cannot lead to a “stuck-on” condition, which is critical for safety-related shutdowns. It continuously performs self-checking diagnostics (with a self-test interval typically < 30 minutes) to verify the integrity of the output switches and the command data path. The module’s galvanic isolation protects the central processor from external field transients and surges.
Q&A (Common Questions)
Q: Can I use the T9451 for pulse-width modulation (PWM) control? A: No. The T9451 is designed for discrete (On/Off) safety switching. For PWM requirements, a dedicated analog output or high-speed counter module is usually required.
Q: What happens if the module detects a short circuit? A: The module’s internal protection will automatically deactivate the affected channel to prevent hardware damage and signal a fault to the controller and HMI.
Q: Is this module compatible with legacy Trusted® TMR systems? A: No. The T9451 is specifically for the AADvance system architecture. For Trusted® systems, you would typically use the T8451 or similar T8000-series modules.
Q: Does it support hot-swapping? A: Yes. In redundant AADvance configurations, a faulty T9451 can be replaced while the system is energized without interrupting the process.
Similar Model Recommendations
- ICS Triplex T9402 (16-channel Digital Input Module)
- ICS Triplex T9432 (16-channel Analog Input Module)
- ICS Triplex T9481 (Analog Output Module)
- ICS Triplex T9110 (AADvance Processor Module)
- ICS Triplex T9310 (Expansion Cable/Interface)
