Description
The ICS Triplex T9451 is a high-integrity 24 VDC digital output module specifically designed for the Trusted™ TMR (Triple Modular Redundant) safety system. It features 40 isolated output channels, engineered to provide the highest level of availability and fault tolerance for safety-critical applications. By utilizing a TMR architecture, the T9451 ensures that a single hardware failure does not compromise the safety function or lead to a nuisance trip, making it an essential component for SIL 3 rated environments.
Technical Specifications and Datasheet
- Product Model: T9451
- Manufacturer: ICS Triplex (Rockwell Automation)
- System Series: Trusted™ TMR
- Module Type: Digital Output (DO)
- Number of Channels: 40 Channels (Isolated)
- Safety Integrity Level: SIL 3
- Operating Voltage: 24 VDC (Nominal)
- Max Output Current: 0.5 A per channel
- Dimensions: 300 mm x 30 mm x 260 mm
- Weight: 1.25 kg
- Country of Origin: United Kingdom
- Diagnostics: Comprehensive line monitoring for short circuits and open circuits

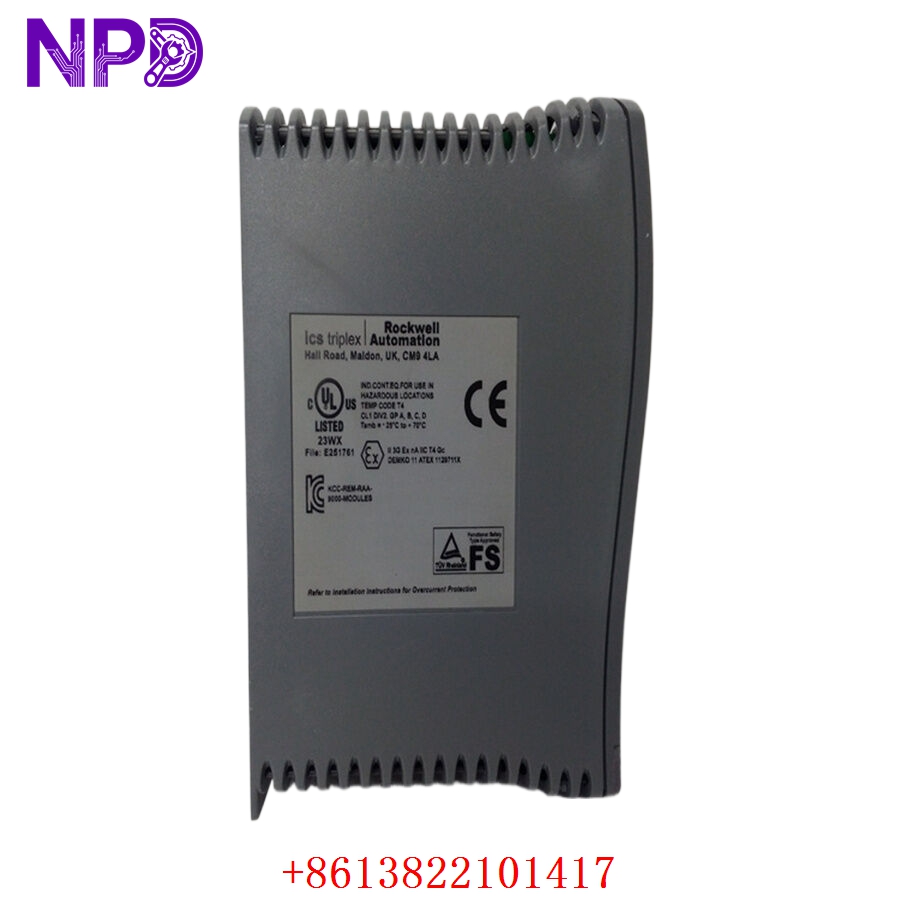

ICS TRIPLEX T9451

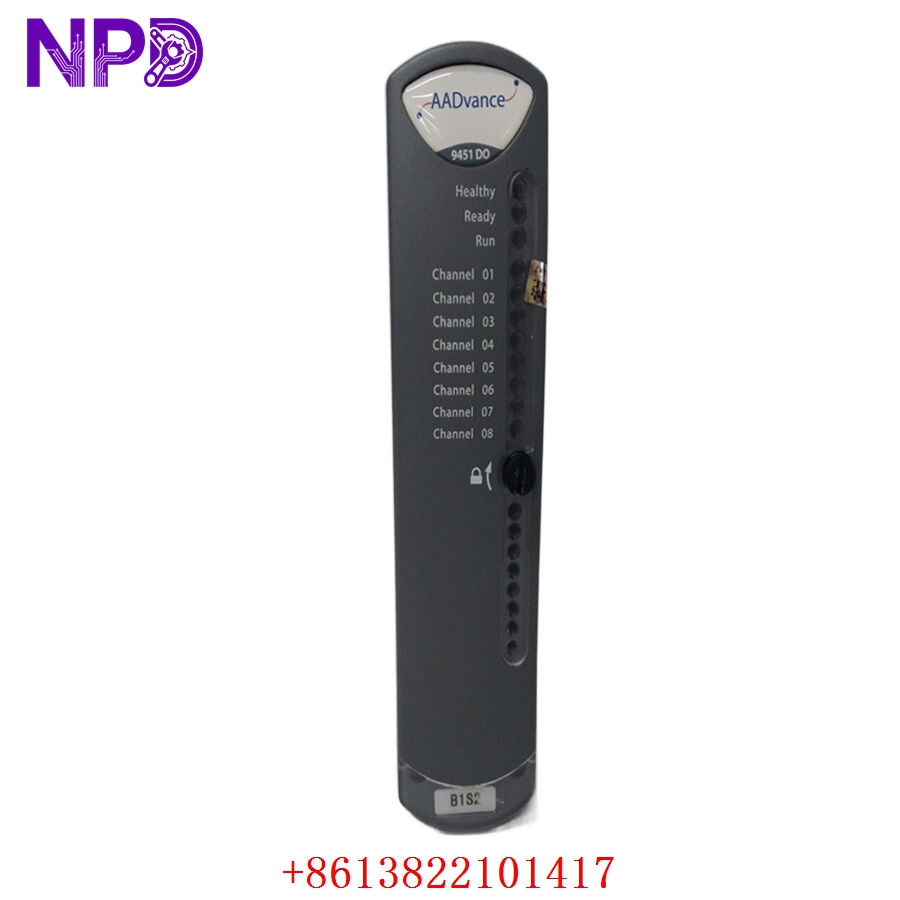

ICS TRIPLEX T9451
ICS TRIPLEX T9451
Application Areas
The T9451 is used globally in industries where “fail-safe” is not just a requirement but a necessity:
- Emergency Shutdown (ESD): Controlling isolation valves and critical power disconnects in oil refineries.
- Fire & Gas (F&G): Activating fire suppression systems and visual/audible alarms.
- Burner Management (BMS): Safe sequencing of fuel valves for large-scale industrial boilers.
- Nuclear Power: Safety actuation loops requiring extreme reliability and redundancy.
Product Instructions
The T9451 module must be installed in a Trusted™ Controller Chassis. Ensure that the chassis power is compatible with the module’s 24 VDC requirements. The module supports hot-standby and can be replaced while the system is under power (hot-swapping) without interrupting the process, provided the system is configured for high availability. Line monitoring features are built-in; however, they must be configured within the Trusted™ Toolset software to detect field-side faults effectively. The front panel features a multi-color LED display for each channel, where green indicates an active output and red indicates a detected fault or discrepancy in the TMR voting logic.
Frequently Asked Questions (Q&A)
Q: What does “TMR” mean for this specific module? A: Triple Modular Redundancy means the module contains three independent slices of internal logic that “vote” on the output state. This allows the module to identify and mask a failure in any one slice without affecting the field device.
Q: Can the T9451 monitor for a broken wire to the field device? A: Yes, the module includes sophisticated line monitoring that can detect open-circuit and short-circuit conditions even when the output is in the “off” state, provided the appropriate threshold resistors are used.
Q: Is this module compatible with older ICS Triplex Regent systems? A: No, the T9451 is specifically designed for the Trusted™ platform. While both systems utilize TMR principles, their hardware architectures and backplanes are not interchangeable.
