Description
- Model: ICS Triplex T9451
- Brand: Rockwell Automation / ICS Triplex
- Series: Trusted TMR (Triple Modular Redundant)
- Core Function: High-integrity monitoring of 32 digital input channels for safety-critical loops.
- Product Type: 24 V DC Digital Input Module (32-Channel)
- Key Specs: SIL 3 Rated 24 V DC Nominal TMR Voting (2-out-of-3)
ICS TRIPLEX T9451
SEO Title Options
- ICS Triplex T9451 Trusted TMR 24 V DC Digital Input Module In-Stock
- Rockwell ICS Triplex T9451 32-Channel TMR Input Safety System Spare
- T9451 Trusted Module SIL 3 Certified Digital Input 1-Year Warranty
- ICS Triplex T9451 (9451) Emergency Replacement for ESD/F&G Systems Tested
- Trusted T9451 Module Triple Modular Redundant Input Interface Technical Specs
Product Core Brief
- Model: ICS Triplex T9451
- Brand: Rockwell Automation / ICS Triplex
- Series: Trusted TMR (Triple Modular Redundant)
- Core Function: High-integrity monitoring of 32 digital input channels for safety-critical loops.
- Product Type: 24 V DC Digital Input Module (32-Channel)
- Key Specs: SIL 3 Rated | 24 V DC Nominal | TMR Voting (2-out-of-3)
- Supply Status: ✅ In-Stock (New Surplus & Refurbished available)
- Stock: 4 units (Verified via ICS Triplex Diagnostic Bench)
- Warranty: 12 Months
- Ship From: Xiamen, China (Express shipping to US/EU/ME)

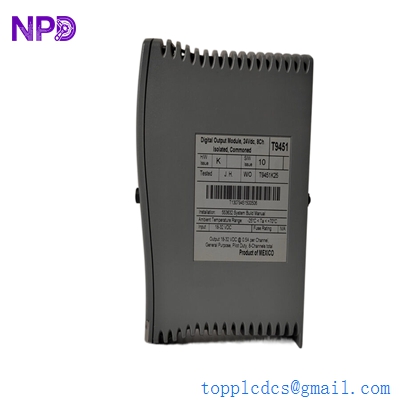

ICS TRIPLEX T9451
Key Technical Specifications
- Number of Channels: 32 isolated channels
- Input Architecture: Triple Modular Redundant (TMR)
- Input Voltage Range: 18 V DC to 32 V DC
- “On” State Voltage: > 15 V DC
- “Off” State Voltage: < 5 V DC
- Input Filtering: 1 ms to 250 ms (Software configurable)
- Safety Integrity Level: SIL 3 (IEC 61508)
- Sequence of Events (SOE): 1 ms resolution across all channels
- Power Dissipation: 20 W (Full load)
- Self-Test Frequency: Continuous (checks for stuck-at faults and cross-talk)
Application Scenarios & Engineering Insights
The T9451 is the “eyes” of the Trusted system. In a TMR setup, each of the 32 field inputs is physically split and sent to three independent input sub-modules. The system then performs a majority vote. If a field switch closes, all three internal slices must agree. If one slice fails, the T9451 logs a maintenance alarm but keeps the process running. This eliminates the “spurious trip” problem common in single-channel or dual-channel systems.
Typical Application Scenarios:
- Emergency Shutdown (ESD) Inputs Monitoring manual E-stop buttons, high-pressure switches, or fire-safe valve positions in hazardous areas.
- Fire and Gas (F&G) Monitoring Taking signals from smoke, heat, or flame detectors. The 1 ms SOE (Sequence of Events) capability is vital here for post-incident “black box” analysis.
- Turbo-Machinery Protection Monitoring auxiliary contacts on large pumps and compressors to ensure lubrication and cooling systems are active before startup.
Case Study: The “Dirty Contact” Dilemma
Background: A large LNG (Liquefied Natural Gas) terminal used a Trusted system. A critical pressure switch contact developed high resistance due to long-term exposure to salt spray, causing the signal level to hover around 12 V DC.
The Problem: In a standard PLC, this indeterminate voltage might cause the system to “chatter” between ON and OFF states, potentially triggering a total plant shutdown.
The Solution: The T9451 module captured this anomaly. Because the module has three independent monitoring circuits, their thresholds for “On/Off” vary slightly. The system identified that one circuit’s reading disagreed with the other two and immediately reported a “Voter Discrepancy” warning.
The Result:
- Production Continuity: The system did not trip because the 2-out-of-3 logic maintained the correct state, allowing LNG loading to continue.
- Precision Maintenance: Technicians located the specific contact based on the diagnostic report and cleaned it without stopping the process.
- Verdict: Without TMR redundancy, this single dirty contact would have cost millions in downtime.

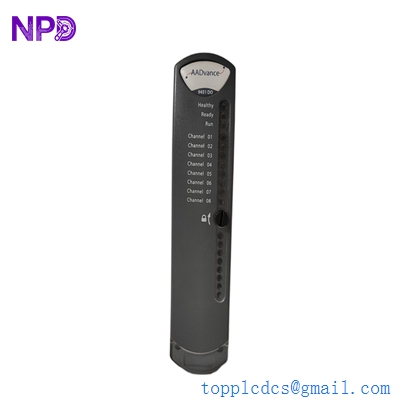

ICS TRIPLEX T9451
Compatible Replacement Models
The Trusted T9451 is highly specialized. Do not confuse it with the T9401 or T9431.
| Model | Compatibility | Key Differences | Action Required |
| T9451 | (Current) | Standard 32-Ch 24V DC Input | – |
| T9401 | ⚠️ Partial | Older version; slower SOE resolution | Check project hardware definition |
| T9451C | ✅ Direct | Conformal Coated version | Standard T9451 works in clean environments |
| T8451 | ❌ Incompatible | This is an Output/Controller module | DO NOT insert into an Input slot |
Wiring Note: The T9451 requires a specific Field Termination Assembly (FTA). If you are upgrading from an older rack, ensure your FTA and the multi-core cable (e.g., T8800 series) are compatible with the current module revision.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Part Relevance | Quick Check | Action |
| Healthy LED Off | Internal hardware failure | ✅ High | Re-seat the module | Replace if reset fails |
| Ready LED Flashing | Data sync or Firmware mismatch | ⚠️ Medium | Check ISaGRAF diagnostics | Wait 5 mins; check firmware version |
| Active LED Off | Standby mode / Not scanned | ⚠️ Medium | Check if slot is assigned in logic | Verify project configuration |
| Field Fault (Specific Ch) | External wiring open/short | ❌ Low | Measure voltage at FTA terminals | Check sensor and field cable |
| Voter Discrepancy Alarm | One of three internal slices failed | ✅ High | Read internal diagnostic codes | Replace module as soon as possible |
❗ Engineering Pitfall: Firmware Revision Mismatch
To be honest, the biggest headache with ICS Triplex modules is firmware compatibility. If you use a 2024 manufactured T9451 to replace a 2010 unit, the hardware looks identical, but if the firmware is too new, the older Main Processor (T8110B) may refuse to communicate with it.
- The Fix: Before pulling the old module, record its Firmware Revision via software.
- The Warning: If the “Ready” light flashes indefinitely on a new module, you likely need to downgrade the module firmware or update your system baseline.
