Description
The GE IS220PAOCH1A, identified by the group part number 363A4940CSP5, is a high-performance Analog Output pack manufactured by General Electric for the Mark VIe Distributed Control System (DCS). This module interfaces with a matching terminal board to control industrial field devices such as servo valves, actuators, and variable speed drives. The IS220PAOCH1A converts digital control signals from the Mark VIe controller into precise analog output currents, supporting standard 0-20 mA and 4-20 mA configurations. With its dual Ethernet connectivity and advanced internal diagnostics, it provides high reliability and fault tolerance required for critical turbine control and industrial automation applications.
To browse our extensive inventory of genuine control components and optimize your system infrastructure, visit GE Automation Parts and Solutions.
Technical Specifications
- Manufacturer: General Electric (GE)
- Series: Mark VIe Speedtronic Control System
- Model Keyword: GE IS220PAOCH1A Analog Output Pack
- Alternate Part Number: 363A4940CSP5
- Dimensions: 16.5 cm x 11.2 cm x 4.5 cm
- Weight: 0.62 kg (1.37 lbs)
- Country of Origin: United States (USA)
- Number of Channels: 8 Analog Output Channels
- Output Signal Range: 0 to 20 mA or 4 to 20 mA (Configurable)
- Interface: Dual RJ45 Ethernet ports for IONet redundancy
- Operating Temperature: -30 to 65°C (-22 to 149°F)

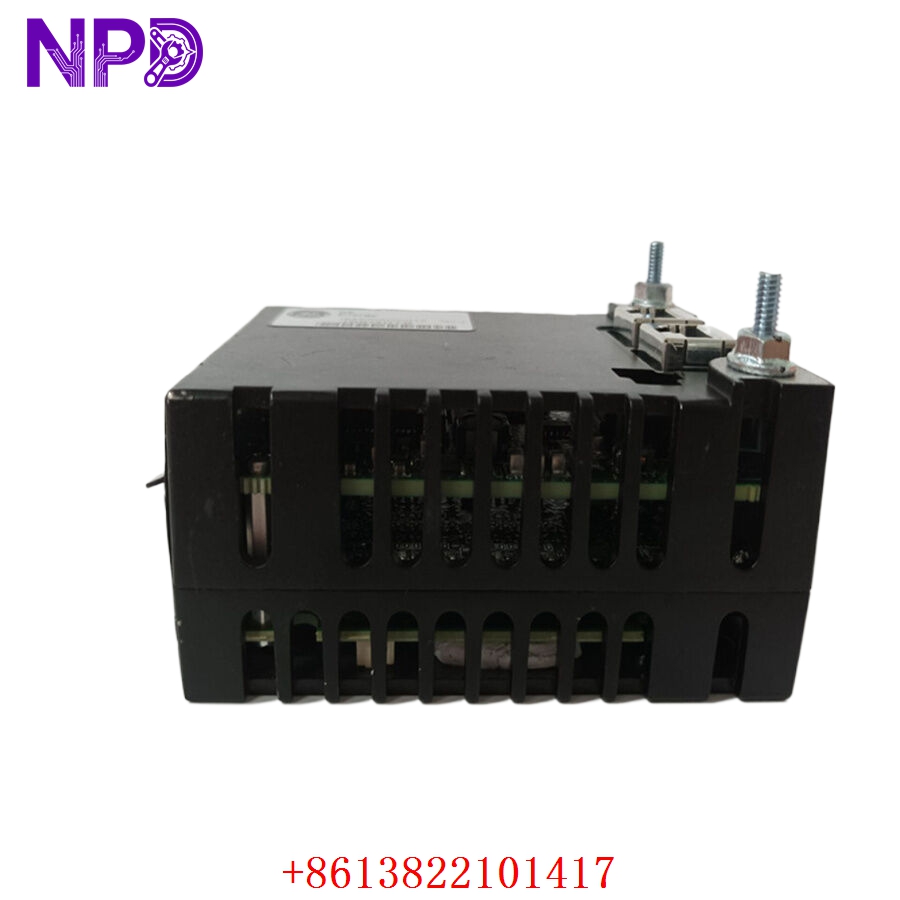

GE 363A4940CSP5 IS220PAOCH1A

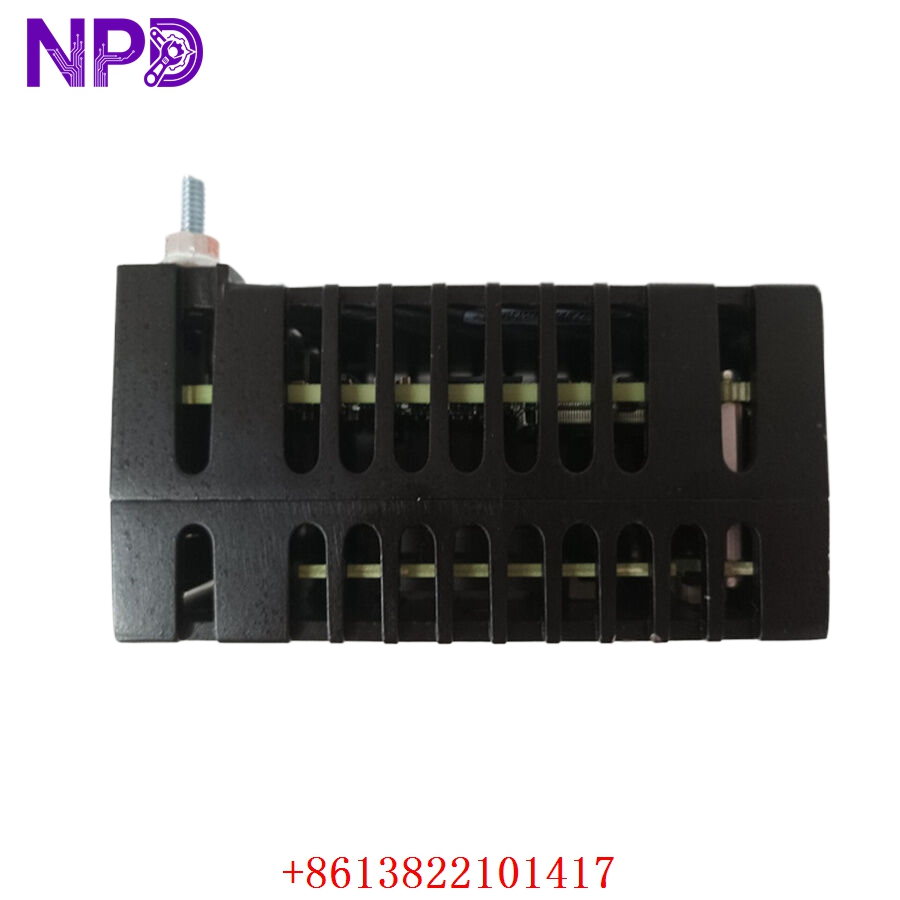

GE 363A4940CSP5 IS220PAOCH1A

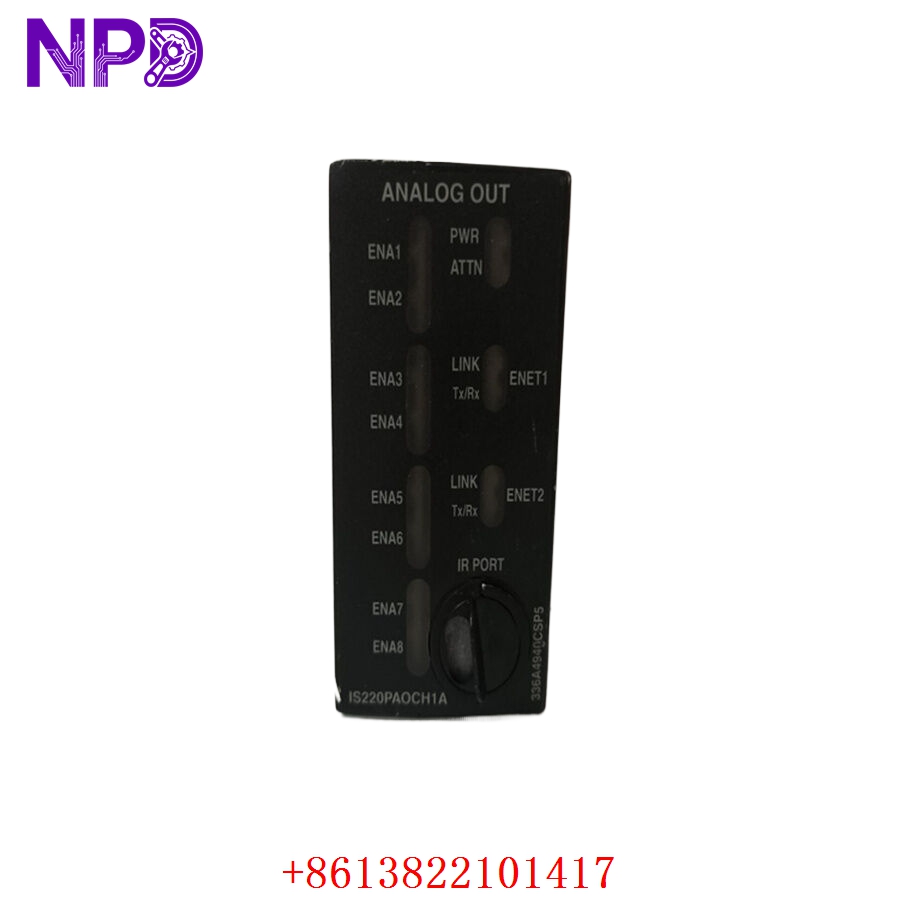

GE 363A4940CSP5 IS220PAOCH1A

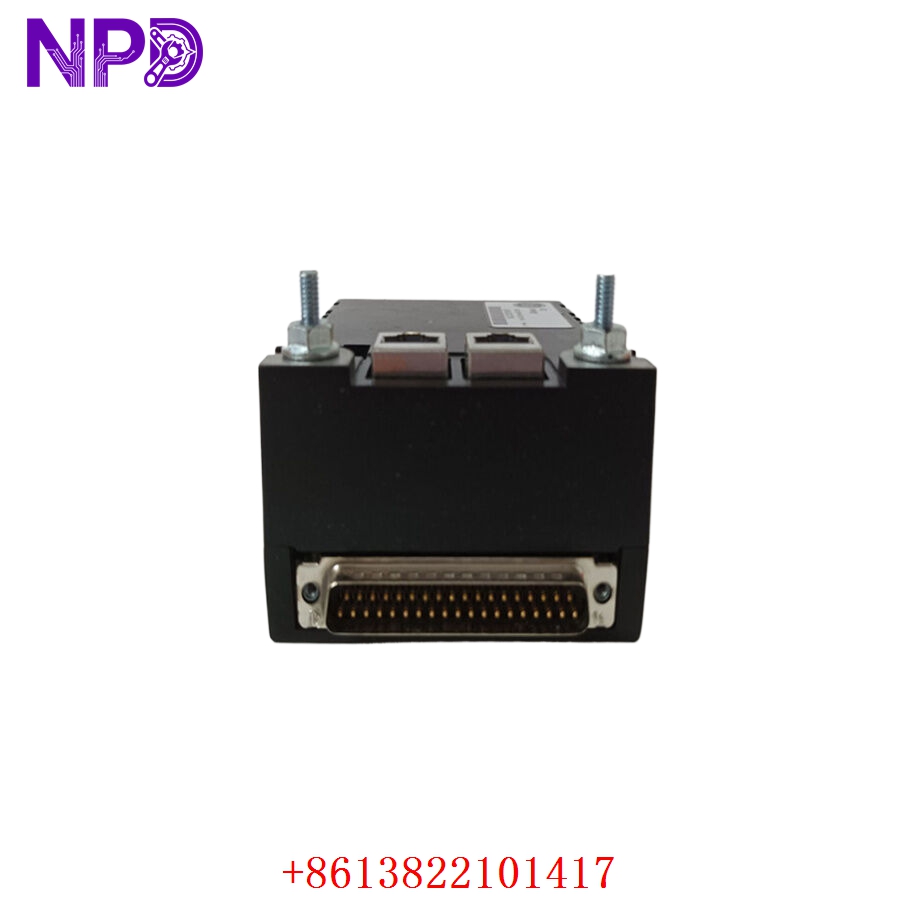

GE 363A4940CSP5 IS220PAOCH1A
Application Fields
The IS220PAOCH1A module is primarily utilized in large-scale industrial infrastructure demanding high reliability and precise modulation. Key application fields include:
- Turbine Control Systems: Regulating fuel valves, guide vanes, and steam control valves in power generation plants.
- Oil and Gas Refining: Controlling proportional control valves and actuators in hazardous processing areas.
- Heavy Industrial Machinery: Interfacing with variable frequency drives (VFDs) and hydraulic positioning systems.
- Petrochemical Production: Managing precise chemical dosing pumps and mass flow controllers.
Product Installation and Usage Instructions
- Safety Procedures: Ensure the local system power environment conforms to standard operating safety guidelines. Wear a properly grounded Electrostatic Discharge (ESD) wrist strap before unboxing or handling the module.
- Mounting to the Terminal Board: Align the IS220PAOCH1A pack with the mounting studs on the compatible Mark VIe terminal board (such as the TBAOH1C or TBAOH1D). Press firmly to engage the internal D-sub connector.
- Securing the Hardware: Tighten the retaining fasteners on the sides of the module housing to establish a reliable physical and ground connection.
- Network Integration: Connect the two IONet Ethernet cables to the RJ45 ports on the module to establish redundant communication with the control network controllers.
- Configuration and Calibration: Power up the rack. Use the ToolboxST software application to configure channel parameters, specify output ranges (4-20 mA), and perform any required loop calibrations.
Frequently Asked Questions (Q&A)
Q: What is the relation between the numbers IS220PAOCH1A and 363A4940CSP5? A: IS220PAOCH1A is the functional model number of the analog output control pack, while 363A4940CSP5 represents the specific assembly or catalog number assigned by GE. Both refer to the exact same physical unit.
Q: Does the IS220PAOCH1A support redundant network architectures? A: Yes. It features dual redundant Ethernet ports designed to connect directly to the Mark VIe IONet network, ensuring uninterrupted signal transmission even if one network path fails.
Q: Can this module be replaced while the system is powered? A: The Mark VIe architecture allows for “hot-replacement” of specific I/O packs under strict maintenance conditions, provided the corresponding control loop is safely isolated or bypassed in the software control logic first.
Q: What do the LED indicators on the front panel mean? A: The module contains LEDs for “Power” (green when internal power is normal), “IONet” (flashing during active network traffic), and “Fault” (solid red when an internal hardware error or open-loop failure is detected).
