Description
Product Parameters
- Model Number: UNISAB III (4214-001 / 4209-001)
- Manufacturer: Johnson Controls / Sabroe
- Part Category: Display and Control Interface Unit
- Display Type: High-resolution graphical LCD with backlight
- Supply Voltage: 24V DC (nominal)
- Communication Ports: CAN-bus, RS-485, and Ethernet connectivity
- Supported Equipment: Reciprocating and screw compressors (SAB, SMC, CMO series)
- Operating Temperature: -10°C to +55°C
- Protection Class: IP65 (front panel) for engine room environments
- User Interface: Tactile keypad with dedicated function keys and navigation arrows

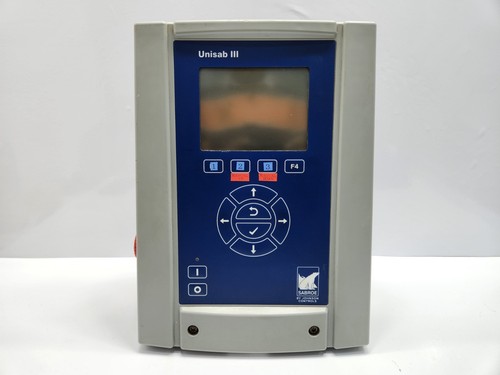

The Johnson Controls UNISAB III 4214-001 serves as the primary human-machine interface and intelligent controller for industrial refrigeration systems, integrating both the display (4209-001) and the processing logic. It is designed to optimize compressor performance through advanced sequencing and real-time monitoring, ensuring maximum energy efficiency and system safety in demanding cooling applications.
Differences from Similar Models
The UNISAB III platform represents a significant evolution over previous generations, with specific distinctions for the 4214-001 hardware:
- Hardware Integration: Unlike the older UNISAB II, which utilized separate modules for many logic functions, the UNISAB III 4214-001 integrates communication and control into a more compact, singular unit with superior processing power.
- Display Clarity: The 4209-001 display offers a higher pixel density and better contrast ratios than the 4202 series used in earlier versions, allowing for more detailed trend logging and graphical overviews.
- Connectivity: This specific version supports modern protocols like Modbus TCP and Profibus as standard, whereas legacy units often required external gateways or specialized expansion cards.
- Software Compatibility: The 4214-001 is designed to support the latest Sabroe firmware updates, enabling features like multi-compressor sequencing that are not stable on older hardware revisions.
Product Operation Tips
- Firmware Synchronization: When replacing a display or control unit, ensure that the firmware version on the new hardware matches the existing compressor settings to prevent configuration errors.
- Cleaning Protocol: Clean the front membrane of the 4209-001 using only a damp, soft cloth. Avoid harsh industrial solvents which can degrade the protective IP65 coating and cause the keys to become unresponsive.
- Backup Configuration: Use the integrated USB or serial port to export the compressor setpoints and calibration data before performing any system maintenance or hardware swaps.
- Voltage Stability: Ensure the 24V DC power supply is filtered and stable. Voltage drops during compressor startup can cause the UNISAB III to reboot, potentially leading to unnecessary system trips.
